PVC Fluted Decoration Panel Extrusion Line with 51/105 Conical Twin Screw Extruder 350KG/H Capacity and Automatic Saw Cutting
Product Details
| Screw And Barrel: | 38CrMoALA, Bi-metal | Extruder Type: | 51/105 CONICAL TWIN SCREW EXTRUDER |
|---|---|---|---|
| Powersupply: | 380V, 50Hz, 3 Phase | Machine Length: | 20m |
| Cuttingsystem: | Automatic Saw Cutting | Extrudertype: | Twin Screw Extruder |
| Contactor: | OR SCHNIDER | Capacity: | 350KG/H |
| Highlight |
PVC fluted panel extrusion line,stable haul-off PVC extrusion,precision cutting PVC profile line |
||
Product Description
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.

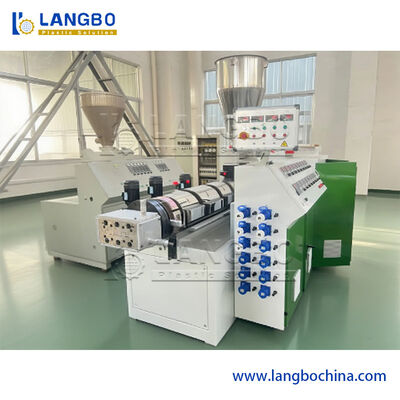

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.
| Model | LB180 | LB240 | LB300 | LB600 |
|---|---|---|---|---|
| Max Product Width (mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor Power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water (m³/h) | 5 | 7 | 7 | 10 |
| Compressor (m³/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total Length (m) | 18 | 22 | 22 | 25 |
Specially engineered screws designed for processing dry PVC powder blends. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.

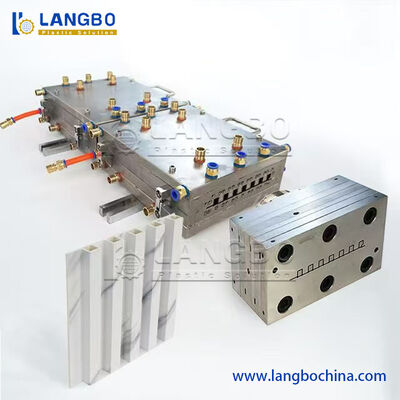

Double strand mold configuration for PVC trunking production with optimized channel design ensuring high flow performance and precision profile manufacturing.
Sturdy steel frame construction with SUS 304 stainless steel body. Multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling.

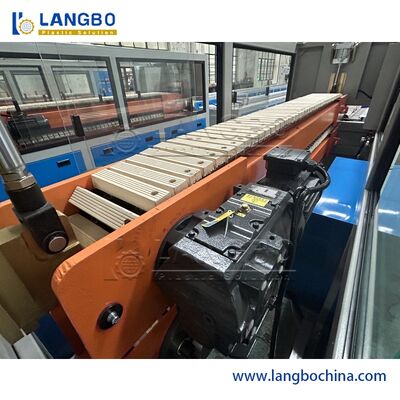

Even force distribution across caterpillars with high-quality rubber components. Pneumatic pressure system for easy adjustment and product protection. Customizable cutting options including swarfless and saw cutting methods.
