logo
Home /Products/PPR Pipe Extrusion Line/Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

1 SET
MOQ
Negotiable（USD EUR）
Price
Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Packing Method: Wooden And Film Packages
Capacity Range: 500kg/h
Motor: SIEMENS Brand
Voltage: 380V Or Customized
Screw Design: Single-screw
Heatingzones: 4 - 6 Zones
Machinelength: 10m - 15m
Pipediameterrange: 16mm - 110mm
Motor Brand: Siemens Original
Vacuum Tank: 8 Meters Long
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE/ISO
Model Number: LB-110
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WOKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

                                                           Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

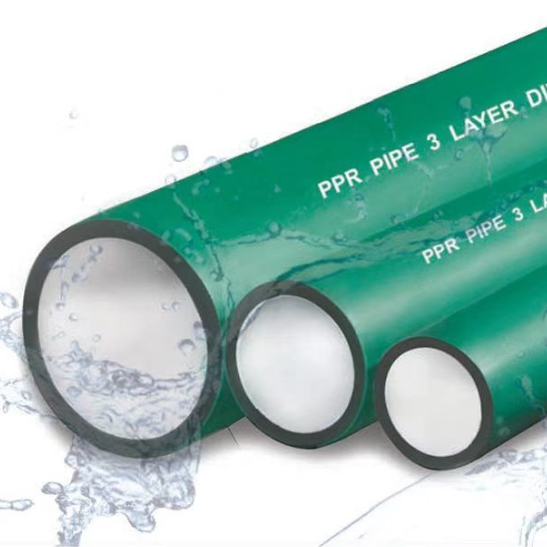

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

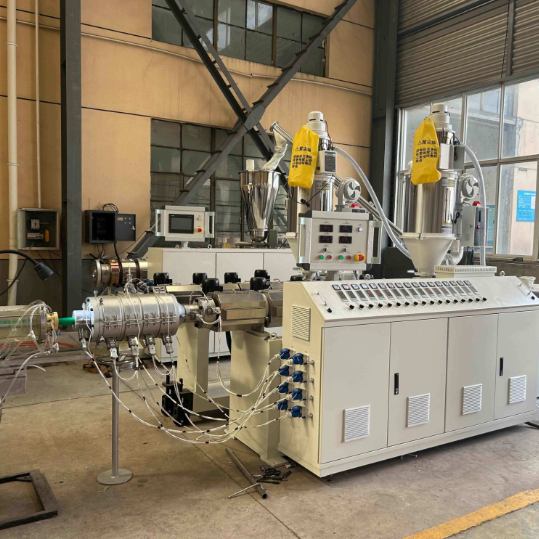

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

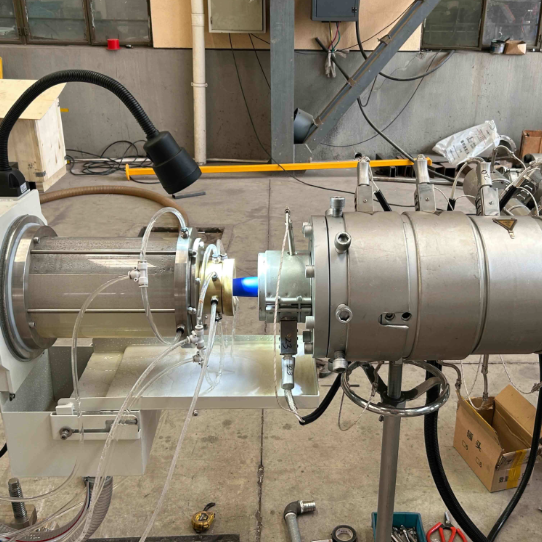

  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute

SPECIFICATIONS

                Model         Pipe diameter(mm)                   Extruder         Extruder power(kw)           Capacity(kg/hr)
                LB-63                 16-63                   SJ65/33                    55AC                150
                LB-110                 20-110                   SJ75/33                    75AC                180
