Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production
Product Details
| Type Of Socket: | U & R TYPE | Pipe Diameter: | 16~630mm |
|---|---|---|---|
| Main Motor Power: | 18.5-90kw | Machineweight: | 500kg - 1500kg |
| Extruder Model: | SJSZ63/132 | Bellingdiameterrange: | 20mm - 630mm |
| Controlsystem: | PLC Control With Touch Screen | Operationmode: | Automatic / Semi-automatic |
| Highlight |
stable pipe belling machine,quick mold change pipe beller,high efficiency pipe forming machine |
||
Product Description

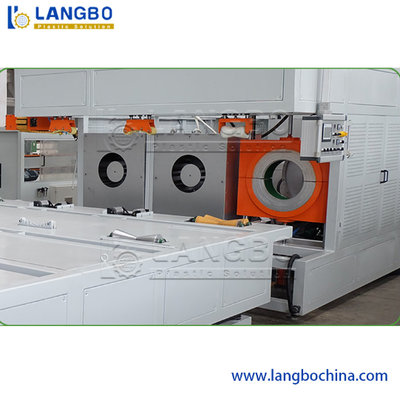

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor-controlled bracket height adjustment for easy operation. This system is configured with a material-receiving pulling device and related process interfaces that can work both in conjunction with the main machine or operate independently.
- Horizontal pipe movement ensures stable, accurate actions without damaging pipes
- Infrared ray heating system with double-heating furnace configuration
- Each heating furnace includes central heating furnace core
- Expansion tube head shaping method provides precise nozzle dimensions
- Control panel features conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
- Convenient tube expansion method selection with strong craft adaptability
- Main electric control components utilize imported parts for stable, reliable system performance
| Pipe Expand Range (Out Diameter) | Φ 20-630mm |
|---|---|
| Belling Type | R type & U type |
| Used Oil Label | No. 40/hydraulic oil |
| Quantity of Heater | 2 |
| Highest Temperature in Heater | 280°C |
| Gas Pressure | 0.6~0.8Mpa |
| Water Pressure | 0.2~0.3Mpa |
| Pipe Length | 3-6m |
| Center Height | 900mm± 50mm |
| Machine Dimensions | 8615x3125x2500mm |
After machine completion and before delivery, we will notify customers to check the trial run. Upon machine arrival at the customer's factory, we will send engineers to install the equipment, perform debugging, and provide comprehensive worker training as needed.
ZHANGJIAGANG LANGBO MACHINERY CO., LTD is located in Zhangjiagang city, conveniently accessible within 2 hours from Shanghai and 40 minutes from WUXI airport.
Our company specializes in supplying various plastic machinery including plastic washing recycling machines, plastic granulating machines, plastic pipe extrusion machines, and related auxiliary equipment. With over 20 years of experience and continuous development in this field, we have accumulated extensive expertise and professional technology in providing comprehensive solutions from technical design to extrusion manufacturing.
We are committed to offering customers high-quality machines at competitive prices with responsive after-sales service available at any time.
