PVC Profile Production Line | Extruder Calibration Cutting Unit

1 SET
MOQ
Negotiable(USD,EUR)
Price
PVC Profile Production Line | Extruder Calibration Cutting Unit
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Dieheadtype: Customizable Profile Die Head
Screw: Conical Twin Screw
Contactor: SIEMENS OR SCHNIDER
Extruder Model: SINGLE SCREW EXTRUDET
Screw Material: 38CrMoAlA Bi-metallic
Line Speed: 2-5 Meters/min
Panel Size: 300 Width, 6,7,8,9 Etc. Thickness
Hauloffmachine: Synchronous Belt Haul-off
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO9001
Model Number: LB-108
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
           PVC Profile Production Line | Extruder  Calibration Cutting Unit
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.
Production Capabilities

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Haul-off & Cutting Combination
  • Even force distribution across caterpillars with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods
Production Line Images

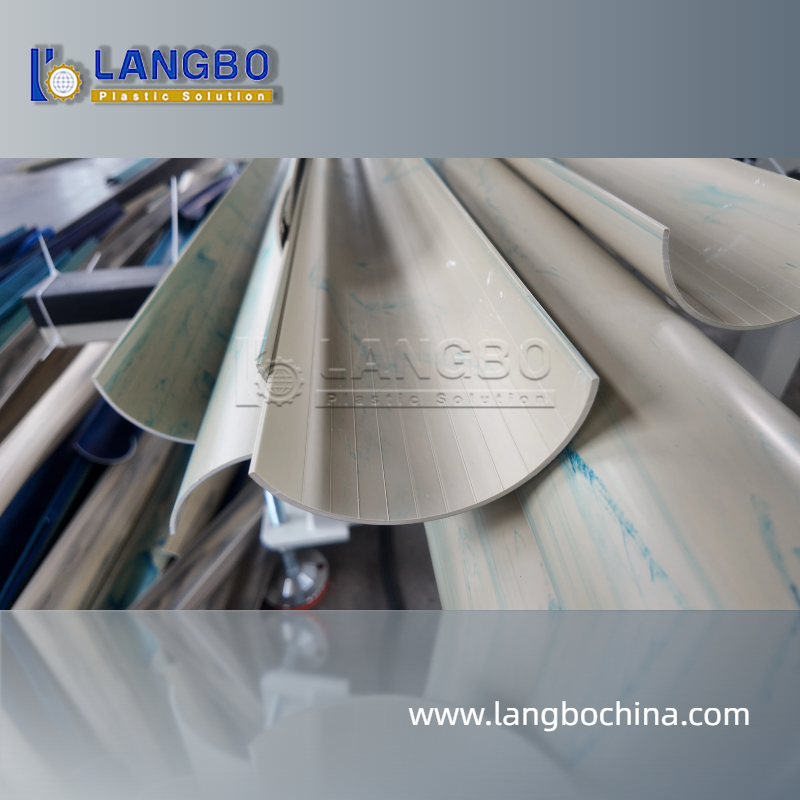

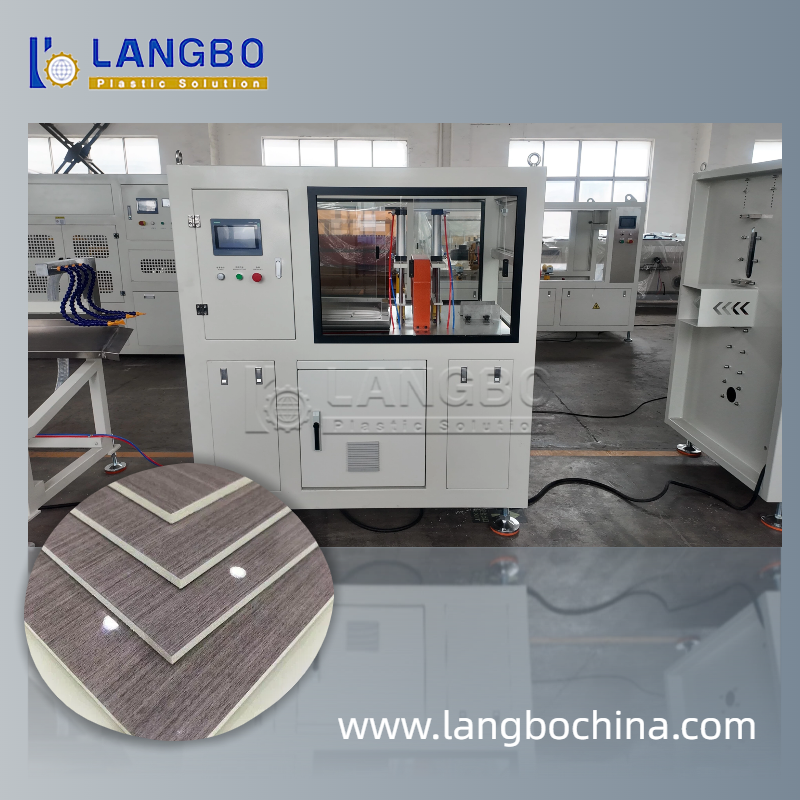

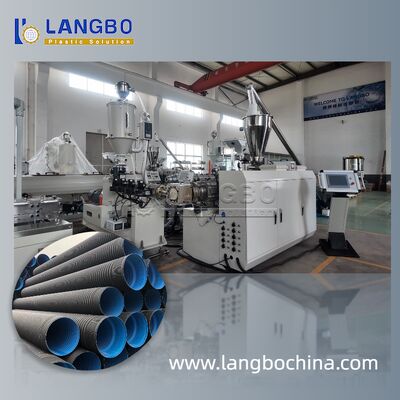

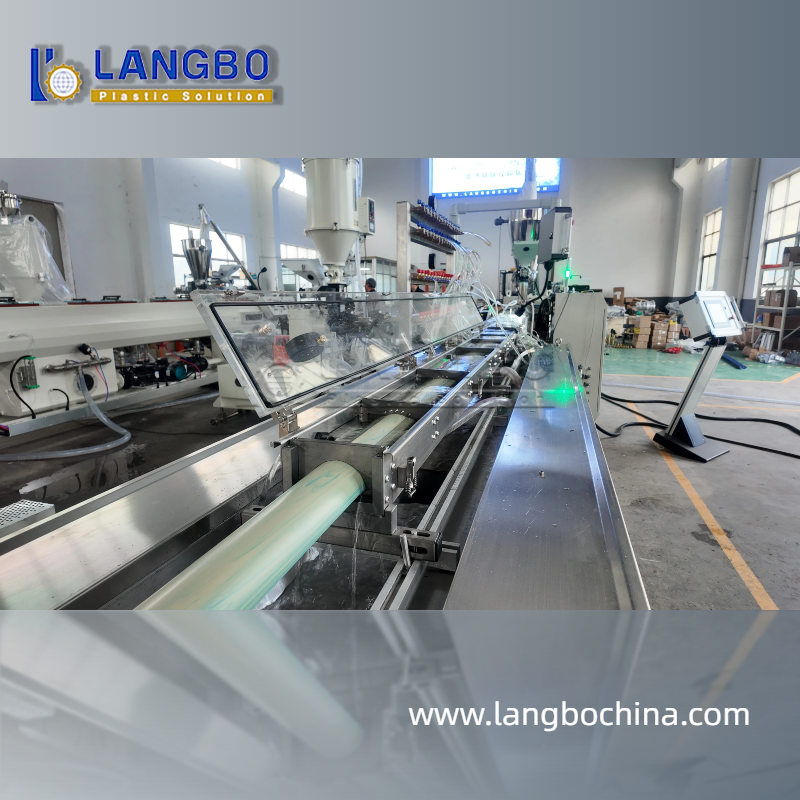

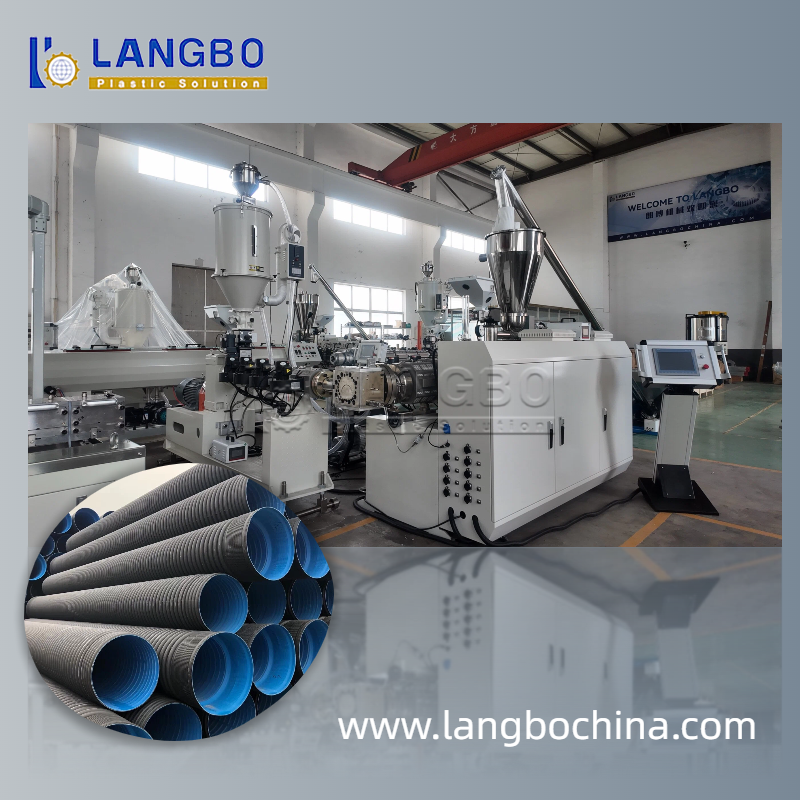

PVC Profile Production Line | Extruder Calibration Cutting Unit 0PVC Profile Production Line | Extruder Calibration Cutting Unit 1PVC Profile Production Line | Extruder Calibration Cutting Unit 2
