Pipe Belling Machine | Uniform Heating Consistent Socket Forming
Product Details
| Pipe Diameter: | 16~630mm | Product Type: | Plastic Pipe |
|---|---|---|---|
| Controlsystem: | PLC Control With Touch Screen | Automatic Grade: | Full Automatic |
| Model: | SGK | Screw Design: | Conical Twin Screw Extruder |
| Motor Power: | 22KW | Coolingmethod: | Air Cooling |
| Highlight |
Pipe Belling Machine with uniform heating,Consistent socket forming Pipe Belling Machine,Pipe Belling Machine for socket forming |
||
Product Description

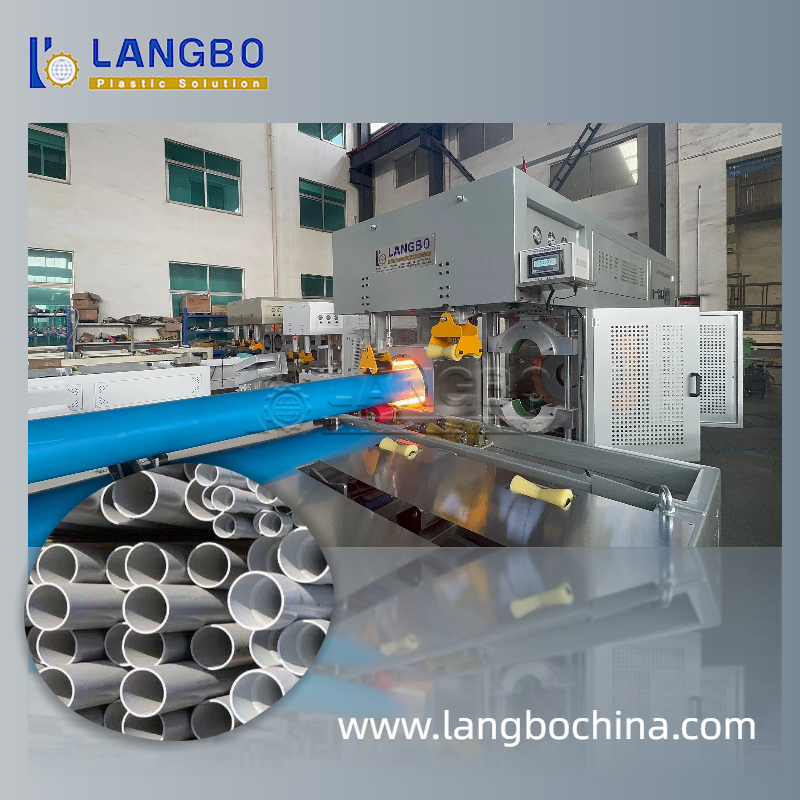

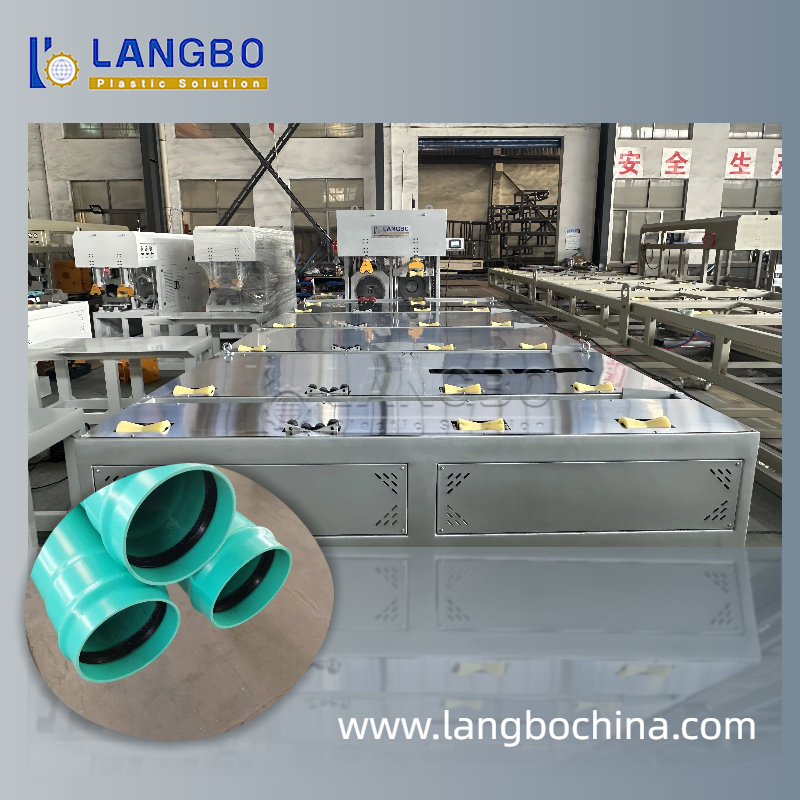

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.
- Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage

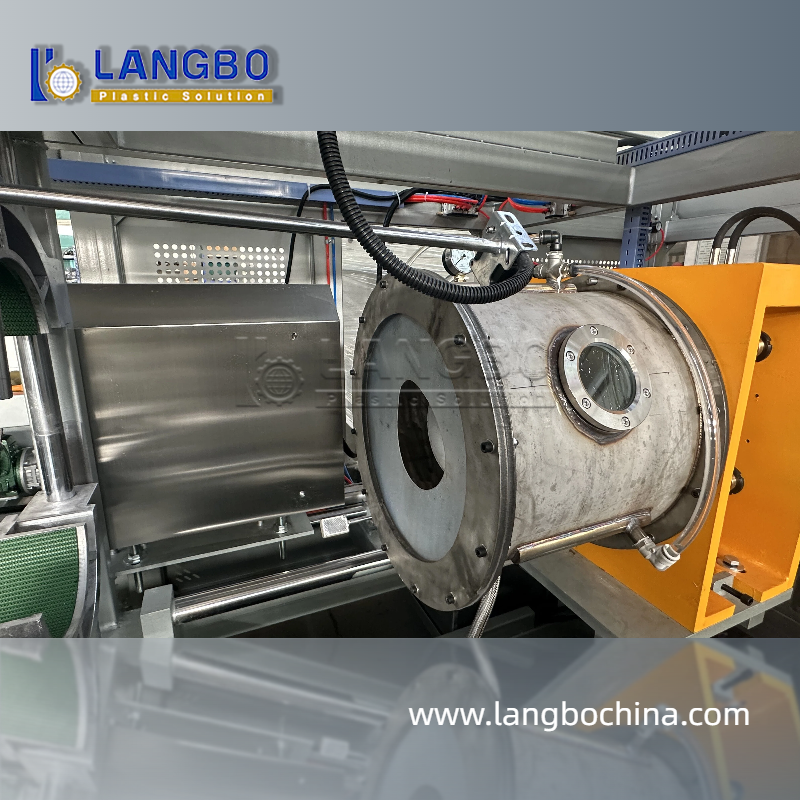

- Infrared ray heating system with double-heating furnace configuration
- Each heating furnace equipped with central heating furnace core
- Expansion tube head shaping method for precise nozzle dimensions
- Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
- Main electric control components utilize imported parts for stable, reliable system performance
| Pipe Expand Range (Outer Diameter) | Φ 20-630mm |
|---|---|
| Belling Type | R type & U type |
| Used Oil Label | No. 40/Hydraulic Oil |
| Quantity of Heater | 2 |
| Highest Temperature in Heater | 280°C |
| Gas Pressure | 0.6~0.8Mpa |
| Water Pressure | 0.2~0.3Mpa |
| Pipe Length | 3-6m |
| Center Height | 900mm ± 50mm |
| Machine Dimensions | 8615 × 3125 × 2500mm |
