Home /Products/Pipe Belling Machine/16mm-630mm Automatic Plastic PVC Pipe Socket Belling

16mm-630mm Automatic Plastic PVC Pipe Socket Belling

1 SET
MOQ
Negotiable（USD EUR）
Price
16mm-630mm Automatic Plastic PVC Pipe Socket Belling
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Pipe Diameter: 16~630mm
Contactor Brand: Siemens
Product Type: Plastic Pipe
Controlsystem: PLC Control With Touch Screen
Automatic Grade: Full Automatic
Model: SGK
Screw Design: Conical Twin Screw Extruder
Motor Power: 22KW
Coolingmethod: Air Cooling
Highlight:

16mm-630mm PVC pipe belling machine

,

automatic plastic pipe socket machine

,

PVC pipe belling machine with warranty
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
16mm-630mm Automatic Plastic PVC Pipe Socket Belling
Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/Hydraulic Oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 × 3125 × 2500mm
Product Gallery

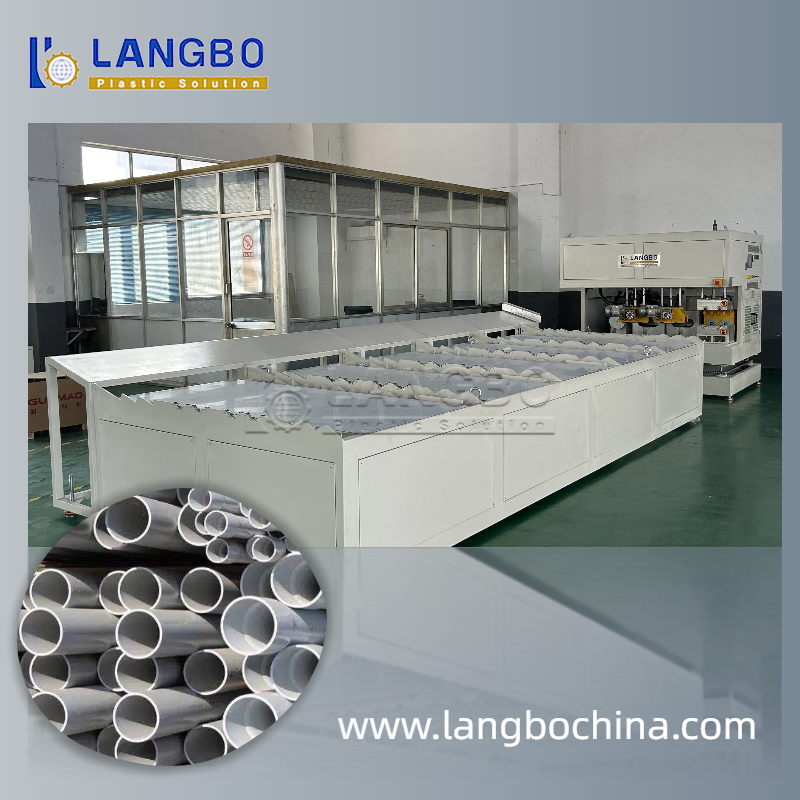

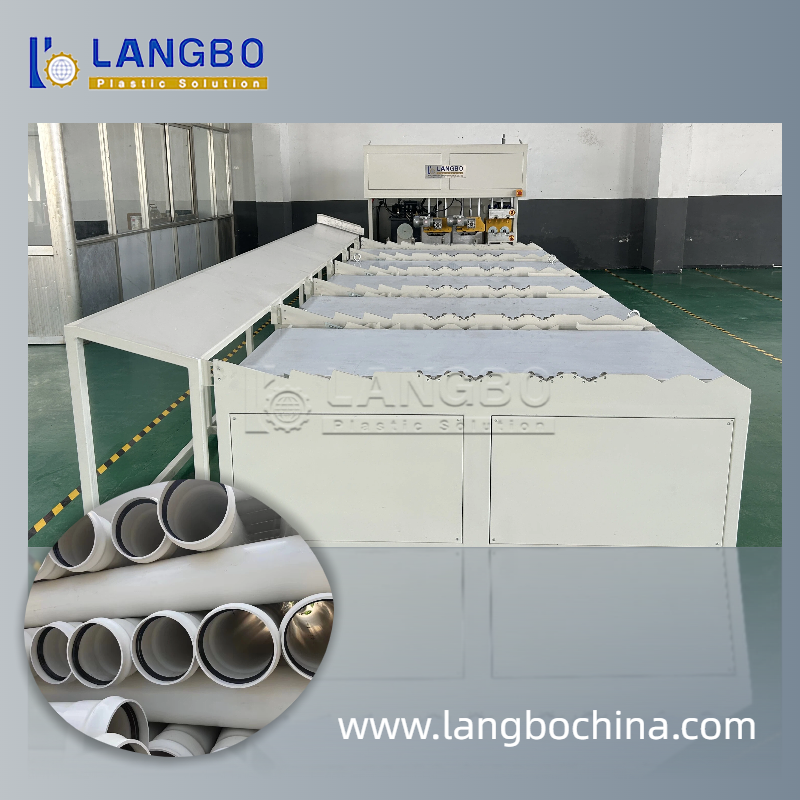

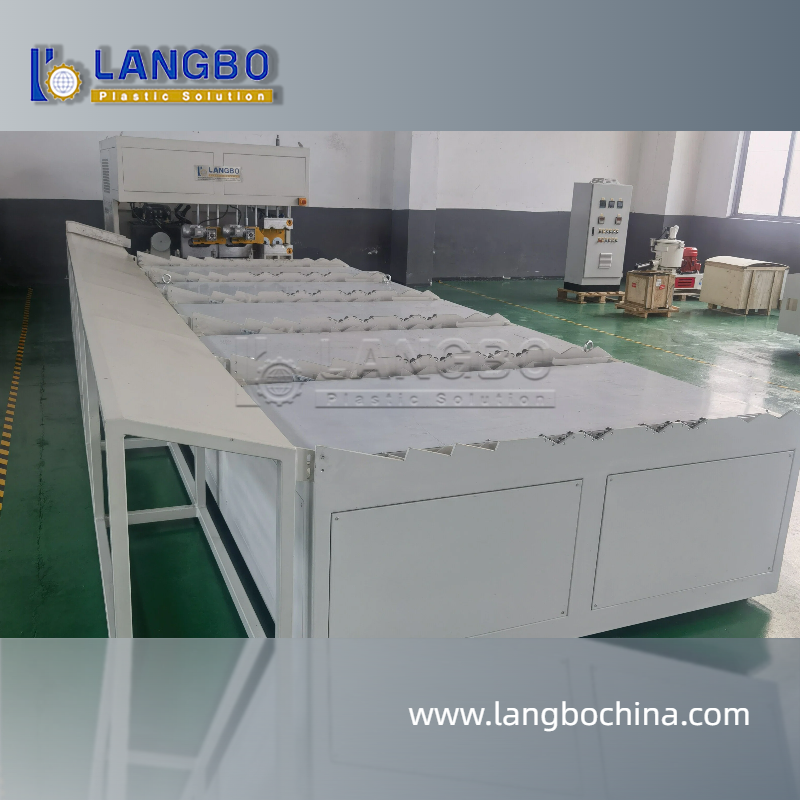

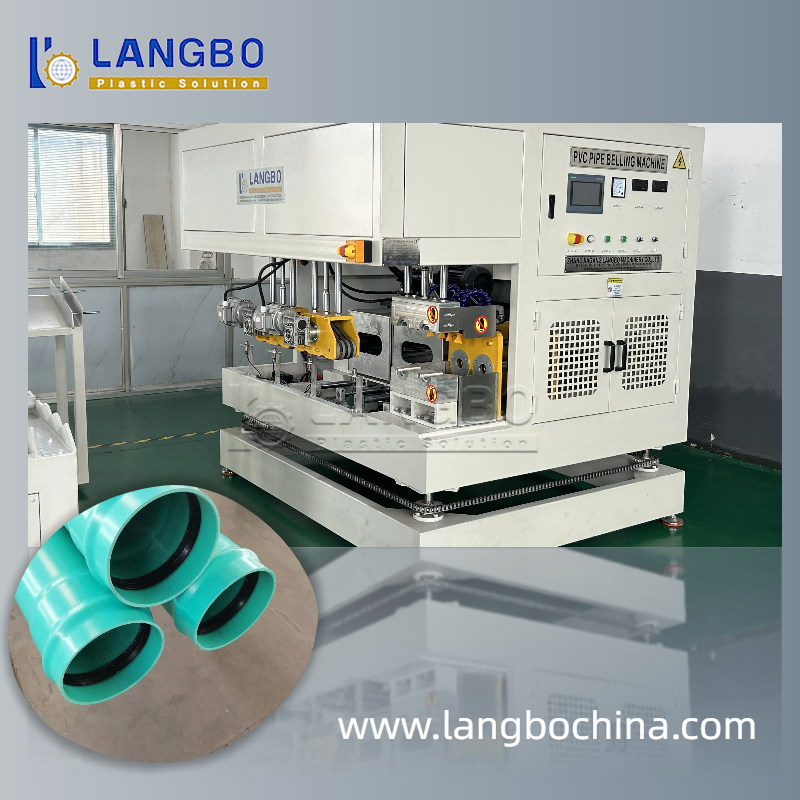

16mm-630mm Automatic Plastic PVC Pipe Socket Belling 0 16mm-630mm Automatic Plastic PVC Pipe Socket Belling 1 16mm-630mm Automatic Plastic PVC Pipe Socket Belling 2 16mm-630mm Automatic Plastic PVC Pipe Socket Belling 3
