Features

Specifications

Pipe Diameter: 16~630mm

Contactor Brand: Siemens

Product Type: Plastic Pipe

Controlsystem: PLC Control With Touch Screen

Automatic Grade: Full Automatic

Model: SGK

Screw Design: Conical Twin Screw Extruder

Motor Power: 22KW

Coolingmethod: Air Cooling

Highlight:

U-shape PVC pipe belling machine

R-shape pipe socketing machine

double heating position belling machine

Basic Infomation

Place of Origin: ZHANGJIAGANG

Brand Name: LB

Certification: CE ISO

Model Number: LB

Payment & Shipping Terms

Packaging Details: NORMAL PACKAGE

Delivery Time: 45 WORKING DAYS

Payment Terms: L/C,T/T

Supply Ability: 15 SETS PER MONTH

Gallery

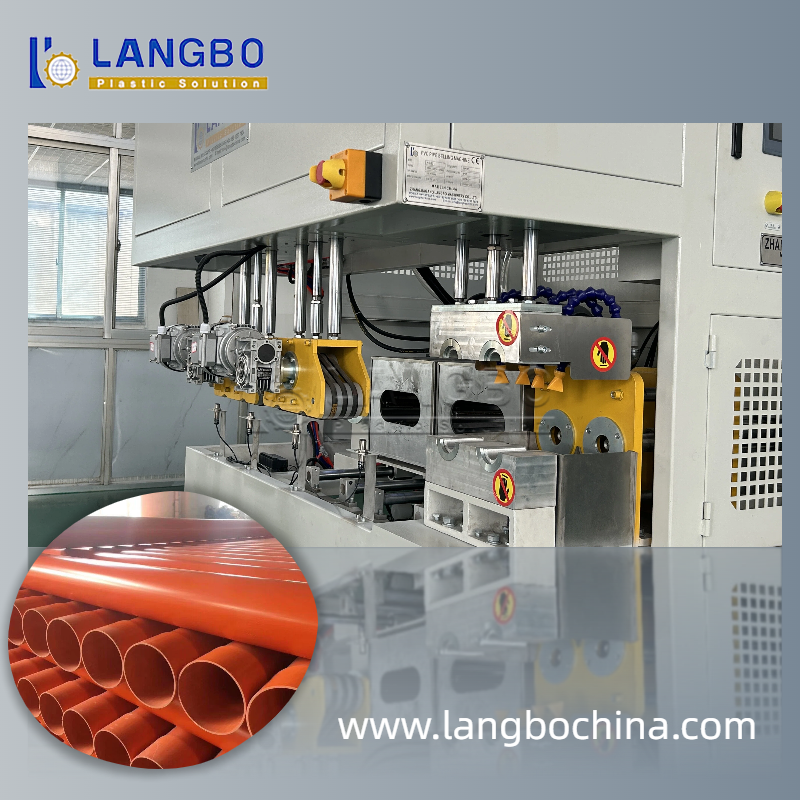

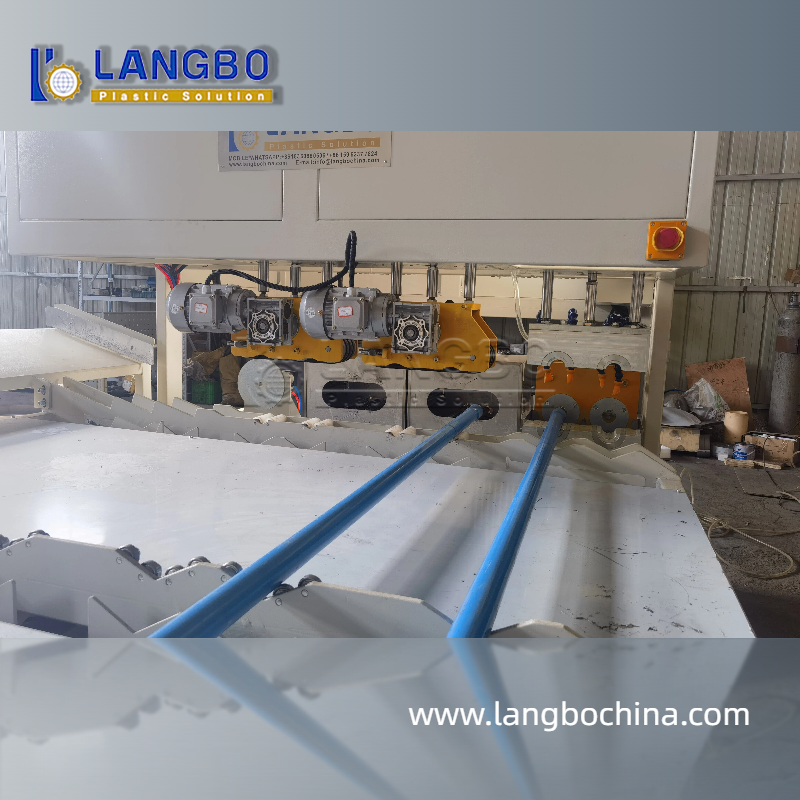

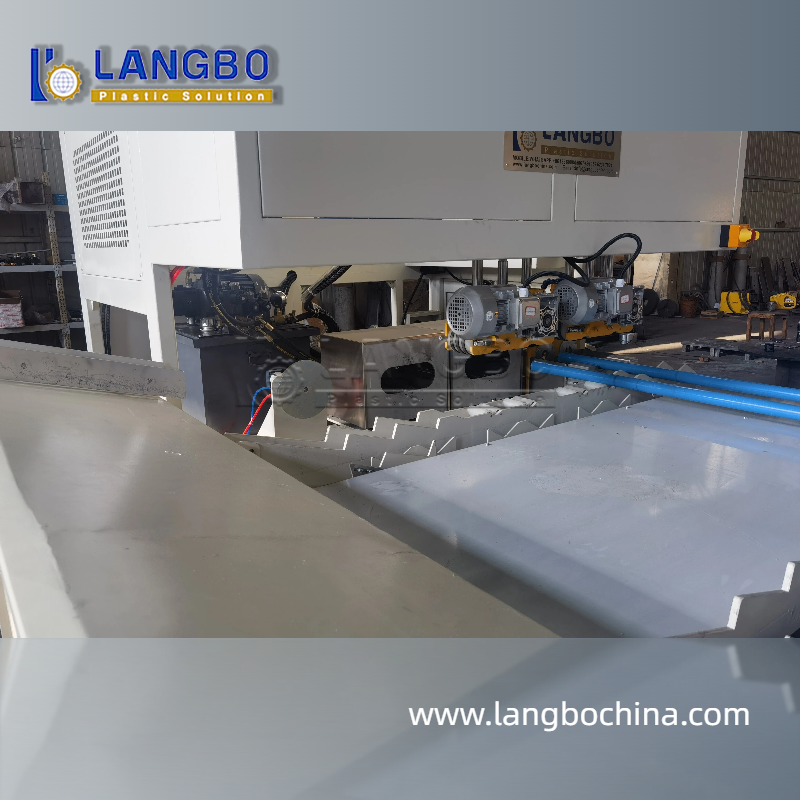

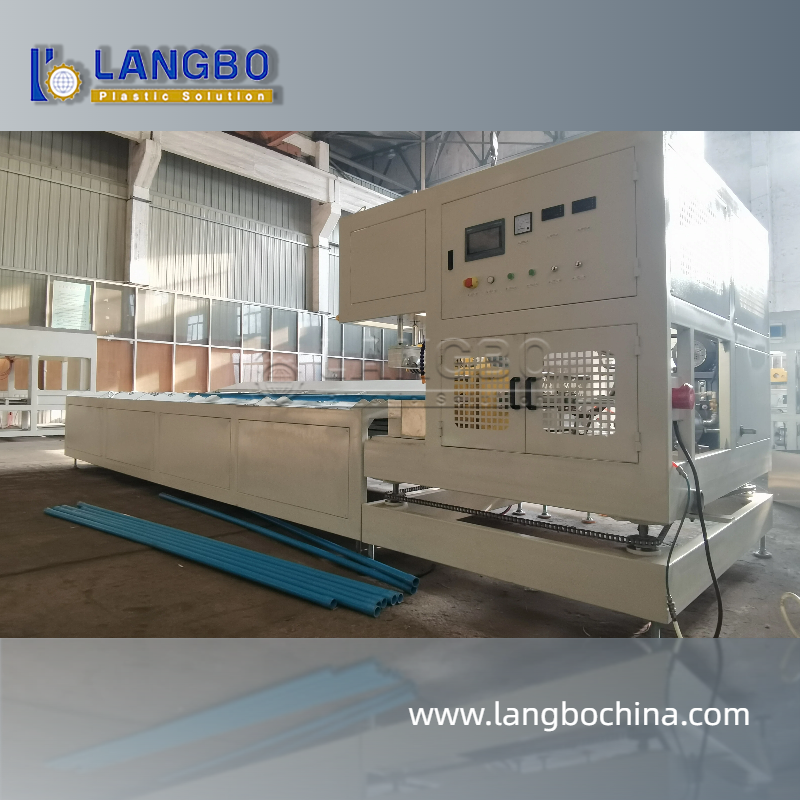

Double Two Heating Position U/ R-Shape PVC Pipe Belling Socketing Machine

Product Description

Double Two Heating Position U/ R-Shape PVC Pipe Belling Socketing Machine

Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
Infrared ray heating system with double-heating furnace configuration
Each heating furnace equipped with central heating furnace core
Expansion tube head shaping method for precise nozzle dimensions
Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
Main electric control components utilize imported parts for stable, reliable system performance

Technical Specifications

Pipe Expand Range (Outer Diameter)	Φ 20-630mm
Belling Type	R type & U type
Used Oil Label	No. 40/Hydraulic Oil
Quantity of Heater	2
Highest Temperature in Heater	280°C
Gas Pressure	0.6~0.8Mpa
Water Pressure	0.2~0.3Mpa
Pipe Length	3-6m
Center Height	900mm ± 50mm
Machine Dimensions	8615 × 3125 × 2500mm
