16-110 mm PPR Plastic Hose Pipe Making Machine

1 SET
MOQ
Negotiable（USD EUR）
Price
16-110 mm PPR Plastic Hose Pipe Making Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Cooling Method: Water Cooling Tank
Pipe Diameter: 16-110MM
Extruder Design: Single Screw Extruder
Voltage: 220V/380V/415V
Material: Polypropylene Random Copolymer (PPR)
Extruder Model: SJ65/33
Electrical Components: Siemens Or Schnider
Contactor: Schneider
Highlight:

16-110mm PPR pipe making machine

,

PPR plastic hose extrusion line

,

PPR pipe machine with warranty
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE/ISO
Model Number: LB-63
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WOKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
16-110 mm PPR Plastic Hose Pipe Making Machine
Extrusion Process

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180

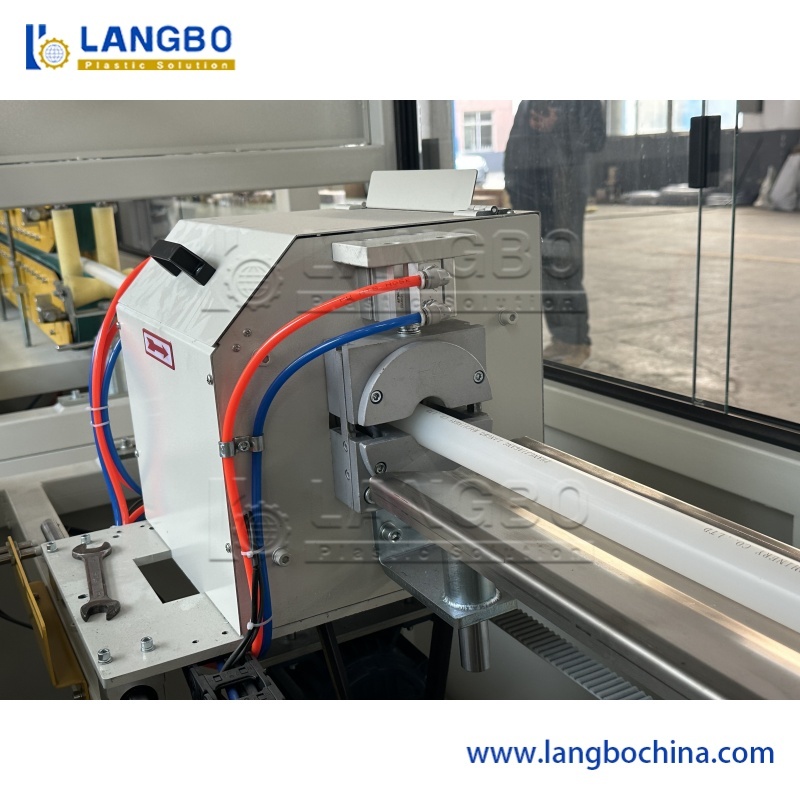

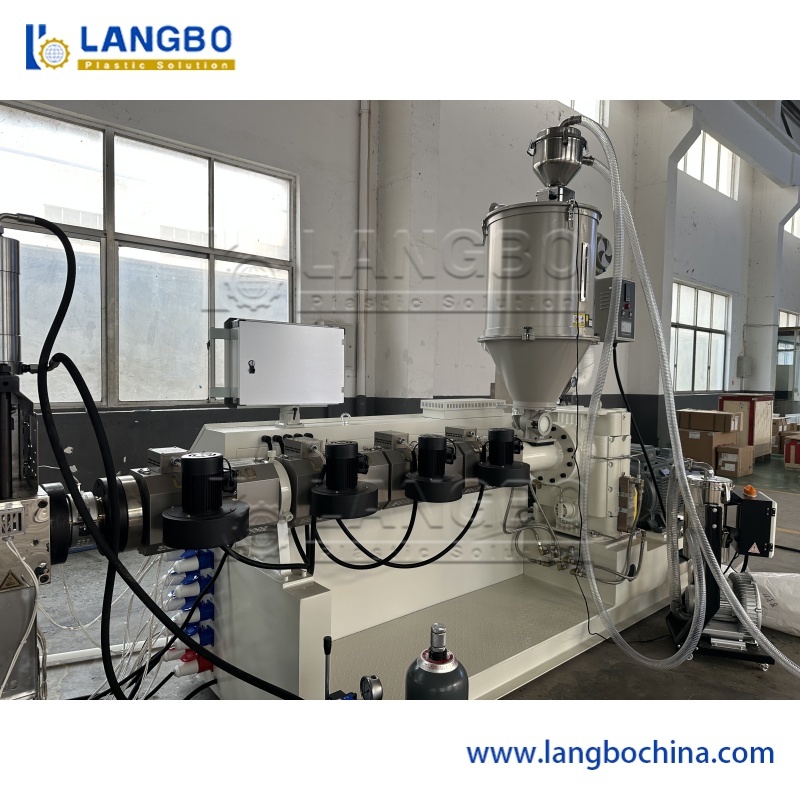

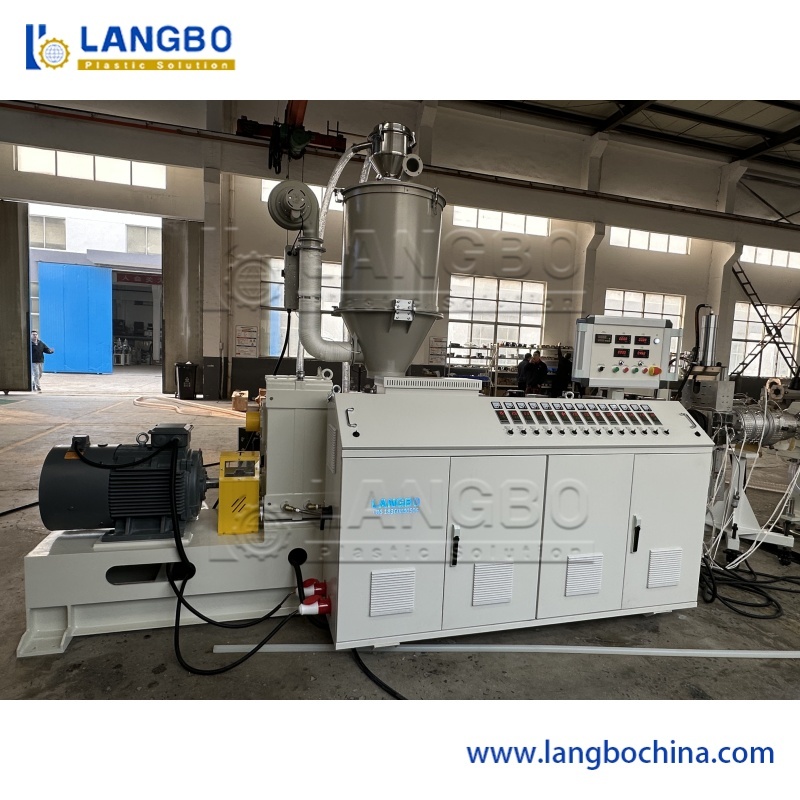

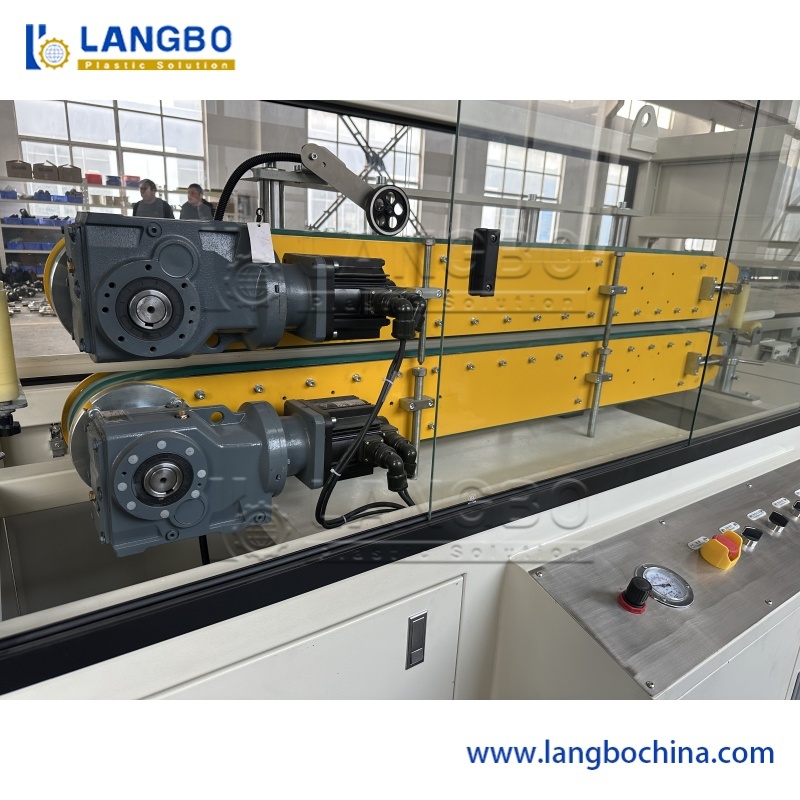

16-110 mm PPR Plastic Hose Pipe Making Machine 0 16-110 mm PPR Plastic Hose Pipe Making Machine 1



16-110 mm PPR Plastic Hose Pipe Making Machine 2 16-110 mm PPR Plastic Hose Pipe Making Machine 3
