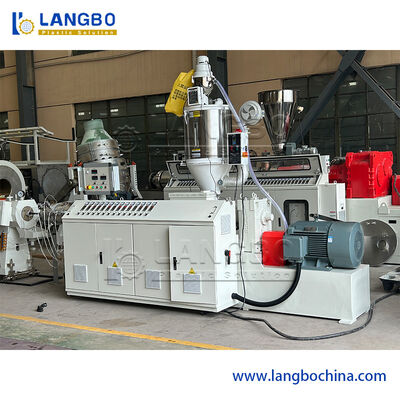

PE Pipe Extruder | Automatic Feeding System High-Precision Screw for Uniform Mixing
Product Details
| Machine Making Material: | 304 Medical Level Stainless Steel | Center Height: | 1000mm |
|---|---|---|---|
| Pipe Range: | 16-1200mm | Operatingvoltage: | 380V, 50Hz |
| Screw Design: | Single-screw | Plastic Process: | PE |
| Output: | 350Kg/H | Coolingmethod: | Water Cooling Tank |
| Highlight |
PE pipe extruder automatic feeding,high-precision screw extruder,uniform mixing PE pipe extrusion |
||
Product Description
Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.
For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.
PE pipe extrusion lines are used for water supply, gas, irrigation, drainage, cable conduits, and industrial pipes. They process PE100/PE80 materials with diameters of 16–1200mm, offering chemical resistance, high strength, and consistent quality, compliant with ISO and ASTM standards, suitable for diverse infrastructure and industrial applications.
| Model | Pipe diameter (mm) | Extruder | Extruder power(kw) | Capacity(kg/hr) |
|---|---|---|---|---|
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Product Highlights
