PVC Mixer Machine with Accurate Mixing for PVC Pipe Manufacturing
Product Details
| Capacity Range: | 500kg/h | Unloaded: | Pneumatic |
|---|---|---|---|
| Automationlevel: | Semi-automatic | Capacity: | 500 Kg |

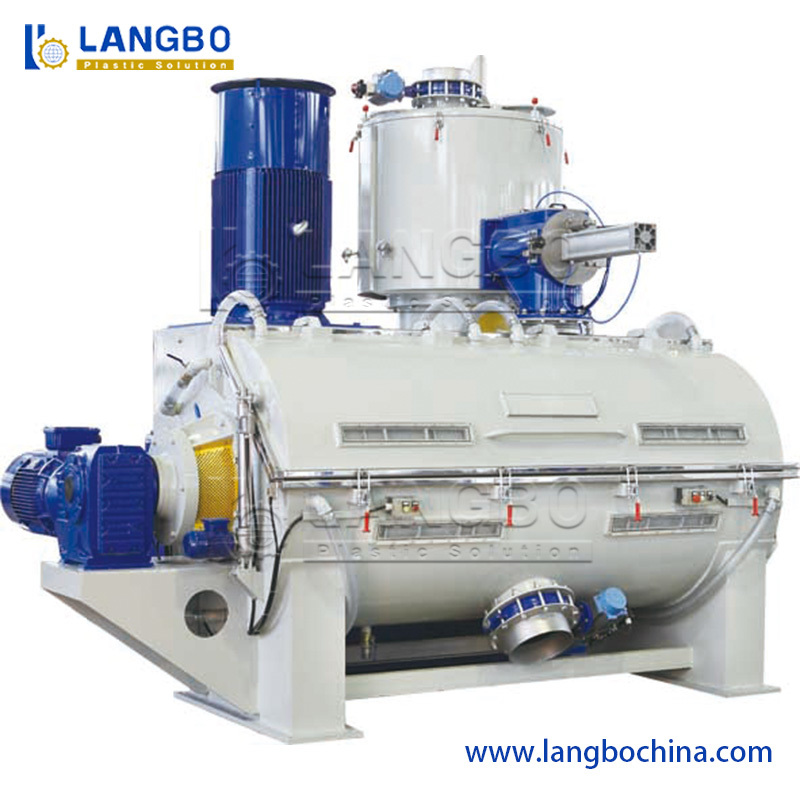

| Mixer: | VERTICAL/HORIZONTAL COMBINATION | Application: | PVC Powder Mixing For Plastic Production |
| Heatingmethod: | Electric Heating | Mixingspeed: | 30-60 Rpm |
| Highlight |
PVC mixer machine for pipe manufacturing,accurate PVC mixing machine,PVC mixer with precise blending |
||
Product Description

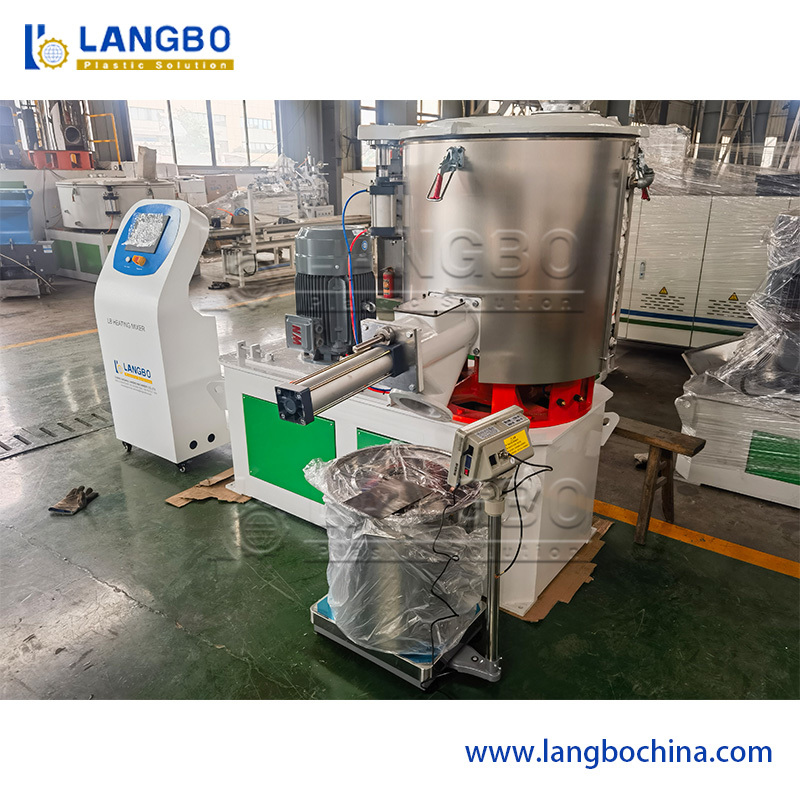

Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine designed for PVC pipe, window door profiles, ceiling panel, cable trunking, and marble sheet applications. Suitable for plastics, rubber, chemical and food industries for powder or granulate material blending, coloring and drying.
- Production of PVC dry blend
- Filling and modification of plastics
- Pre-mixing of compounding process
- Premix of wood-plastic composites

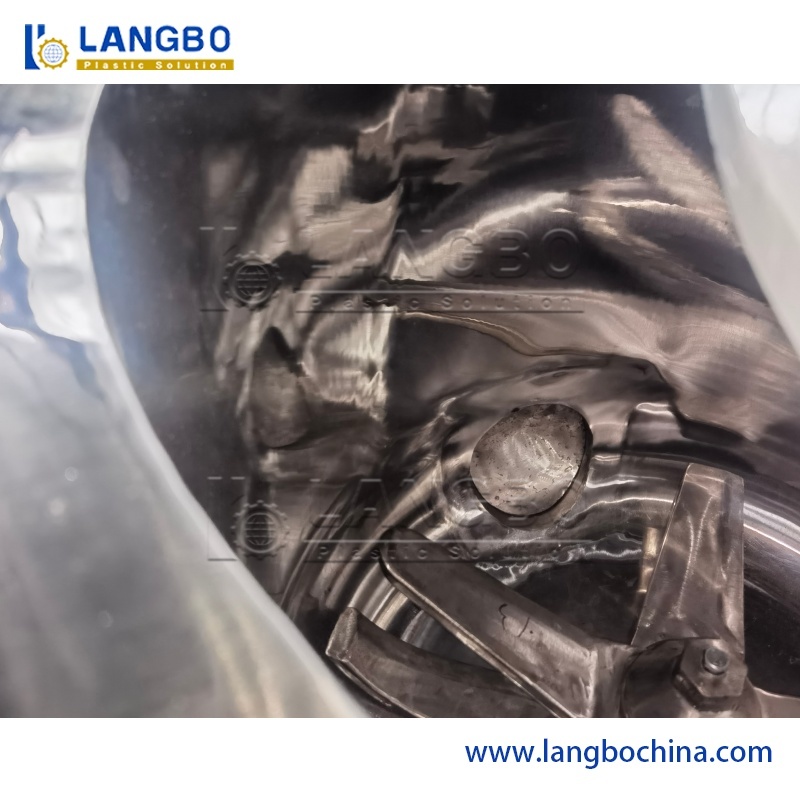

- Blade made of stainless steel with dynamic and static balance refinement
- Double sealing cap with pneumatic start for easy operation
- Stainless steel cylinder with 8mm wall thickness
- Temperature auto control or time control discharge
- ABB inverter for motor start and speed regulation
- Direct & stable control type with analog display screen
- Automated manufacturing procedure reduces labor intensity and production costs
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning services available
- Maintenance guidance and spare parts provision after warranty period
- Operator training services
