PVC Profile Extrusion Line | Fine Control Suitable for Various Applications

Brand Name: LB
Model Number: LB-1240
Place of Origin: ZHANGJIAGANG
Certification: CE,ISO
Minimum Order Quantity: 1 SET
Price: Negotiable(USD,EUR)
Supply Ability: 15 SETS PER MONTH
Tags

pvc marble sheet production line

pvc sheet making machine

pvc ceiling panel extrusion machine

Product Details

Function: Special For SPVC Pipe Umbers: DOUBLE PIPE
Coolingmethod: Water Cooling Tank Machinelength: 10-20 Meters
Automationlevel: Semi-automatic To Fully Automatic Motor: 22kw
Frame Wide: 300mm Wide Calibration Table: EIGHT MTERS LONG
Highlight

PVC profile extrusion machine

,

Fine control extrusion line

,

Versatile PVC extrusion equipment

Product Description

PVC Profile Extrusion Line | Fine Control Suitable for Various Applications
The window and door profile production line is widely used in the decoration industry. With drawing sections of the window and door profile, tailored solutions and molds will be created to meet specific requirements.
Processing Process
The complete process flow of this production line includes:
  • PVC powder + additive → mixing
  • Material feeder → conical twin screw extruder
  • Mold and calibrator → vacuum forming table
  • Haul-off machine → cutting machine → stacker
This window and door profile extrusion line features a conical twin screw extruder suitable for both PVC powder and PVC granules. The integrated degassing system ensures excellent material plasticization, while high-speed molds significantly increase productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max width of products (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total length (m) 18m 22m 22m 25m
Product Details
Mold for Window and Door Profile
Optimized channel design ensures high flow performance. Each mold undergoes rigorous inspection by experienced engineers to guarantee precision and stable operation.
Calibration Table
Equipped with advanced water circuit and vacuum systems, the special layout enables rapid shaping and cooling to produce excellent window and door profiles. The stable steel frame and high-quality SUS 304 stainless steel construction ensure long machine lifetime. Multiple water separators are available.
Haul-off and Cutting Unit
Each crawler track is independently motor-driven, providing sufficient hauling force with even distribution along the tracks. Highly synchronized hauling speed and force ensure consistent product quality. Direct cutting technology is applied for optimal performance.
Stacker
The automatic stacker securely holds produced window and door profiles. It operates with periodic flipping action to efficiently pull profiles down for collection.
Product Gallery

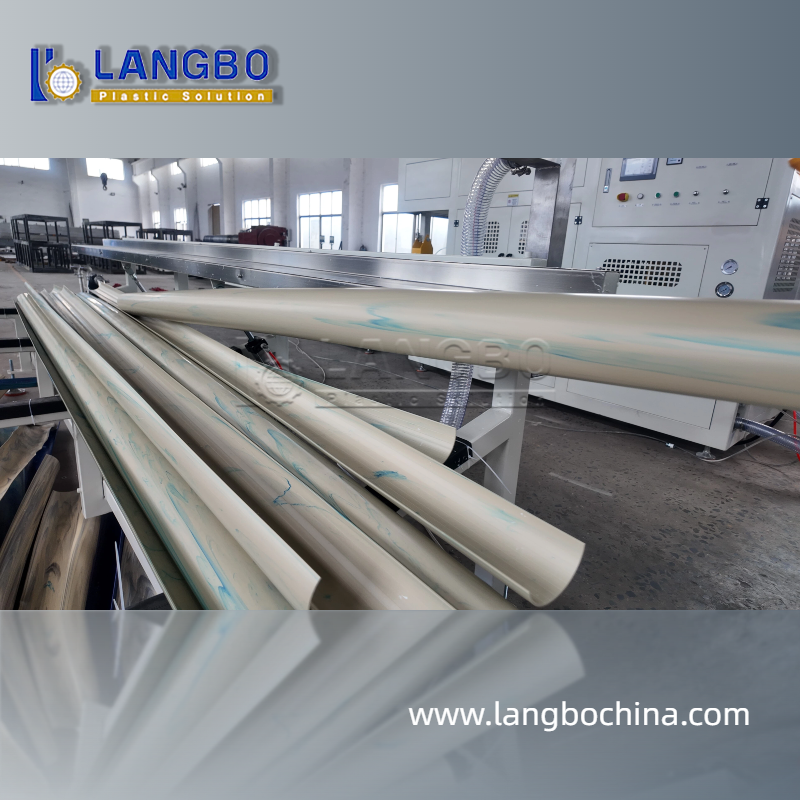

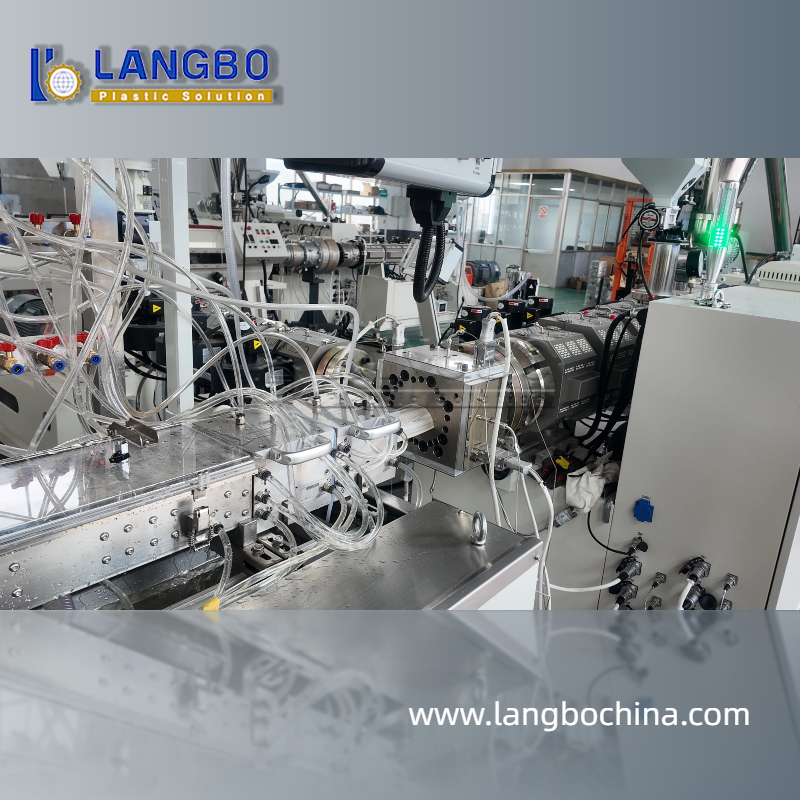

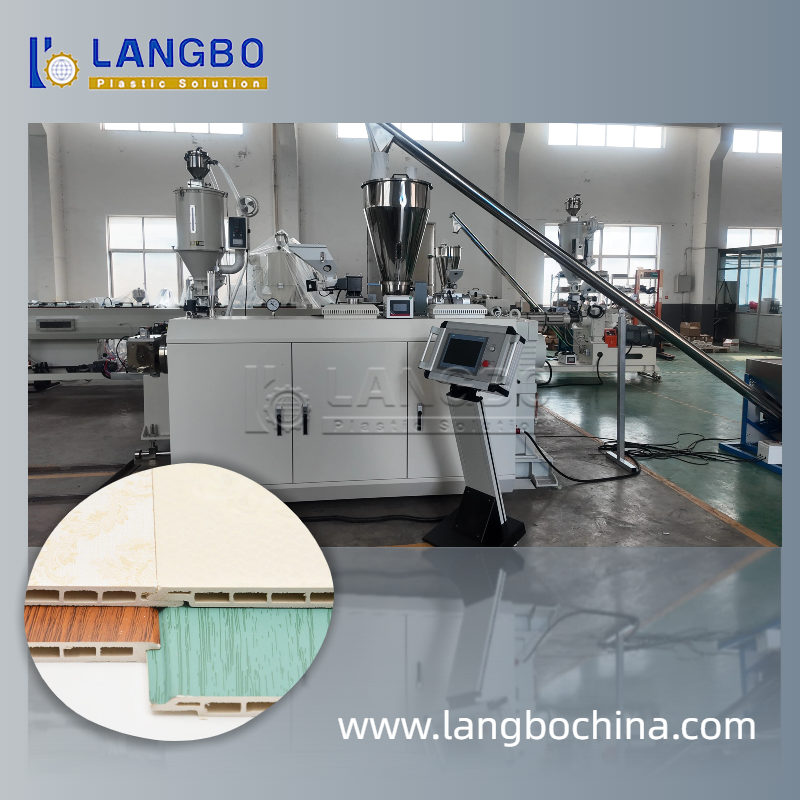

PVC Profile Extrusion Line overview Extrusion line components and machinery Close-up of extrusion mechanism Production line operation view Finished window and door profiles
