Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs

1 SET
MOQ
Negotiable（USD EUR）
Price
Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Powerconsumption: 5 KW
Belling Range: 16~630mm
Socket Numbers: 1,2,4
Pipe Diameter: 16-630MM
Warranty: 12 Months
Plastic Type: Plastic PVC Pipe
Pipediameterrange: 20mm - 630mm
Plastic Processed: PVC
Operation: AUTOMATIC
Capacity: 120~800kg/h
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-80/156
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs

Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/Hydraulic Oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 × 3125 × 2500mm

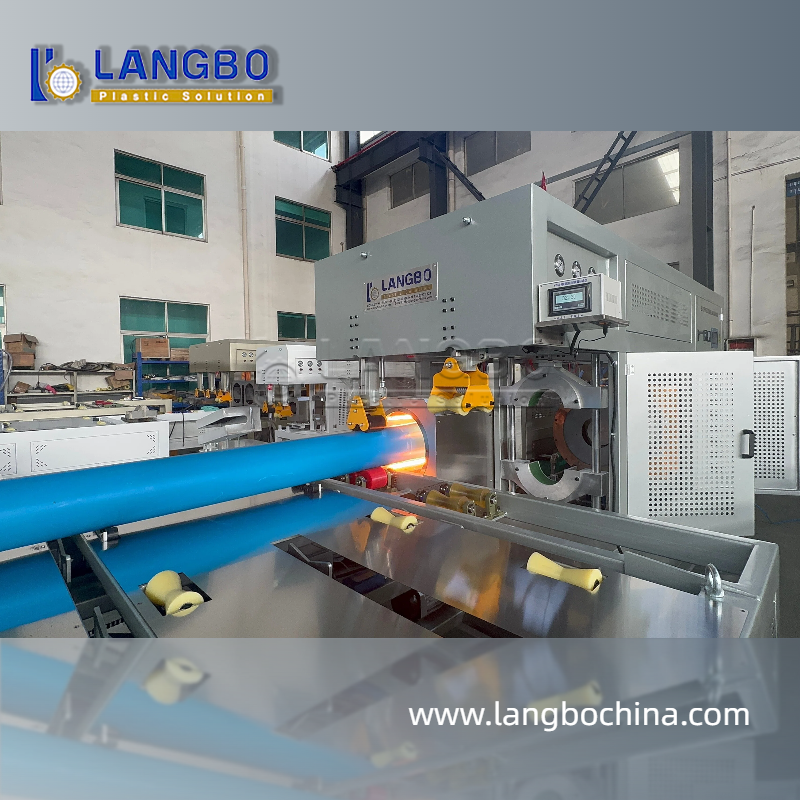

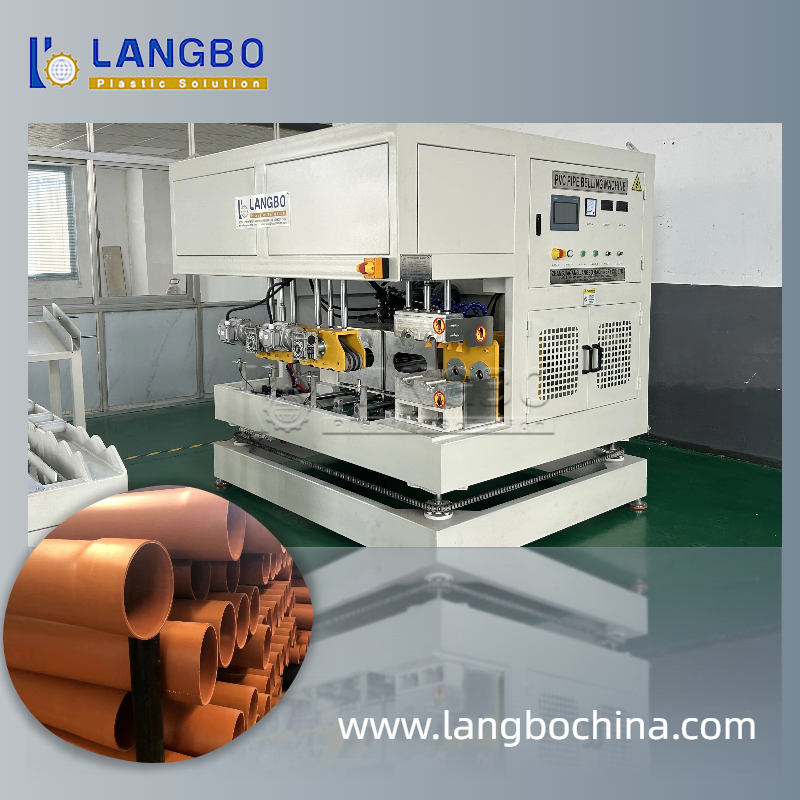

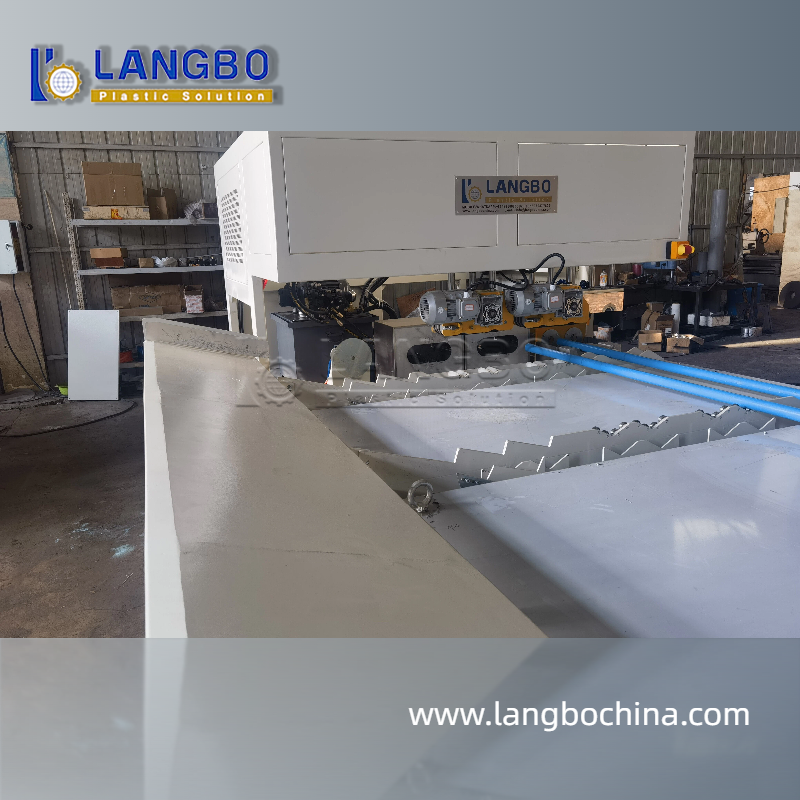

Product Gallery

Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs 0

Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs 1

Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs 2

Pipe Belling Machine | Customizable Expansion Sizes Meeting Different Pipe Needs 3
