PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
Product Details
| Extruder Type: | Conical Twin Screw Extrusion Machine | Center Height: | 1000mm |
|---|---|---|---|
| Product Type: | PVC/PE Pipe | Motor Power: | 75 Kw |
| Warranty: | 18 Months Since The Machine Shipped | Packages: | Film And Boxes |
| Colour: | CUSTOMIZED | Screw No: | Twin-screw |
| Usage: | Extrusion Line | Machinery Test Report: | Provided |
| Screw Speed: | 0-60rpm | Automation: | Automatic |
| Highlight |
PVC threading machine customizable pitch,PE threading machine for pipe specifications,PVC pipe extrusion threading equipment |
||
Product Description

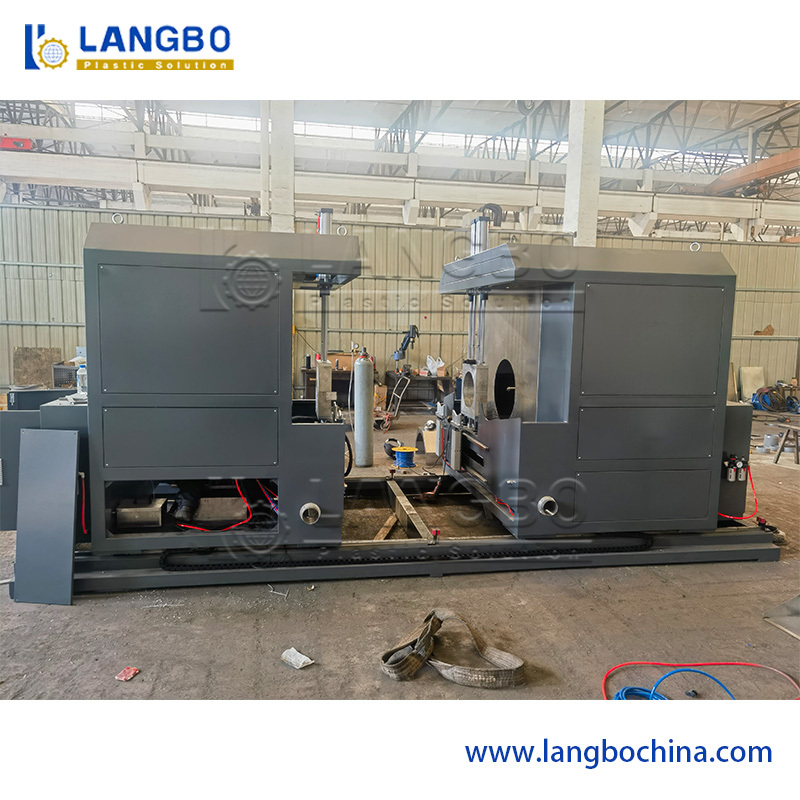

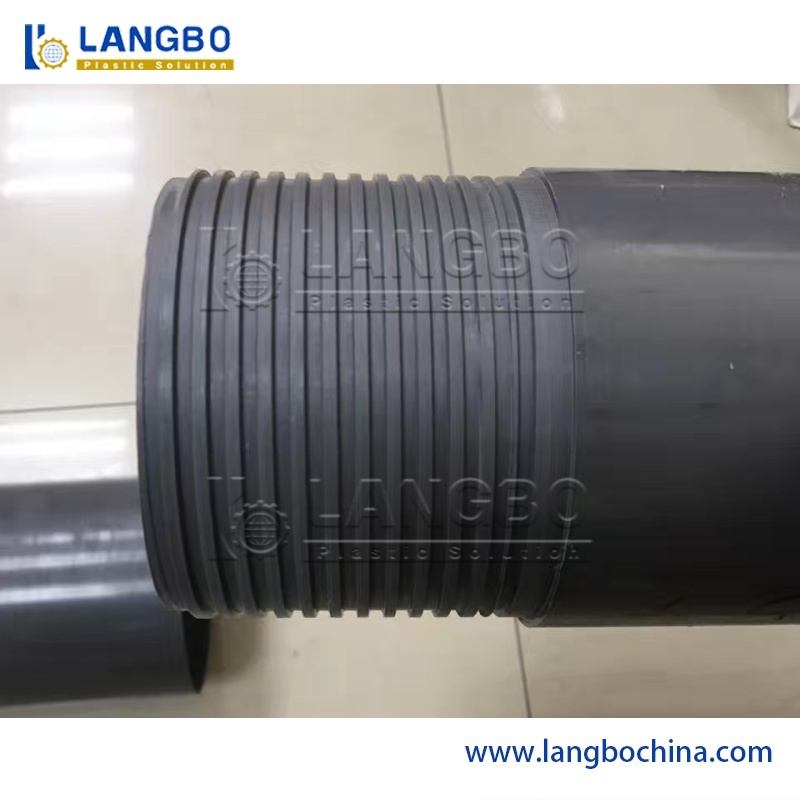

This machine is specialized equipment designed for cutting external threads on pre-extruded PVC, PE, or PP pipes. It is typically used after the extrusion process, providing precise and clean thread profiles for pipe connections, couplings, and fittings.
With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.
- High Precision Threading Cutting - Special thread-cutting tools provide uniform and accurate threads with clean edges
- CNC / PLC Control System - Intelligent control for adjustable speed, pitch, and cutting depth ensures consistent results
- Universal Pipe Clamping System - Adaptable to various pipe diameters and materials without frequent adjustments
- Automatic Centering and Feeding - Servo-driven feeding ensures stable rotation and precise positioning during threading
- Durable and Low-Noise Operation - Heavy-duty base and vibration-damping structure enhance machining stability
- User-Friendly Interface - Touch screen operation with multiple preset thread standards
| Parameter | Specification |
|---|---|
| Pipe Diameter Range | 16-160 mm (customizable) |
| Applicable Materials | PVC, PE, PP |
| Thread Type | Metric, BSP, NPT, Custom |
| Max. Thread Length | 20-100 mm |
| Spindle Speed | 200-1200 rpm (adjustable) |
| Clamping System | Pneumatic / Mechanical adjustable chuck |
| Feeding System | Servo motor controlled feed |
Main Machine Base: Rigid welded structure for stable operation
Pipe Clamping Device: Automatically centers and holds pipes securely
CNC Thread Cutting Head: Precisely cuts external threads according to set pitch and depth
Servo Feeding Unit: Controls the linear feed of the cutting tool
Cooling / Lubrication System: Extends tool life and ensures smooth cutting
Control Panel: Touch screen or CNC system for full parameter adjustment
- Precise Thread Forming - CNC-controlled cutting head guarantees accurate thread pitch, depth, and alignment, ensuring perfect fit between pipe and fittings
- Wide Material Compatibility - Suitable for various thermoplastics such as PVC, PE, and PP, with adjustable cutting parameters to match different material hardness and wall thickness
- Stable and Durable Structure - Heavy-duty machine bed and vibration-resistant frame ensure stable operation even under long-term continuous use
- Low Maintenance Requirement - Robust mechanical components and automatic lubrication reduce wear and simplify routine service
