Home /Products/WPC Decking Machine/WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

1 SET
MOQ
Negotiable（USD,EUR）
Price
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Warranty: 1 YEAR
Output Capacity: 400KG/H
Rawmaterialcompatibility: Wood Fiber, Plastic Powder, Additives
Screwdiameter: 65 Mm
Controlsystem: PLC Control With Touch Screen
Machineweight: 3500 Kg
Cutter: SAW CUTTER
Screw Design: Double-screw
Raw Material: WPC & ADDITIVES

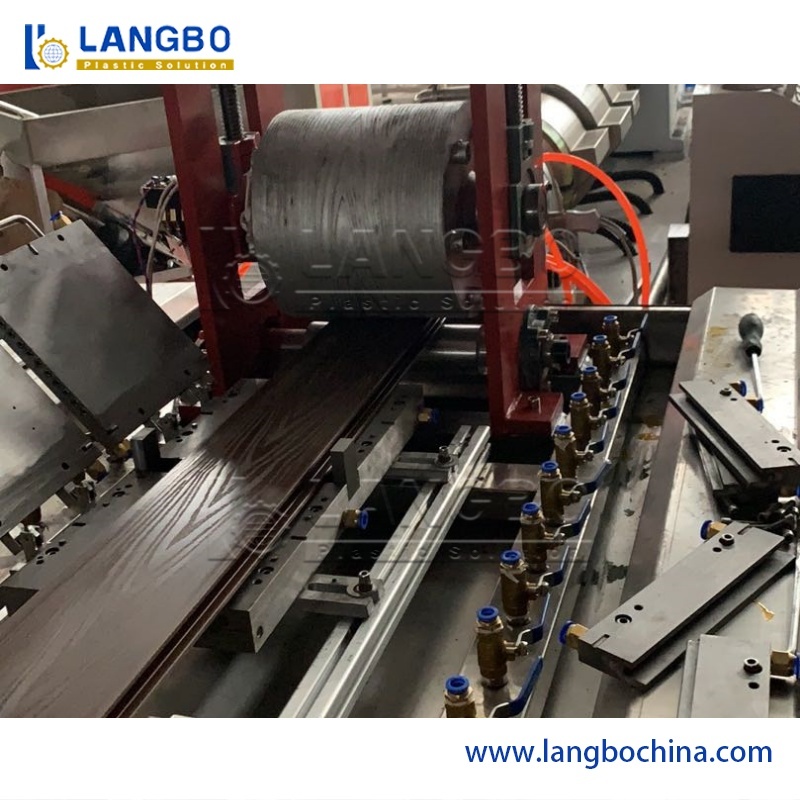

Processing Method: EMBOSSING
Profile Size: ACCORDING TO CUSTOMERS' DRAWING
Width: 200,240,300,400mm
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-300
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter

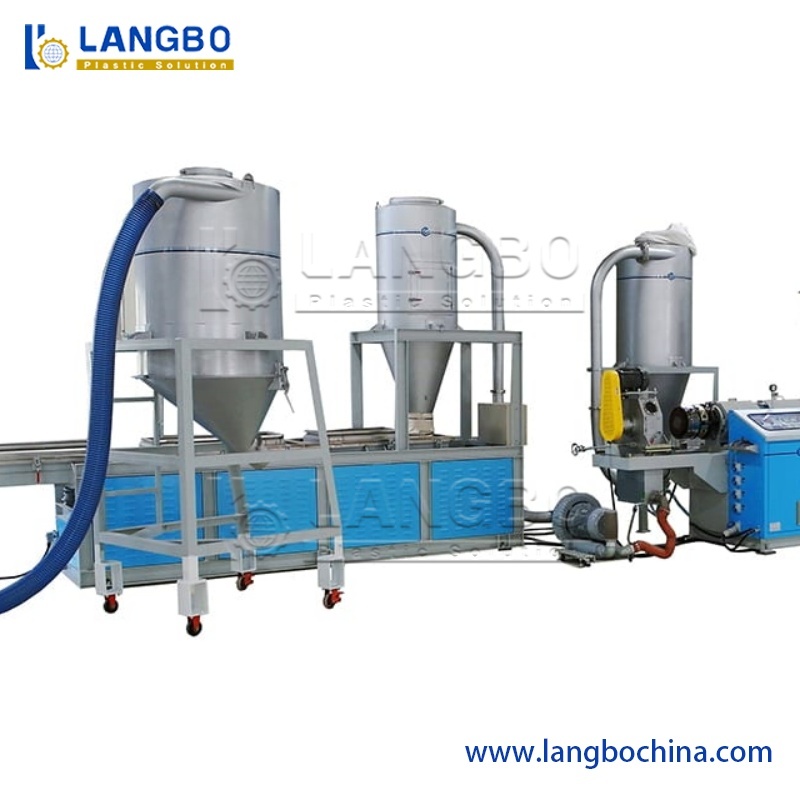

Complete Extrusion Line Components
Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.

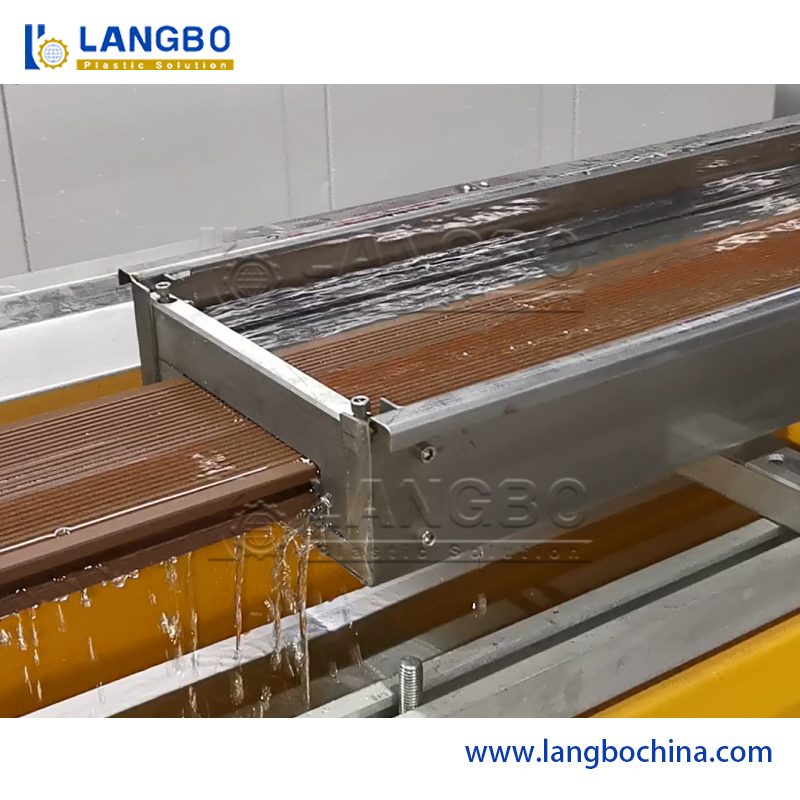

Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 0

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 1

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 2

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 3
