Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications

1 SET
MOQ
Negotiable（USD EUR）
Price
Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Motor Power: 37KW
Expansion Shape: U Shape, R Shape, Rectangle Shape
Processed Pipe: PVC Pipe
Pipediameterrange: 20mm - 630mm
Capacity: 120~800kg/h
Screw Number: Two
Bellingdiameterrange: 20mm - 630mm
Machineweight: 500kg - 1500kg
Power: 3kw
Ipe Used For: Plastic Corrugate Pipe Machine
Highlight:

Rectangular pipe belling machine

,

R/U type socket forming machine

,

Pipe socket forming machine with warranty
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-51/105
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications
Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Key Features
  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/Hydraulic Oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 × 3125 × 2500mm
Product Gallery

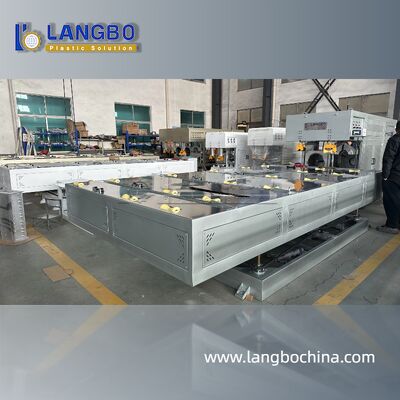

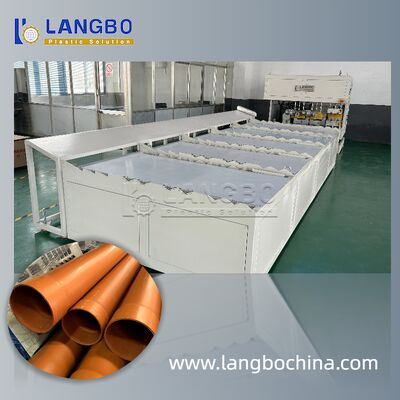

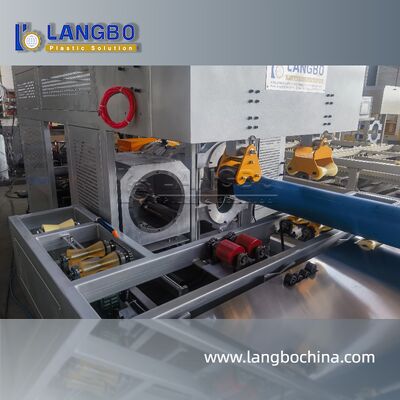

Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications 0 Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications 1 Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications 2 Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications 3
