Pipe Threading Machine With Automatic Clamping For Threaded Pipe Joint Assembly
Product Details
| Extruder Type: | Conical Double Screw | Productioncapacity: | Depends On Model, Typically 100-1000 Kg/h |
|---|---|---|---|
| Pipe Numbers: | FOUR PIPES | Pvc Pipe Diameter: | 75-250mm |
| Pipe Od: | 20-63mm | Electrical Parts: | Or Schnider |
| Packages: | Film And Boxes | Coolingmethod: | Water Cooling Tank |
| Forming: | Vacuum Forming | Stacker: | 6 METERS LENGTH |
| Highlight |
automatic clamping pipe threading machine,PVC pipe threading machine with warranty,threaded pipe joint assembly machine |
||
Product Description

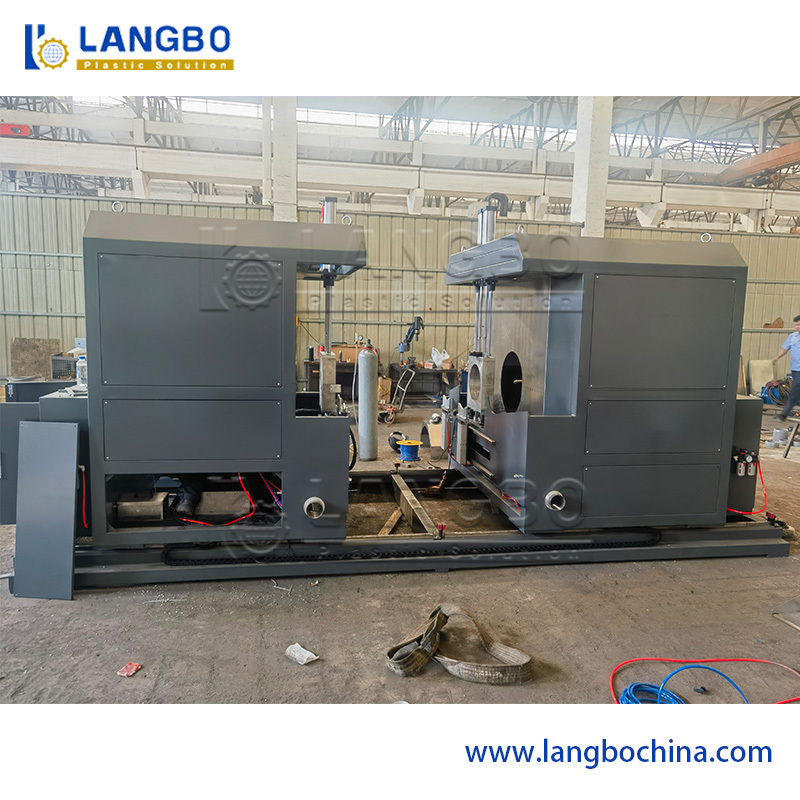

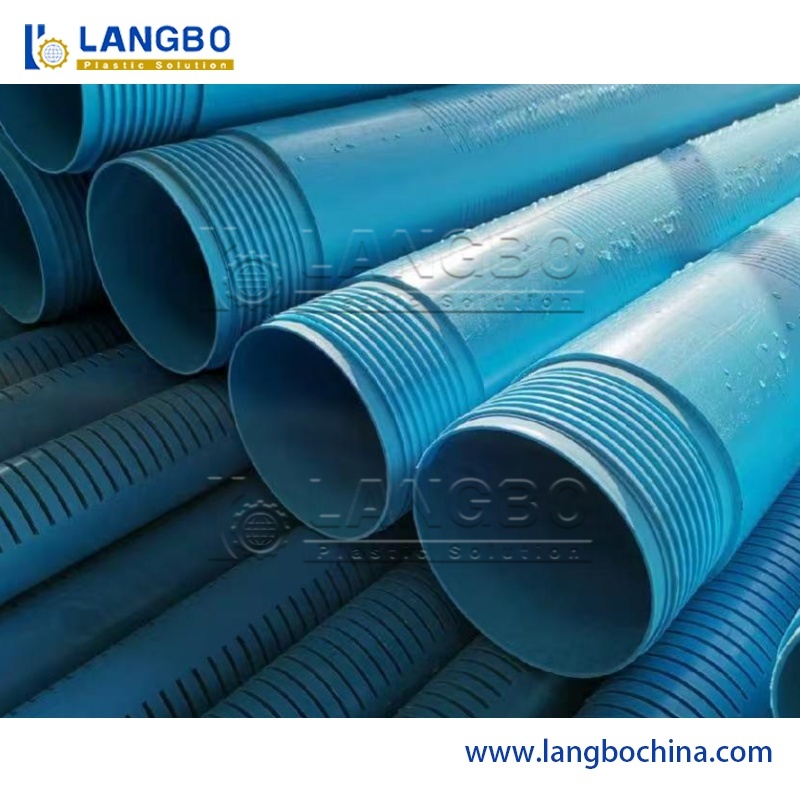

This specialized equipment is designed for cutting external threads on pre-extruded PVC, PE, or PP pipes. Typically used after the extrusion process, it provides precise and clean thread profiles for pipe connections, couplings, and fittings.
With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.

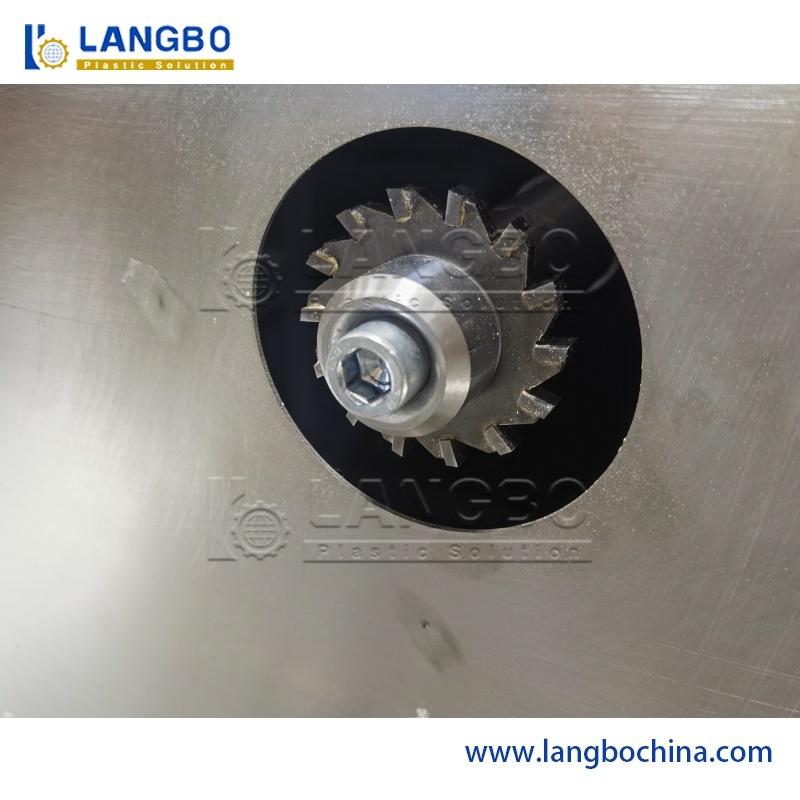

- High Precision Threading Cutting - Special thread-cutting tools provide uniform and accurate threads with clean edges
- CNC / PLC Control System - Intelligent control for adjustable speed, pitch, and cutting depth ensures consistent results
- Universal Pipe Clamping System - Adaptable to various pipe diameters and materials without frequent adjustments
- Automatic Centering and Feeding - Servo-driven feeding ensures stable rotation and precise positioning during threading
- Durable and Low-Noise Operation - Heavy-duty base and vibration-damping structure enhance machining stability
- User-Friendly Interface - Touch screen operation with multiple preset thread standards
| Parameter | Specification |
|---|---|
| Pipe Diameter Range | 16-160 mm (customizable) |
| Applicable Materials | PVC, PE, PP |
| Thread Type | Metric, BSP, NPT, Custom |
| Max. Thread Length | 20-100 mm |
| Spindle Speed | 200-1200 rpm (adjustable) |
| Clamping System | Pneumatic / Mechanical adjustable chuck |
| Feeding System | Servo motor controlled feed |
- Precise Thread Forming - CNC-controlled cutting head guarantees accurate thread pitch, depth, and alignment, ensuring perfect fit between pipe and fittings
- Wide Material Compatibility - Suitable for various thermoplastics such as PVC, PE, and PP, with adjustable cutting parameters to match different material hardness and wall thickness
- Stable and Durable Structure - Heavy-duty machine bed and vibration-resistant frame ensure stable operation even under long-term continuous use
- Low Maintenance Requirement - Robust mechanical components and automatic lubrication reduce wear and simplify routine service
