PE pipes with different pressure classes needed in field telecom communication
Product Details
| Extruder Power (kw): | 37--160AC | Max Capacity: | 110 Kg/hr |
|---|---|---|---|
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Control: | PLC+Touch Screen | Processing Type: | Extruding Machine |
| Origin: | Jiangsu, China | Shipping Port: | Shanghai |
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description
PE pipes with different pressure classes needed in field telecom communication
Application:

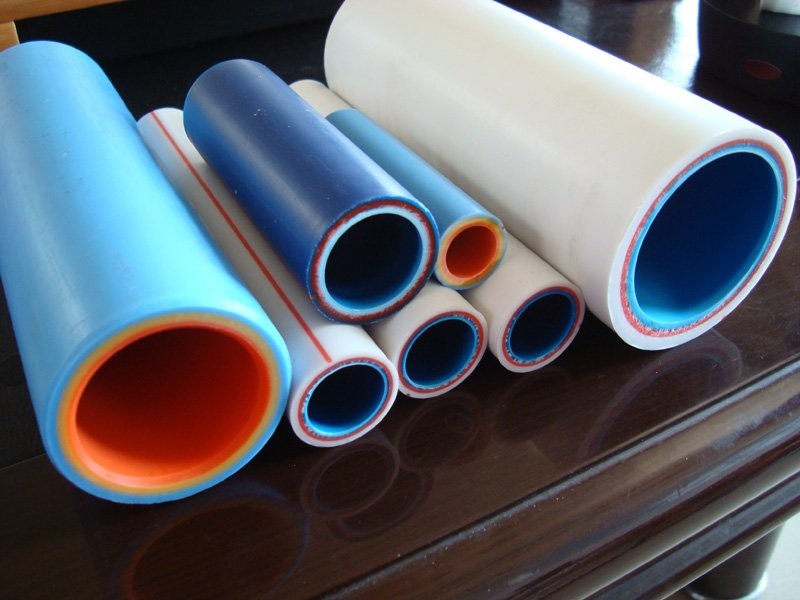

PE pipe extrusion lines are applied for manufacturing PE pipes with different pressure classes needed in field of petrol gas, agriculture, architecture, telecom communication, etc..
Equipment:

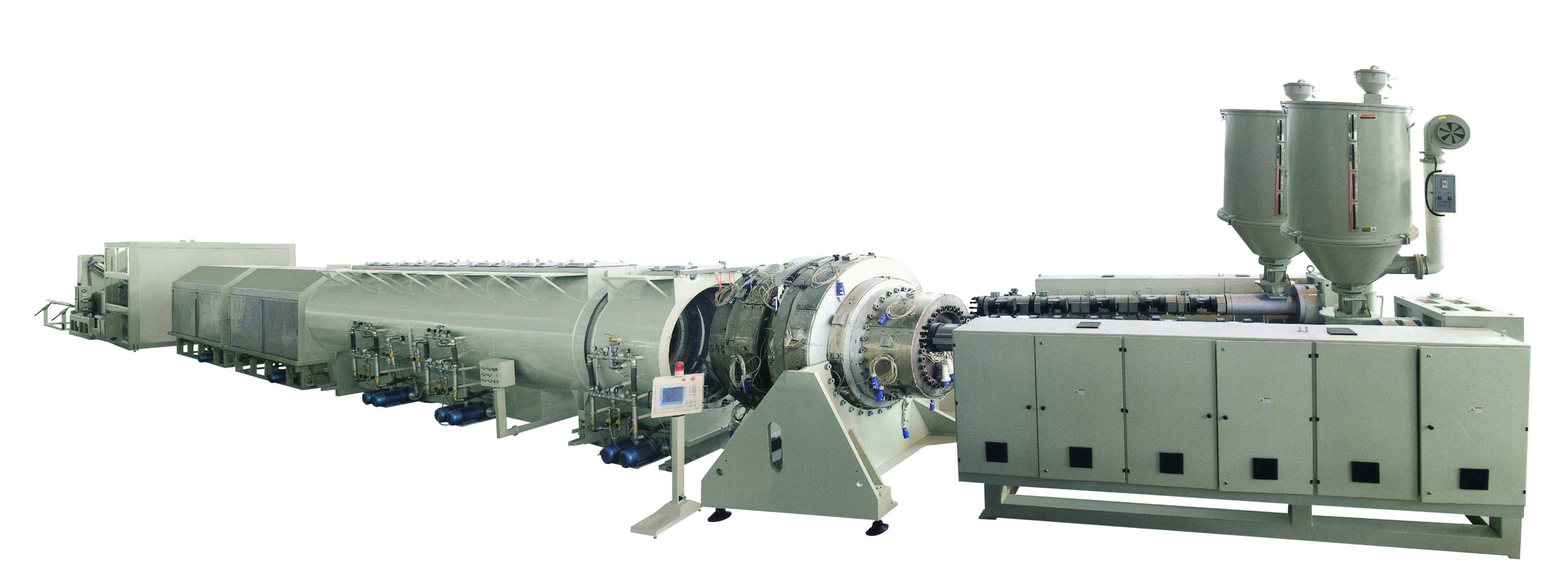

Single screw extruder is the professional equipment to extrude the material of polyethylene. Equipped with different die head, downstream equipment, it can be applied for manufacturing of polyolefin pipe, panel, sheet, film, yarn and pelletizing, etc.. It consists of following items:
- Driving motor: equipped with famous brand motor as driving source.
- Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
- Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel
to get the optimizing plasticizing and capacity. - Control system: equipped with famous brand electrical components ensure to get the accurate control
Specification:
| MODEL | Pipe diameter(mm) | Extruder | Extruder power(kw) | Capacity(kg/hr) |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
