WPC EXRUDER, WPC PROFILE MACHINE, WPC COMPOSITE PROFILE,PVC EXTRUDER, PVC PROFILE EXTRUSION, PLASTIC EXTRUDER
Product Details
| EXTRUDER TYPE: | CONICAL TWIN SCREW EXTRUDER | RAW MATERIAL: | WPC |
|---|---|---|---|
| MOTOR POWER: | 22-55KW | PROFILE SIZE: | 1220MM |
| Temperatur Controller: | Omorn | Application: | WPC Plate |
| Port: | Shanghai, China | Origin: | Jiangsu, China |
| Highlight |
wpc board production line,wpc profile machine |
||
Product Description
WPC EXRUDER, WPC PROFILE MACHINE, WPC COMPOSITE PROFILE,PVC EXTRUDER, PVC PROFILE EXTRUSION, PLASTIC EXTRUDER
COMPONENTS AND FEATURES:

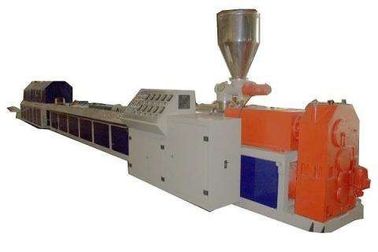

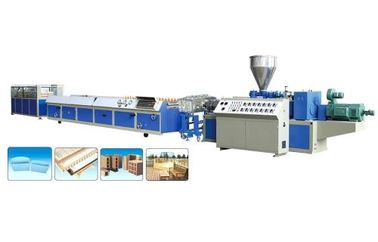

PVC/PE/PP and wood composite profile extrusion lines are applied for manufacturing composite profiles of PVC/PE/PP and wood, such as architecture, decoration in-outside room, transportation stockade, chair and table outside room, etc..
The complete extrusion consists of following items:
- Conical twin screw extruder
- Die head and vacuum calibrating die
- Vacuum table
- Haul-offs
- Cutter
- Tipping chute
- Surface treatment equipment, such as film lamination, printing and stamping, etc..
SPECIFICATIONS:
| MODEL | Profile width (mm) | Extruder | Extruder power (kw) | Capacity(kg/hr) |
| LB-108 | 108 | SJZ51/105 | 18.5AC | 100 |
| LB-180 | 180 | SJZ55/110 | 22AC | 150 |
| LB-300 | 300 | SJZ65/132 | 37AC | 250 |
| LB-600 | 600 | SJZ80/156 | 55AC | 350 |
| LB-800 | 800 | SJZ80/156 | 55AC | 350 |
| LB-1240 | 1240 | SJZ92/188 | 110DC | 800 |
