PVC PIPE SOCKETING MACHINE, PVC PIPE BELLING MACHINE, PVC EXTRUDER, PVC PIPE MACHINE, PVC PIPE EXTRUDER, PLASTIC PIPE

Large Image : PVC PIPE SOCKETING MACHINE, PVC PIPE BELLING MACHINE, PVC EXTRUDER, PVC PIPE MACHINE, PVC PIPE EXTRUDER, PLASTIC PIPE

Product Details:

Place of Origin:	ZHANGJIAGANG, CHINA
Brand Name:	LB
Certification:	CE, ISO
Model Number:	LB-16-630

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD, EUR
Packaging Details:	STANDARD PACKAGE
Delivery Time:	45 WORKING DAYS
Payment Terms:	L/C, T/T
Supply Ability:	15 STS PER MONTH

Contact Now

PVC PIPE SOCKETING MACHINE, PVC PIPE BELLING MACHINE, PVC EXTRUDER, PVC PIPE MACHINE, PVC PIPE EXTRUDER, PLASTIC PIPE

Description

TYPE OF SOCKET:

U & R TYPE

PIPE DIAMETER:

16-630MM

MOTOR POWER:

22KW

OPERATION:

AUTOMATIC

High Light:

automatic socketing machine

pipe expander machine

PIPE BELLING MACHINE

COMPONENTS AND FEATURES:

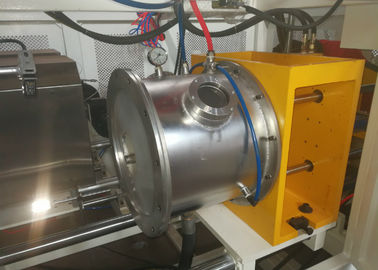

The belling machine is combined with extrusion production of pipes to manufacture the socket end of pipes with type of “U”, “R” and rectangular. The belling processing should be done inside the belling room with vacuum shaping inside core of belling mould and water cooling outside the pipe In order to get the precise socket.

SPECIFICATIONS:

MODEL	Pipe diameter (mm)	Belling way	Cooling way	Socket shape	Control way
LB-40	16-40 (double)	Pneumatic	Blowing air	“U”	Automatic/Manual
LB-200	50 -200	Hydraulic	Water	“U”/“R”/”Rectangular”	Automatic/Manual
LB-250	50 -250	Hydraulic	Water	“U”/“R”/”Rectangular”	Automatic/Manual
LB-400	160-400	Hydraulic	Water	“U”/“R”/”Rectangular”	Automatic/Manual
LB-500	200-500	Hydraulic	Water	“U”/“R”/”Rectangular”	Automatic/Manual
LB-630	315-630	Hydraulic	Water	“U”/“R”/”Rectangular”	Automatic/Manual

PVC PIPE SOCKETING MACHINE, PVC PIPE BELLING MACHINE, PVC EXTRUDER, PVC PIPE MACHINE, PVC PIPE EXTRUDER, PLASTIC PIPE 0

Tag:

pipe expander machine,

pvc pipe socketing machine,

automatic socketing machine

Contact Details

Zhangjiagang Langbo Machinery Co. Ltd.

Contact Person: YIN

Tel: +86 139 2198 6345/ +86 139 2197 4941
