Professional Multi PVC Pipe Extrusion Line 37KW Motor Power High Wear Resistant
Product Details
| PIPE DIAMETER: | 16-63MM | APPLICATION: | WATER PIPE |
|---|---|---|---|
| EXTRUDER MODEL: | SJSZ65/132 | MOTOR POWER: | 37KW |
| CAPACITY: | 250KG/HR | CUTTER: | SAW CUTTER |
| CONTROL: | PLC | ||
| Highlight |
plastic pipe extrusion line,pvc pipe production line |
||
Product Description
TWO STRANDS DIAMETER 16-63MM PVC TUBES MAKING MACHINE LINE
Main Technical Features
1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.
2. Saw cutter and planetary cutter for choice
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Conical twin screw extruder and parallel twin screw extruder for choice
5. Double-strand and four-strand for choice for small pipes
Application of pvc pipe:
pvc pipe mainly use in agricultural and construction water supply-drainage.cpvc pipe due to its special character, widely use in base oil transportation,temperature and corrosion resistance pipe of chemical,hot water supply-drainage pipe and protection pipe of high voltage electricity and electrical cables.
Specification
| Model:SJ45 Ordinary pipe extruding line | ||||
| Item | Unit | Parts | Number | Description |
| 1 | SJ45 Extruder | screw & barrel | 1 set |
Φ45 mm, L/D=25:1, 38CrMoAIA, |
| gear box | 1 set | gear hardening, polished, horizontal | ||
| machine frame | 1 set | Steel structure | ||
| main motor | 1 set | 11 kw frequency varying | ||
| control panel | 1 set | 5 zone temperature control, 4 air cooling | ||

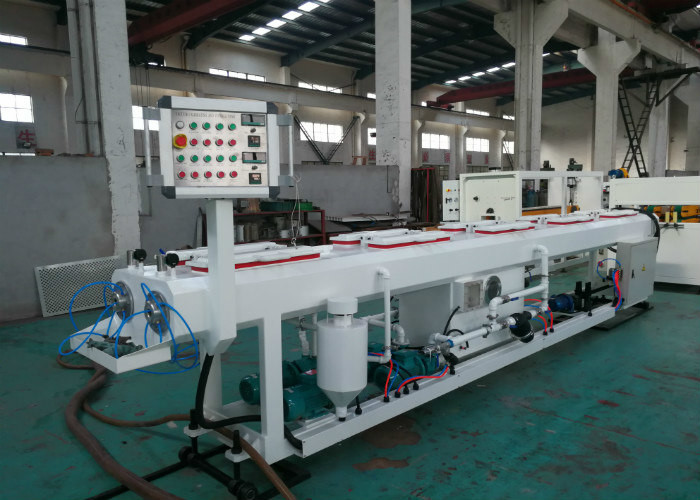

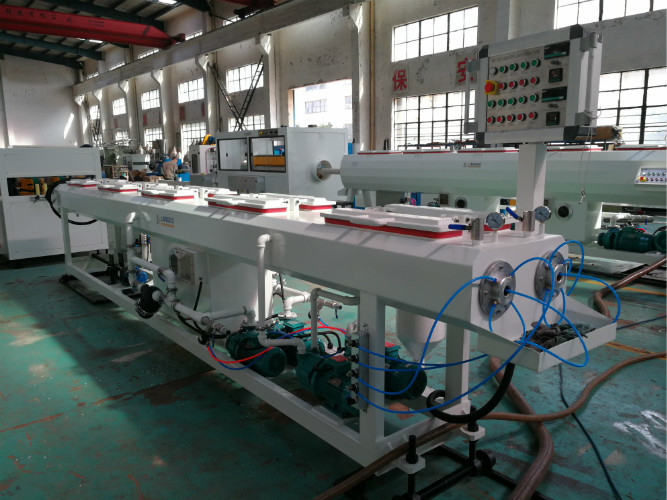

| 2 | Vacuum Sizing Table | 1 set | length: 2.5 meters surface material: stainless steel 3-dimension manual adjustable vacuum pump: 2.2 kw |
|

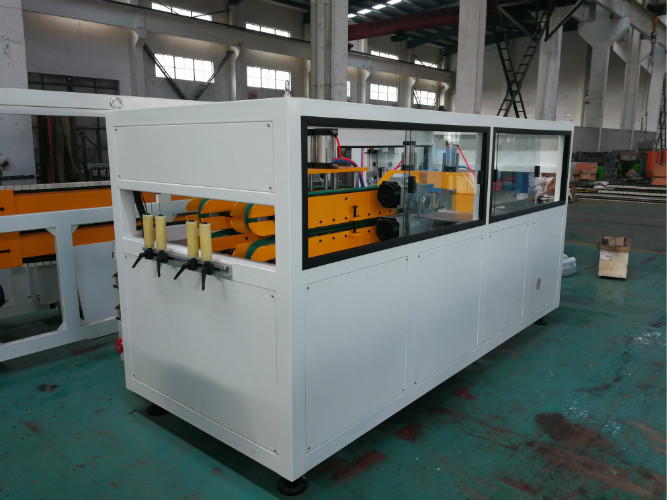

| 3 | Drawing Unit | 1 set | 1.5 kw frequency varying | |
| 4 | Cutting Unit | 1 set | 1.5 kw frequency varying effective length: 3 m automatic discharge rack |
|
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
