Double Strands Plastic Pipe Extrusion Line , High Output PVC Pipe Production Line
Product Details
| PIPE DIAMETER: | 16-63 | EXTRUDER'S POWER: | 37KW |
|---|---|---|---|
| COLOUR: | WHITE ORANGE BLACK | PIPE NUMBERS: | DOUBLE STRANDS |
| RAW MATERIAL: | PVC | APPLICATION: | WATER PRESSURE PIPE |
| Voltage: | Customized | Automatic Grade: | Full-automatic |
| Application: | Pipe | Screw Design: | Double-screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Inverter: | ABB | Color: | Customizable |
| Raw Material: | PVC Powder | Motor: | Brand |
| Highlight |
plastic pipe extrusion line,pvc pipe production line |
||
Product Description

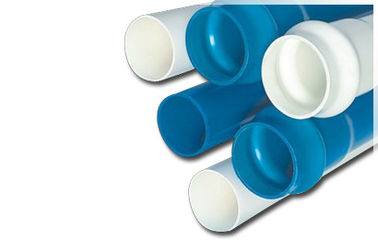

- Water supply and drainage pipelines in buildings
- Rainwater drainage pipelines in buildings
- Electrical wiring conduits in buildings
- Air conditioning condensate water systems
- Product size range: Outside diameter 16-630mm
- Output capacity: 120-800kg/h
- Cooling water temperature: <25℃, inlet pressure >0.3Mpa
- Air pressure: > 0.6Mpa
- Electric power supply: 3Phase/380V/50HZ or customized to requirements
- PVC Mixer for raw material preparation

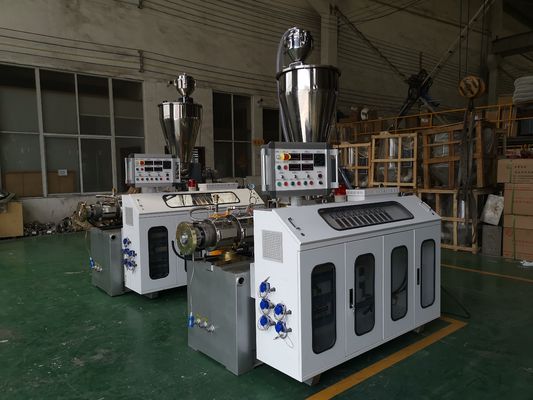

- Conical Twin Screw Extruder

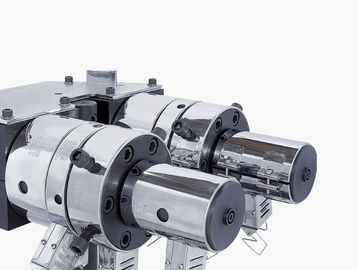

- Extrusion Mold
- Vacuum Tank
- Cooling Tank for large diameter pipes

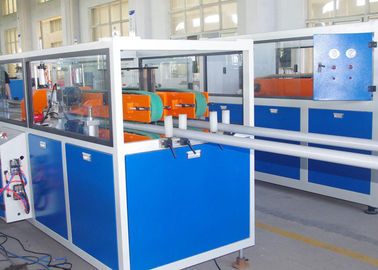

- Haul Off Machine
- Cutting Machine
- Stacker
- Auto Belling Machine for pipe connection
- Crusher and Milling Machine for waste pipe treatment and recycling
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|---|---|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
We provide comprehensive service and support including:
- Machine testing available for customer factory visits
- Complete technical documentation including specifications, installation manuals, operating guides, drawings, and electrical diagrams
- On-site engineering support for installation and worker training upon request
- Spare parts availability with 12-month warranty coverage
- Lifetime technical support for all equipment
