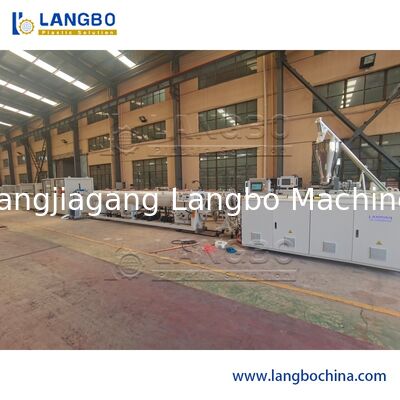

Pressure PVC Pipe Extrusion Line Adjustable Cutting Speed Max 63mm Cutting Pipe

PVC PRESSURE DOUBLE STRANDS PIPE EXTRUSION MACHINE WITH DIAMETER 16-63MM


Application:

*Water drainage and water supply in agriculture field;

*Water drainage and water supply in industry field;

*Wire and electrical cable protection pipe.

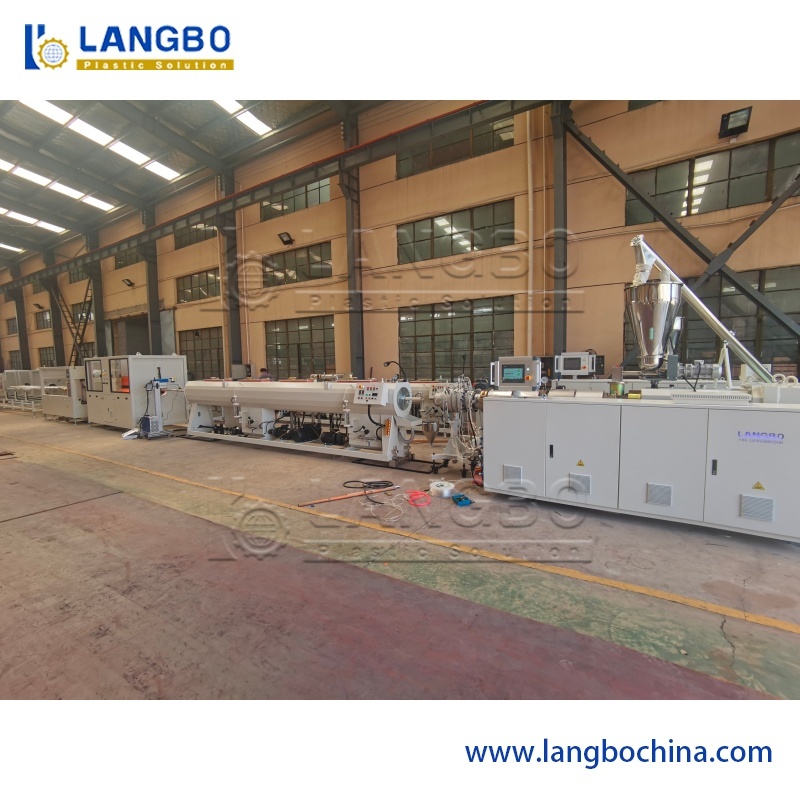

Configuration:

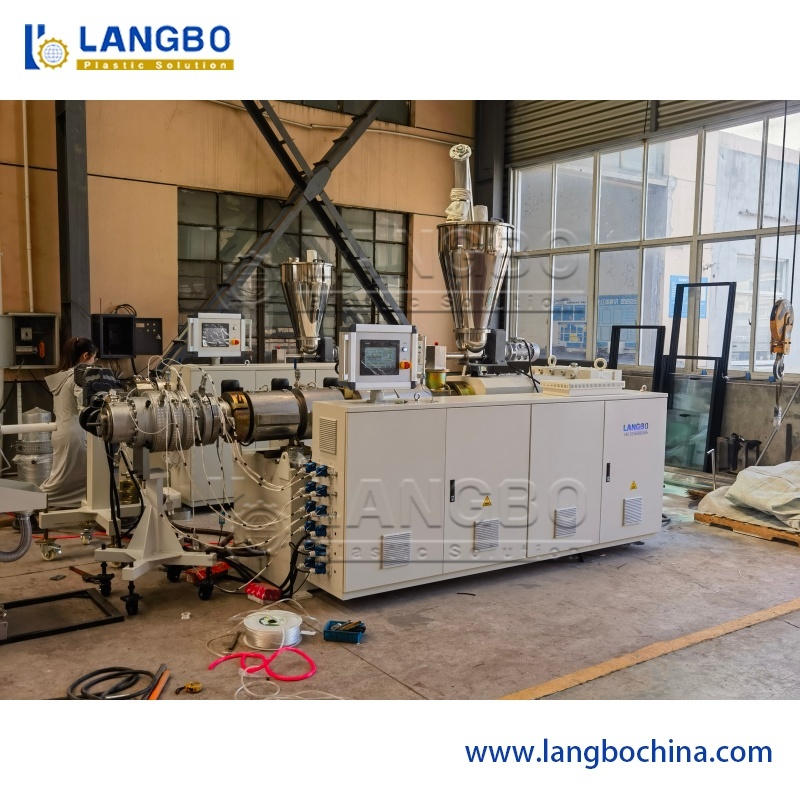

A.Twin-screw extruder

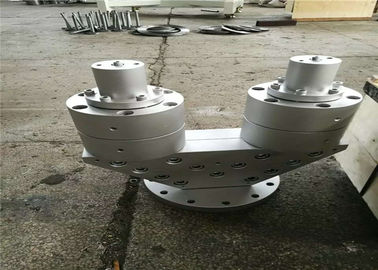

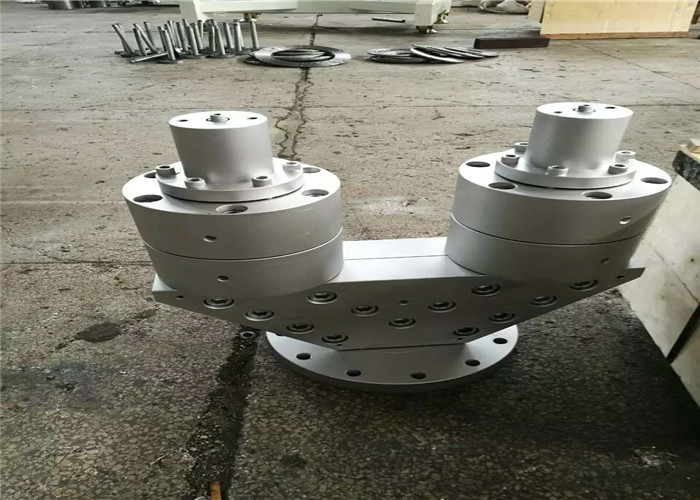

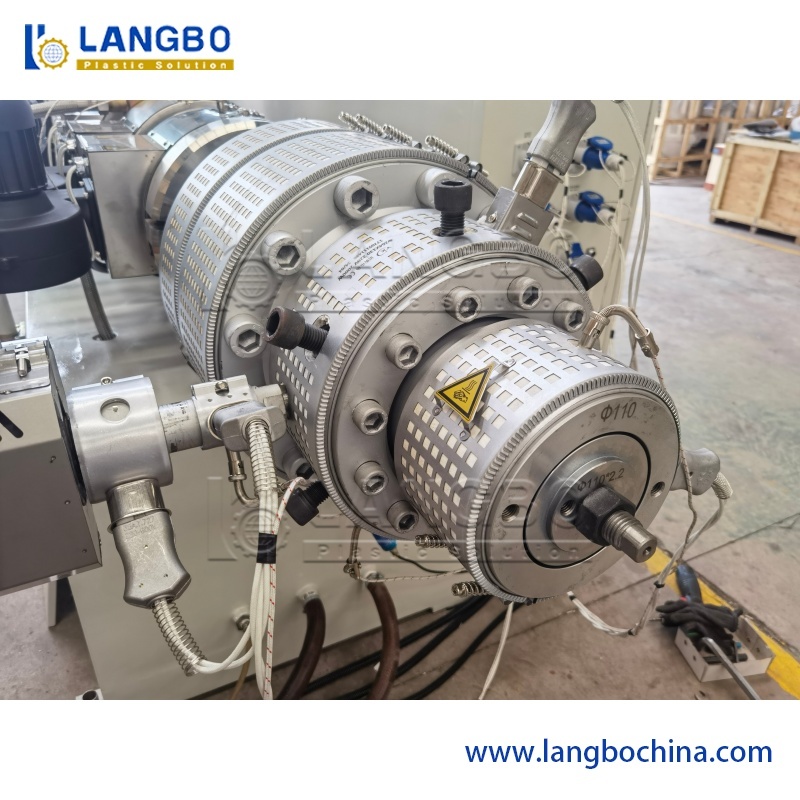

B.Mould

C.Vacuum shaping tank

D.Haul-off machine

E.Cutting machine

F.Stacker

PVC DOUBLE/FOUR strands pipe extrusion line is applied for manufacturing PVC pipe with the pipe diameter of 16-32mm, 16-63mm and different pressure classes that is applied in fields of building, architecture, telecom communication, etc..

The manufacture of high capacity pipes are increasingly feeling the pressure of rising energy and raw material costs. As the result of this, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. The result: a first rate energy balance with high output and pipe extrusion with maximum effectiveness. With extrusion line from LANGBO MACHINERY-everything from one source –you can be on the safe side. We accompany you from the initial idea to the finished product-reliable, competent and fair.

Covering a large range of diameters, we supply vacuum calibration sleeves which are used inside the vacuum tanks for the calibration process.
Features
High wear resistant
Definite outer diameter calibration

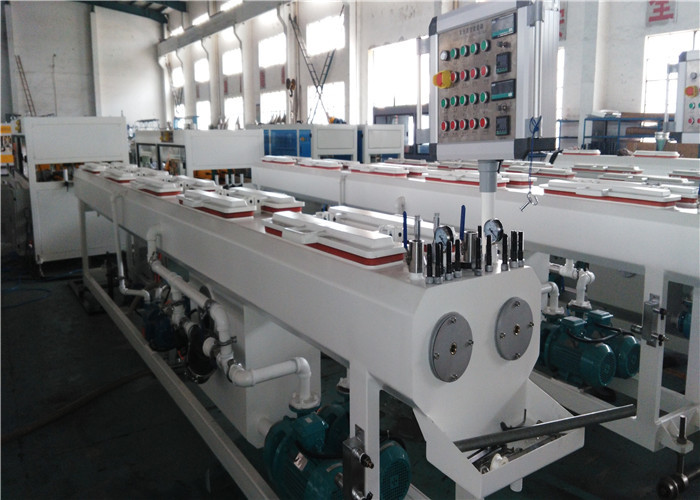

We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 16 to 800 mm. All of our tanks are built in stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.
Stainless steel tank
Motor driven longitudinal movement
Product Range
Diameters from 16 to 800 mm
Vacuum tank length from 6 to 9 mt

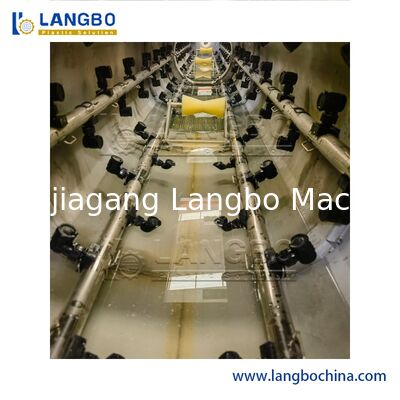

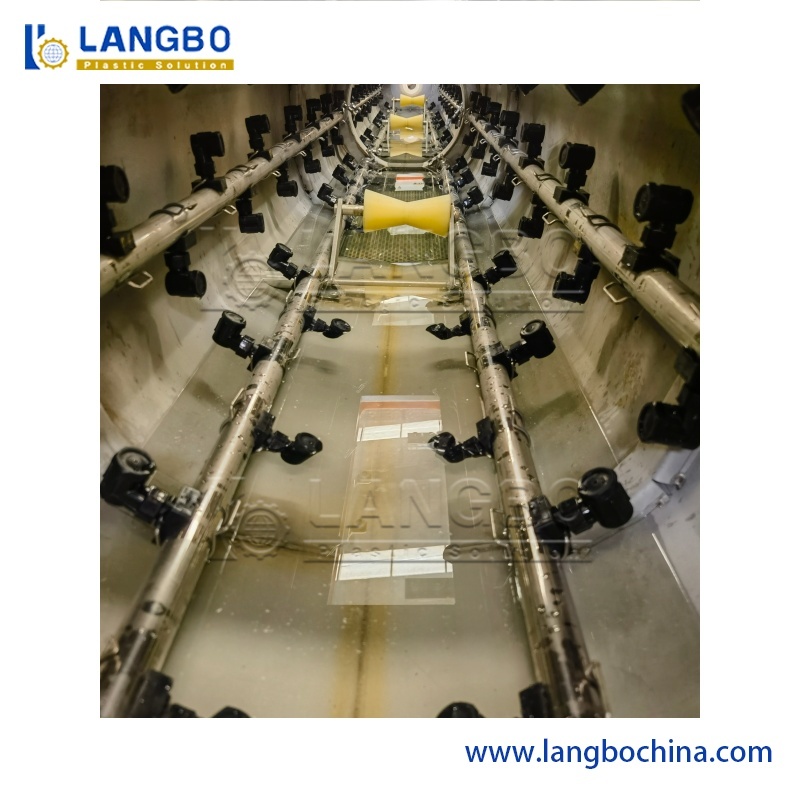

Cooling tanks are manufactured from SUS304 stainless steel. Seals at inlet and oulet of tanks has been developed ase brush seal istead of rubber seals This development let to change diameter more quickly. The pipe support in tanks are roller type supports.

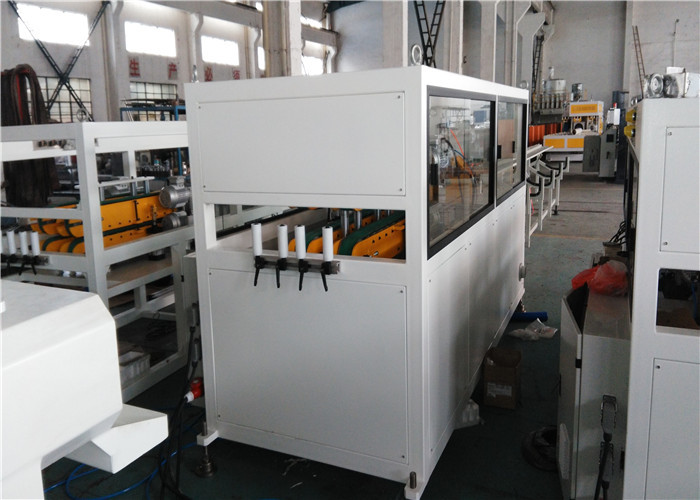

A wide range of haul-off units allows us to supply to the customers the ideal solution for a diameter range of 16 to 800 mm. We supply both caterpillar and belt-type haul-off units on our pipe down streams.
Caterpillar is driven by AC or servo drive
Synchronization with extruder speed
Speed adjustment by inverter
Product Range
Caterpillar tracks from 2 to 8
Several types of cutting units for pipe applications. For medium and large diameter pipes, we supply our planetary cutting units. For small diameter pipes, we offer our guillotine and saw cutter.

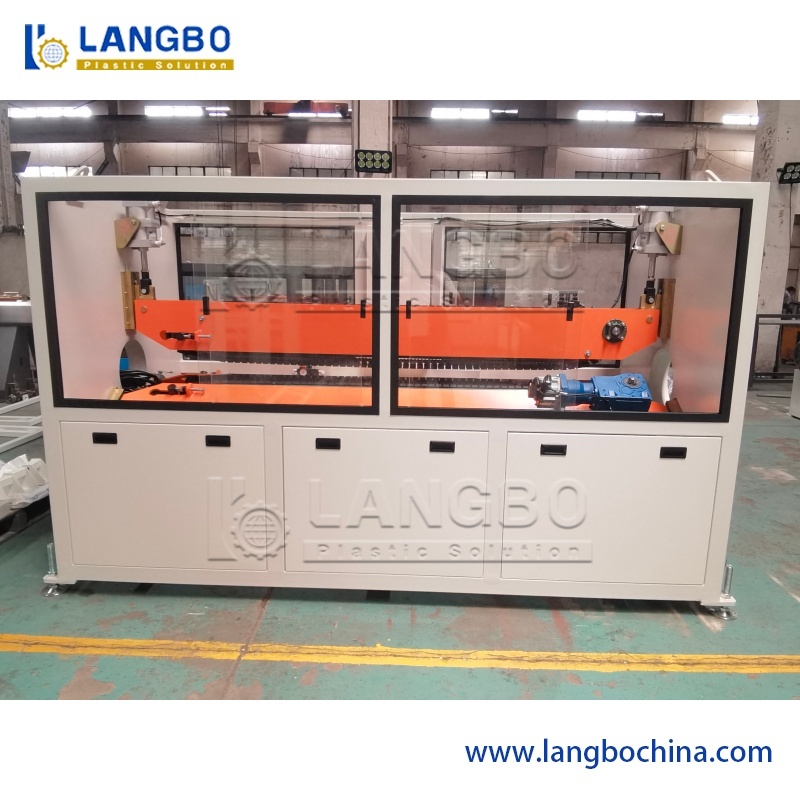

Planetary Cutter:
Cutting and chamfering rigid pipes
Synchronization with extruder speed
Low maintenance cost
Adjustable cutting speed
Product Range: Pipe range from 50 to 800 mm

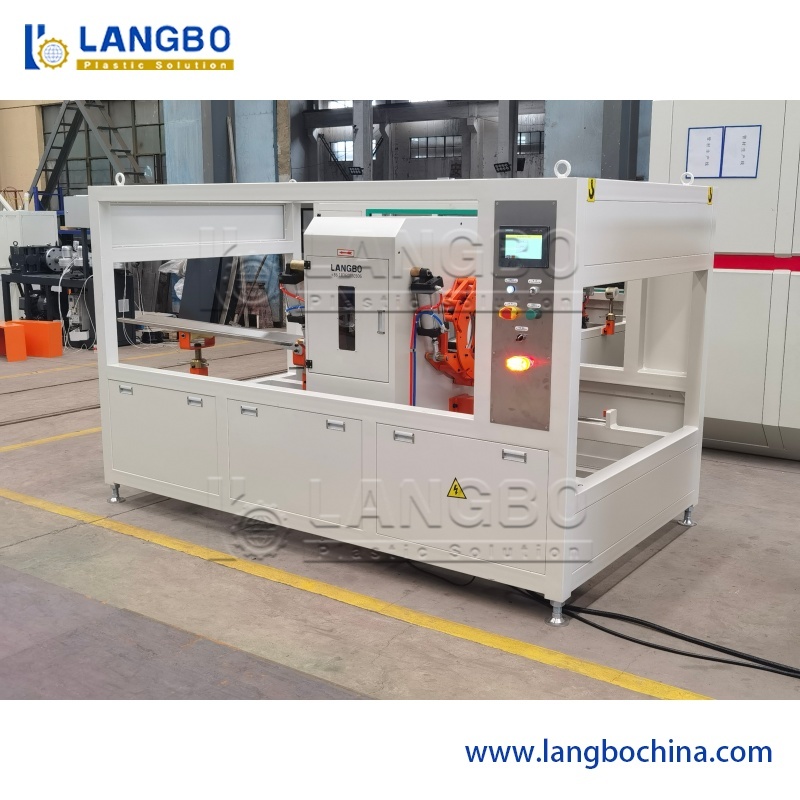

Saw Cutter:
Cutting pipes up to 63 mm
Low maintenance cost
Adjustable cutting speed
Cutting pipes up to 63 mm
Pipe range from 16 to 63 mm
Guillotine Cutter: GK 32 Features
Special design for pipes
Dust and chip-free cutting system
Low maintenance cost
 It operates on pneumatic cylinder.


SPECIFICATIONS:
