Furniture Frame / WPC Profile Extrusion Line With Lamination Equipment

Brand Name: LB
Model Number: LB-800
Place of Origin: ZHANGJIAGANG
Certification: CE,ISO
Minimum Order Quantity: 1 SET
Price: USD,EUR
Supply Ability: 15 SETS PER MONTH
Tags

wpc board production line

wpc profile machine

plastic profile extrusion machine

Product Details

EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 800MM
MOTOR POWER: 55KW RAW MATERIAL: WPC
PROFILE COLOR: LAMINATION CAPACITY: 350KG/H
Highlight

wpc board production line

,

wpc profile machine

Product Description

Conical Twin Screw Extruder
Designed specifically for WPC profile applications, our conical twin screw extruder provides optimal solutions with flexibility in material choices, high performance, and long durability.
Key Features
  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Product Range: Screw diameters 51, 65, 80mm | Outputs from 100 to 400 kg/h
Calibration Tables
Our wide range of calibration tables provides optimal, tailor-made solutions for every application need.
Key Features
  • Motor-driven height and side movement
  • Motor-driven longitudinal movement
  • Manual tilting movement
  • All water-contact parts made of SUS304 stainless steel
  • Low maintenance cost
Product Range: Table length from 4.5 to 14 meters | Vacuum pumps available upon request
Lima Energy Saving System (LESS)
Our energy-saving system provides vacuum energy savings up to 80% with advanced efficiency features.
Key Features
  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Optimized usage according to real production needs
  • Low noise level operation
  • Closed circuit water system for maximum conservation
Crawler Track Haul-off Units
Our haul-off units provide optimal solutions with flexibility in pad dimensions and track lengths, featuring two independent tracks with continuous speed adjustment.
Key Features
  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Continuous speed adjustment by inverter
Product Range: Pad width from 220 to 500 mm | Track length from 1400 to 2000 mm
Cutting Systems
We offer multiple cutting solutions for profile applications including saw (TK-series), guillotine (GK PRO), cross-cut (CC PRO), and blade cutting (BK-series) systems to meet diverse production requirements.
Saw Cutter Features
  • Different saw dimensions for special profiles
  • Low maintenance cost
  • Integrated dust absorber unit
  • Adjustable cutting speed
  • Cutting width up to 800 mm
Product Range: Cutting height from 10 to 100 mm
Tilting Table
Our tilting tables feature stainless steel construction and pneumatic tilting systems for efficient profile handling.
Key Features
  • Stainless steel table material
  • Pneumatic tilting system
Product Range: Standard length 6 meters | Custom lengths available upon request | Roller-type tables available for specific profile geometries
Complete Extrusion Line Components
Conical Twin Screw Extruder
Special screw and barrel design provides perfect mixing and homogeneous material processing. Features driving motors for minimal electricity consumption and PLC automation with touch panel control.

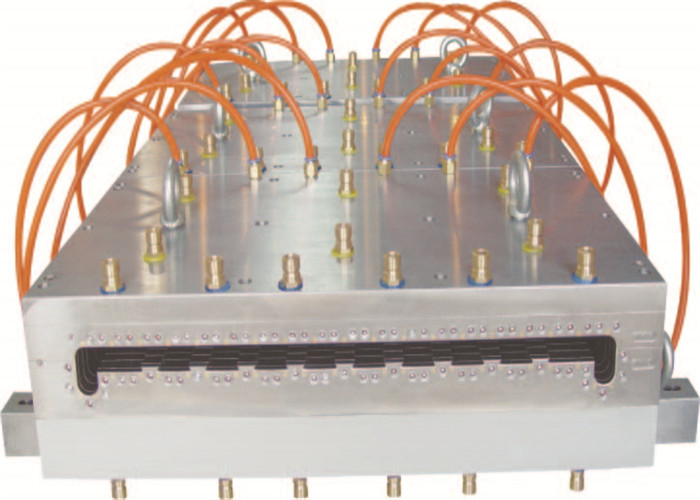

Mould
Our mould design provides ideal viscosity to melt material for profile production. All plastic-contact surfaces are polished to minimize friction losses.
Calibration Table
Designed for specific profile types and characteristics, featuring stainless steel water-contact areas to prevent corrosion during calibration and cooling processes.

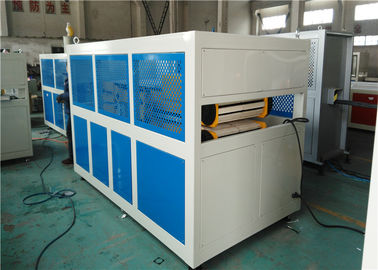

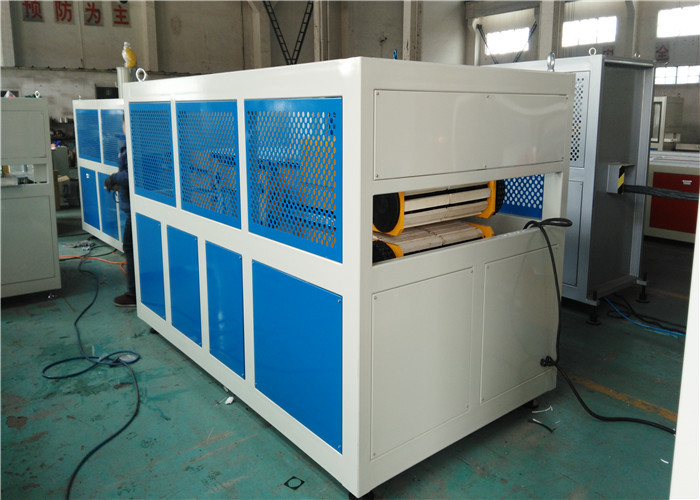

Crawler Track Haul-off
Inverter-controlled haul-off systems with adjustable speed matching material output rates, capable of measurement adjustments through speed control equipment.
Saw Cutter
High-efficiency cutting with synchronized saw table and clamp movement. Integrated dust collection unit effectively removes swarf and dust from the production area.
Tip-off Unit
Pneumatic cylinder operation for efficient profile handling.

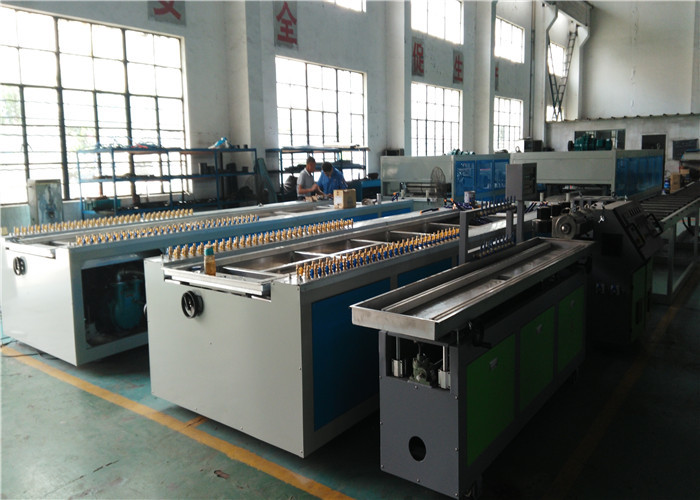

WPC furniture frame extrusion line equipment overview Close-up view of extrusion line calibration system Extrusion line cutting and haul-off unit operation

Product Highlights

Conical Twin Screw Extruder Designed specifically for WPC profile applications, our conical twin screw extruder provides optimal solutions with flexibility in material choices, high performance, and long durability. Key Features High flexibility in raw material combinations Gentle and homogeneous ...
