Optimal Solution Wood Plastic Composite Machine

Optimal Solution Wood Plastic Composite Machine
Optimal Solution Wood Plastic Composite Machine Optimal Solution Wood Plastic Composite Machine Optimal Solution Wood Plastic Composite Machine Optimal Solution Wood Plastic Composite Machine

Large Image :  Optimal Solution Wood Plastic Composite Machine

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-1240W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Optimal Solution Wood Plastic Composite Machine

High Light:

wpc board production line


wpc profile machine

Optimal Solution Wood Plastic Composite Machine



LANGBO MACHINERY is a company that makes manufacture of PVC/WPC profile machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.


We offer a wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.


Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts that are in contact with water is made of stainless steeL

Product RangeLow maintenance cost

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request


Focusing on the energy saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.


Vacuum energy savings up to 80%

Vacuum pumps are driven by individual frequency

Inverters in order to use them according to the real need

Low noise level

Closed circuit to save as much water as possible during the extrusion process

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request


On our caterpillar haul-off units, we provide the optimal solutions for the customer’s needs with the advantage of flexibility in pad dimensions and track lengths. Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.


Flexibility in pad dimensions

Two independent tracks with gearboxes

Speed adjustment by inverter

Product Range

Pad width range from 220 to 500 mm

Tracks length from 1400 to 2000 mm

Extrusion offers two types of cutting units for profile applications: Saw (TK-series) and guillotine (GK PRO) cutting systems. Depending on the customer’s preference, we can install these units in our integrated haul-off and cutting combination or supply separately. As option, for window sill and similar wide panel profiles, we also supply cross-cut system (CC PRO) for cutting profiles into smaller measurements in width. In addition to these units, our blade cutting unit (BK-series) is ideal for cutting profiles with a max. height of 8 mm, without any dust and chips.


Saw Cutter


Different saw dimensions for special profiles
Low maintenance cost

Includes dust absorber unit

Adjustable cutting speed

Cutting width from up to 800 mmProduct Range

Cutting height from 10 to 100 mm



The complete extrusion consists of following items:

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Mould:

Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

  • Calibration Table:

The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.

  • Caterpillar Haul-off:

The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.

  • Saw cutter:

In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.

During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.


  • Tip-off unit:  It operates on pneumatic cylinder.

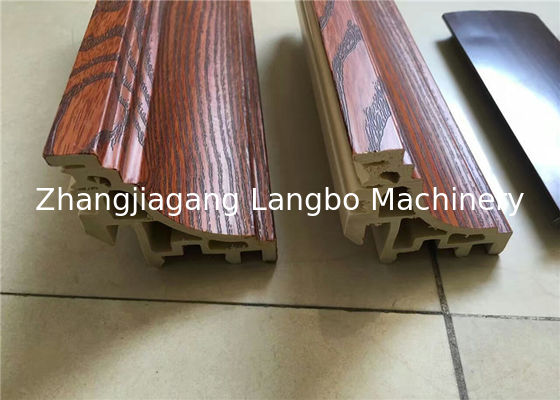

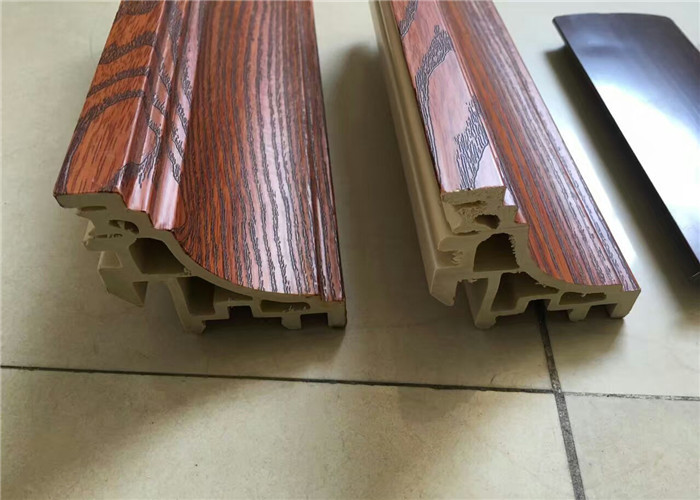

Our extruder lines allow our clients to produce a wide range of PVC and WPC profiles with the following specifications::

LB-108 108 SJZ51/105 18.5AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188

110 D
