Window Sill Board PVC Profile Machine , Optimal Solution Sheet Extrusion Line

PVC WINDOW SILL BOARD COMPLETE EXTRUSION MACHINE WITH OPTIMAL SOLUTION

COMPONENTS AND FEATURES:

For the past few years profile extrusion system which used for PVC and WPC profile, are developed significantly in the light of technological improvements. Focusing on higher quality, longer durability and energy-saving systems, as a result of market circumstance and production conditions. LANGBO MACHINERY targets to provide the optimal solutions for the demand and needs of the industry.

• We offer a wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.

Features

Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts that are in contact with water is made of stainless steel

Low maintenance cost & Product Range

Table length from 4,5 to 14 mt

vacuum pumps can be added upon request

Focusing on the energy-saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.

Features

Vacuum energy savings up to 80%

Vacuum pumps are driven by individual frequency

Inverters in order to use them according to the real need

Low noise level

Closed-circuit to save as much water as possible during the extrusion process

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request

• Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

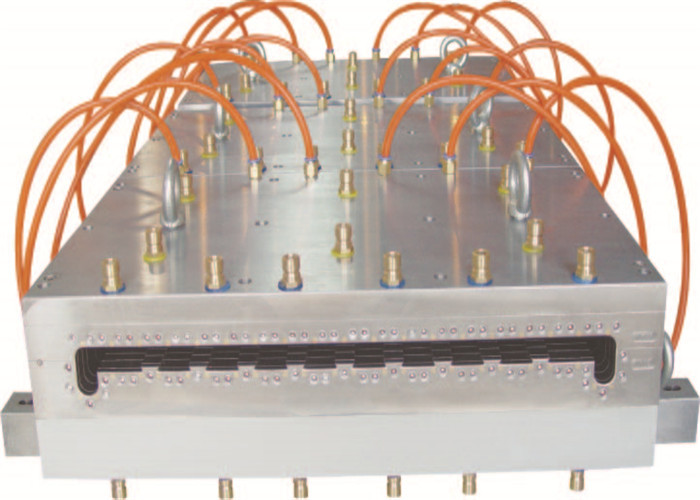

• Mould:

Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

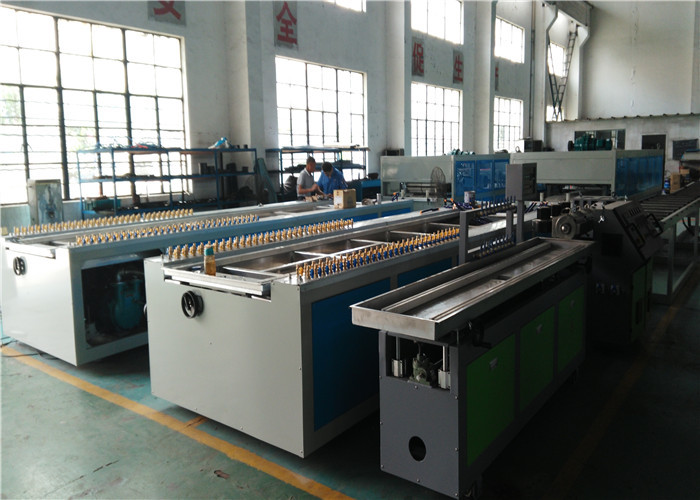

• Calibration Table:

The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.

• Caterpillar Haul-off:

The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.

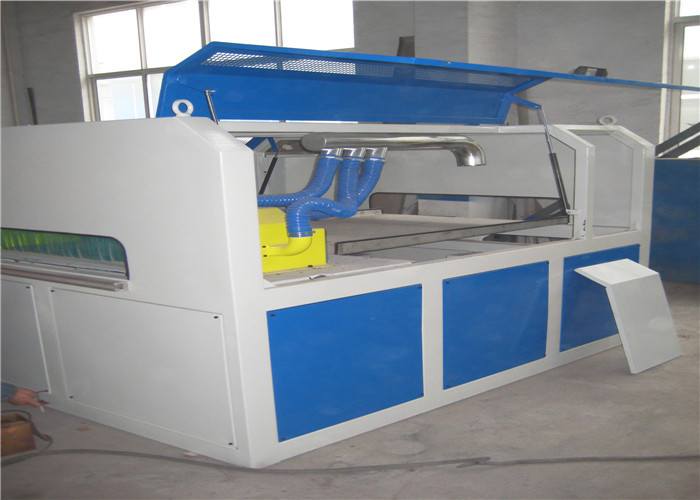

• Saw cutter:

In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.

During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.

• Tip-off unit:  It operates on pneumatic cylinder.

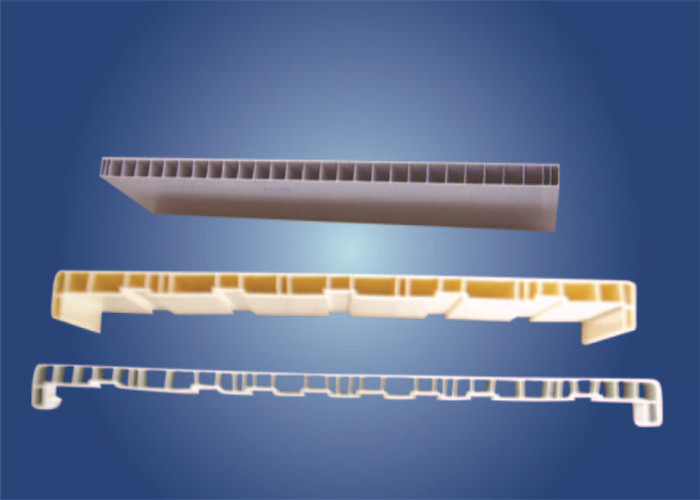

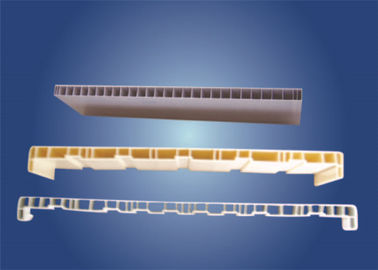

Our extruder lines allow our clients to produce a wide range of PVC and WPC profiles with the following specifications:

For further technical information, please no hesitate to contact us.

We provide professional, customer modified system solutions for your company.
