|PIPE DIAMETER:||16-63||APPLICATION:||SEWAGE PVC PIPE|
|EXTRUDER MODEL:||SJSZ63/132||MOTOR POWER:||37KW|
|PIPE COLOUR:||WHITE, ORANGE, BLANK||PLC:||FULL AUTOMATIC|
pipe expander machine,
pvc pipe socketing machine

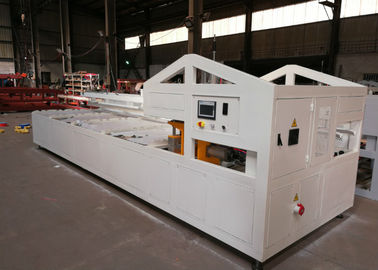

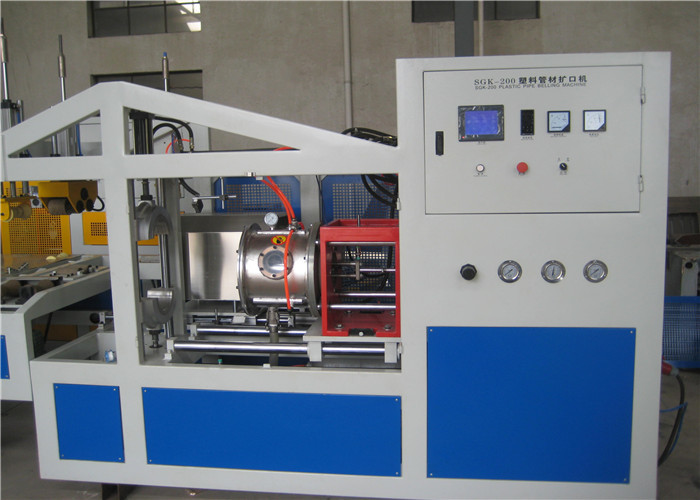

FULLY AUTOMATIC BELLING MACHINE FOR PVC WASTED WATER AND SEWAGE PIPE
COMPONENTS AND FEATURES:
LANGBO MACHINERY operates in the manufacturing of plastic extrusion machines and systems for over many years and it is the reliable solution partner from planning and process engineering for the optimum solution through set-up, start-up and operation of extrusion systems.
Applications include plastic profile, pipe and pelletizing extruders or complete extrusion lines. All machines and lines are tailor-made according to the customer’s demands and needs.
We always aim to provide high performance extruders and energy efficient systems as well as reliable and fast spare parts delivery, service and support.
Special designing of this machine with the necessary adaption of tools PP and PVC wasted water and sewage pipes bas been made possible. The fully automatic machine that is running in line.
With the special design of this machine is very high capacity production is possible. It can also produce 150cm pipe. also depending on customer requests we also manufacture special manual belling machine
The belling machine is capable of belling PE,PP,PVC pipes and sizes can be specified in international standards.
By working synchronous with pipeline, without any human intervention machine can take pipes from the line then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe line.
LB-32 is the model that has the highest capacity. For this model, the diameter range of 16-32mm, it is designed to produce 4 sockets per cycle.
LB-63 is the model that has the highest capacity as well. For this model, the diameter range of 16-63mm, it is designed to produce 2 sockets per cycle.
|MODEL||PIPE DIAMETER (MM)||BELLING||COOLING||SOCKET SHAPE||CONTROL|
|LB-32||16-32 (FOUR PIPES)||Pneumatic||Air blowing||“U”||Automatic|
|LB-63||16-63 (DOUBLE PIPES)||Pneumatic||Air blowing||“U”||Automatic|
|LB-200||50 -250||Hydraulic||Air / Water||“U”/“R”/”Rectangular”||Automatic|
|LB-400||160-400||Hydraulic||Air / Water||“U”/“R”/”Rectangular”||Automatic|
|LB-500||250-500||Hydraulic||Air / Water||“U”/“R”/”Rectangular”||Automatic|
|LB-630||315-630||Hydraulic||Air / Water||“U”/“R”/”Rectangular”||Automatic|
