PE Pipe Extrusion Line High Performance 45 - 160mm Screw Diameter
Product Details
| Extruder Power (kw): | 37KW | PIPE DIAMETER: | 16-32MM |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | PEX PIPE |
| MARK LINE: | SINGLE SCREW EXTRUDER | SCREW DIAMETER: | 65MM |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Highlight |
pe pipe production line,plastic pipe extrusion machine |
||
Product Description

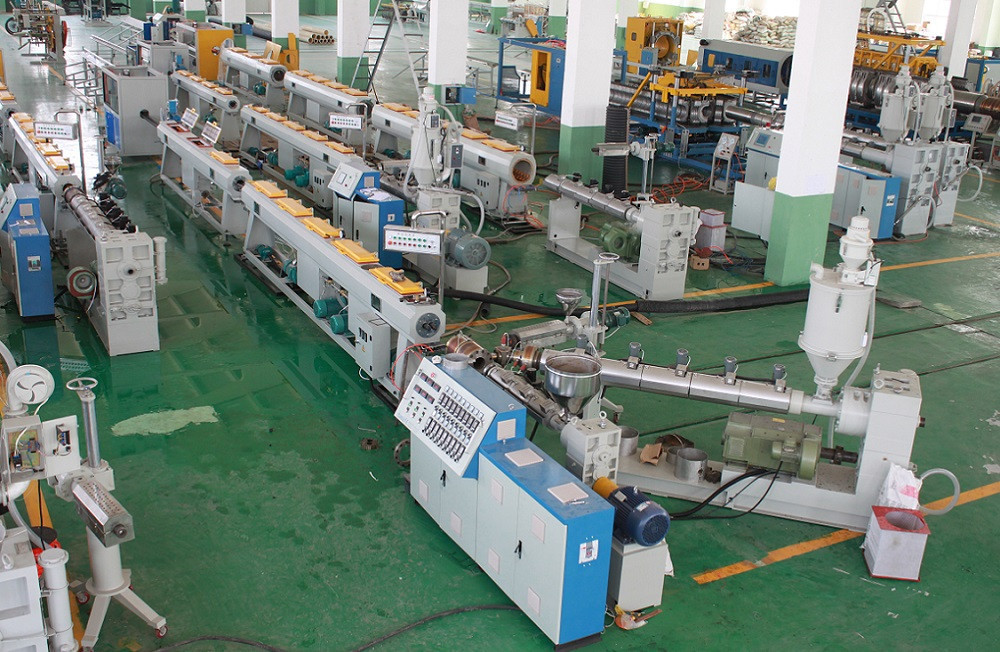

HDPE PIPE PRODUCTION LINE WITH SINGLE SCREW EXTRUDER & GUILLOTINE CUTTER
The pe pipe Extrusion machine including the deviced auxiliary machines as follow:
1. The single screw extruder has high torque motor producing high capacity
2.The die is basket mould with low pressure extruding stable.
3. The vacuum sizing table with the strong spray cooling system with different efficient length acording to the different diameter of pipe.
4.The spray cooling tank has the cooling system with high speed, instead of the traditional cooling tank.
5.The haul-off machine speed is up to 35m/min if the pipe diameter is 20--63mm

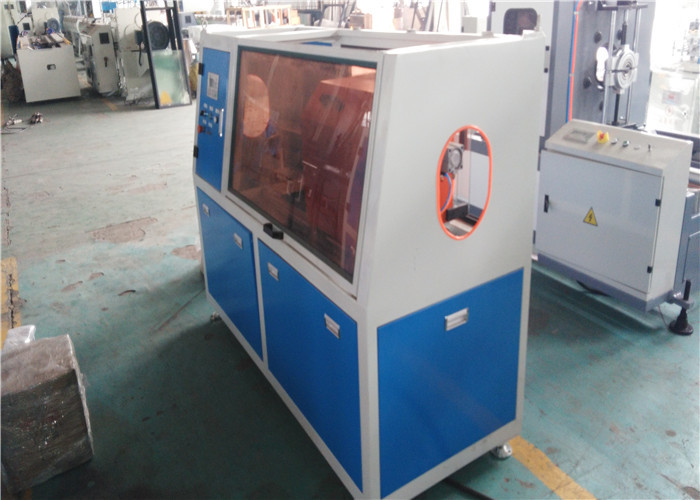

6.We have offered three specifications cutting machine, the planetary cutter is suitable for more diameter 160mm pipe with high speed rotating. The dustfree cutting machine is for less 63mm pipe, not wasting sawdust. The annulus cutting device is for less 160mm pipe with better hot melt.

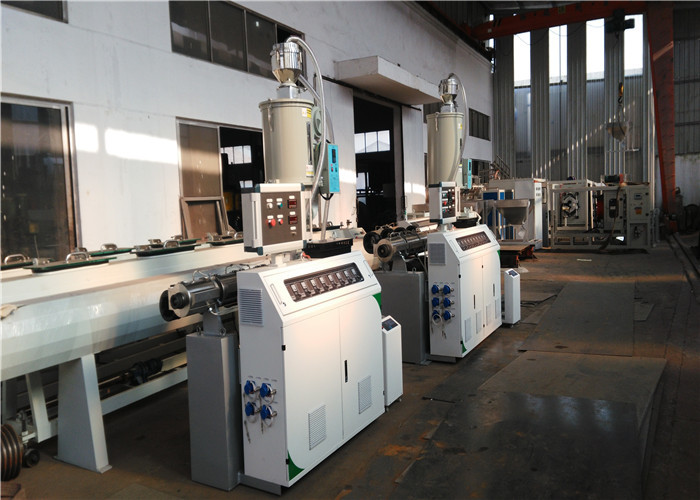

The Single Screw Extruder is designed for the PE and PP pipe applications.
We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
High flexibility in raw material combinations
Gentle and homogeneous plastification
Different screw geometries for customer’s special needs
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters from to 45 to 160 mm
L/D ratios from 30:1 to 36:1
Outputs from 85 to 1650 kg/h
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER |
| LB-63 | 20-63 | SJ65/33 | 55AC |
| LB-110 | 20-110 | SJ65/33 | 55AC |
| LB-160 | 75-160 | SJ75/33 | 90AC |
| LB-250 | 90-250 | SJ75/33 | 110DC |
| LB-315 | 110-315 | SJ90/33 | 160DC |
| LB-450 | 160-450 | SJ90/33 | 160DC |
| LB-630 | 315-630 | SJ120/33 | 280DC |
| LB-800 | 500-800 | SJ150/33 | 315DC |
| LB-1200 | 710-1200 | SJ150/34 | 400DC |
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.
| Volumetric and gravimetric dosing units |
| Raw material loading units |
| Belling machines |
| Corrugators |
| Ink jet marking units |
| Winding units |
| Tilting tables |
