PVC Pipe Extrusion Line Double Screw 220 - 415V Input Voltage
Product Details
| Screw Concept: | Conical Twin-screw | Power Of Extruder: | 22KW-160KW |
|---|---|---|---|
| Machine Color: | Customer Individual | Size Of Pipe Product: | 16-630MM |
| Voltage: | 220-415V | Application Of Pipe Product: | Wasted Water, Cover Of Electrical Wire Etc |
| Components: | Extruder, Calibration, Cooling, Haul-off, Type Printing, Cutting And Stacking | Warranty: | Core Components 1 Year |
| After Sale Service: | On-site Commission | Brand Of Temperatur Sensor: | Omron |
| Brand Of Inverter: | ABB | Origin: | Jiangsu, China |
| Shipping Port: | Shanghai | Certification: | CE ISO |
| Instruction Manual: | Yes | ||
| Highlight |
plastic pipe extrusion line,pvc pipe production line |
||
Product Description
PVC Pipe Extrusion Line Double Screw 220 - 415V Input Voltage
PVC pipe extrusion line / PVC water pipe making machine / PVC pipe extrusion plant is a kind of special equipment for extruding PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, and granulation. The screw has an applied oil cooling system. The barrel is cooled by special wind cooling system. The system has applied special computer control. according to the customer's requirements, the most reasonable screw can be made so as to achieve the best plasticity state and material quality.

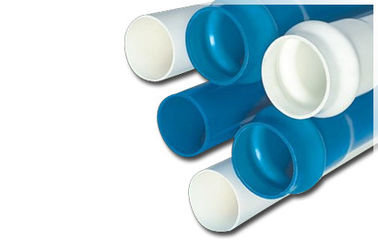

Advantages of PVC pipes:
1. Excellent in chemical corrosion, no rust;
2. With self-extinguishing and flame retardant;
3. Excellent in anti-aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, the linear expansion coefficient is high, the operating temperature range is narrow.

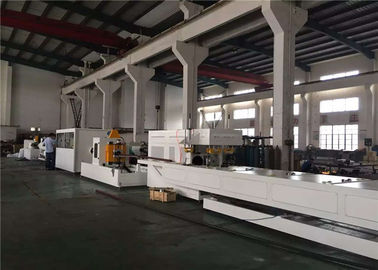

PVC pipe extrusion plant
and constructional plumbing cable laying etc. Our PVC pipe extrusion line has features of low consumption, high output, stable running.

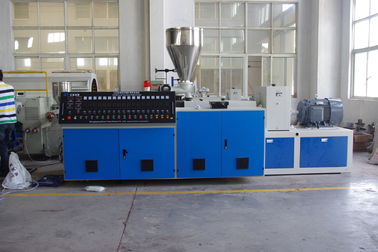

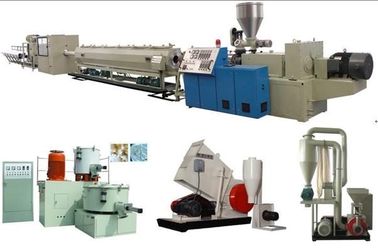

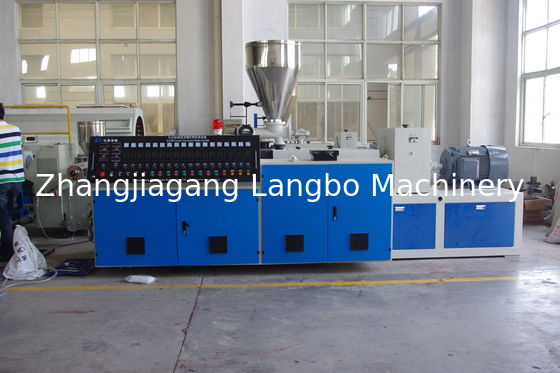

Normal PVC pipe extrusion line includes: feeder, SJZ series conic twin screw extruder, mould,vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker. Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
Application of PVC pipes:
1. Water supply, drainage pipelines in a building;
2. Rainwater drainage pipelines in a building;
3. Electrical wiring pipe in a building;
4. Air conditioning condensate water systems.
Technical Parameter:
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Rotating speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Capacity(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
