PIPE DIAMETER: | 16-630 | EXTRUDER'S POWER: | 22KW-160KW |
---|---|---|---|
Voltage: | 3 Phase 380v 50hz | Inverter: | ABB |
CONTROL: | PLC | APPLICATION: | WASTED WATER |
BELLING MACHINE: | NEEDED | ||
Highlight: | plastic pipe extrusion line,pvc pipe production line |
CE PVC Pipe Extrusion Line For Water / Waste Pipe Automatic Control
Components of a Production line:

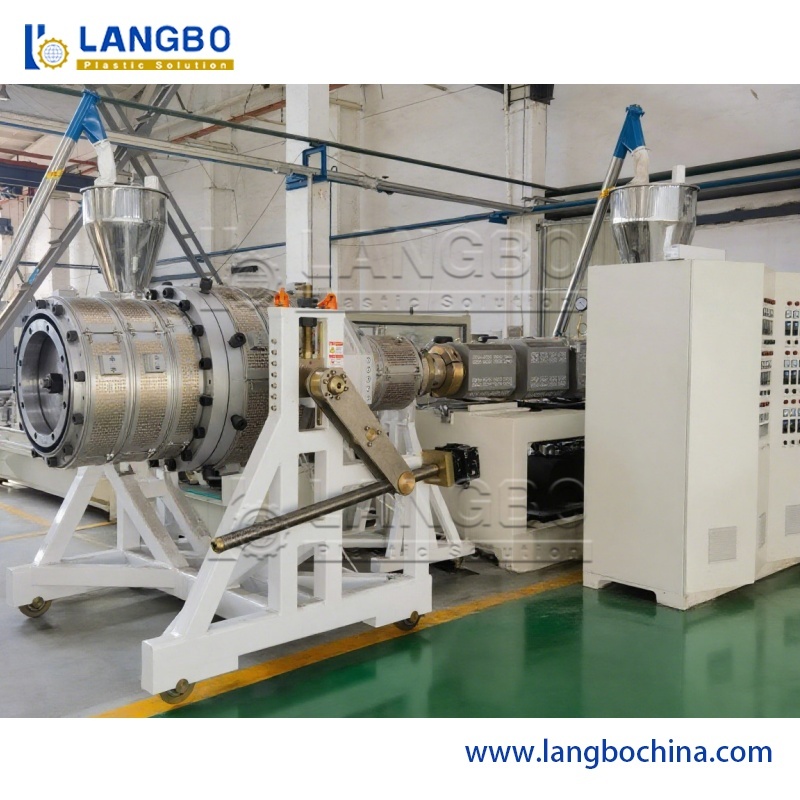

1. Screw:
Type: Evolution screw High-strength steel nitride, electroplated hardness chrome.
Material: 38CrMoALA alloy steel
2. Barrel:
High-strength alloy nitride, high-precision machining with a round grinding, hard chrome plating
Barrel cooling method: air-cooled
Cylinder wall: to prevent the resin burned, required wall surface treatment
3. Driving devices:
High-precision worm gear reducer high efficiency and low noise
Main heating:
High efficiency heater
Solid-state relay control
Germany SIEMENS PLC temperature control module (PROGRAMMABLE LOGIC CONTROLLER)
Germany SIEMENS PLC Inverter Motor Speed Control Module
German SIEMENS HMI HMI (HUMAN MACHINE INTERFACE)
Taiwan more than wing ultra quiet high-efficiency air-cooled fan control
Extruding mould: 1 set (contain one type of product)
Die lip: one
Core bar: one
Calibration unit: one

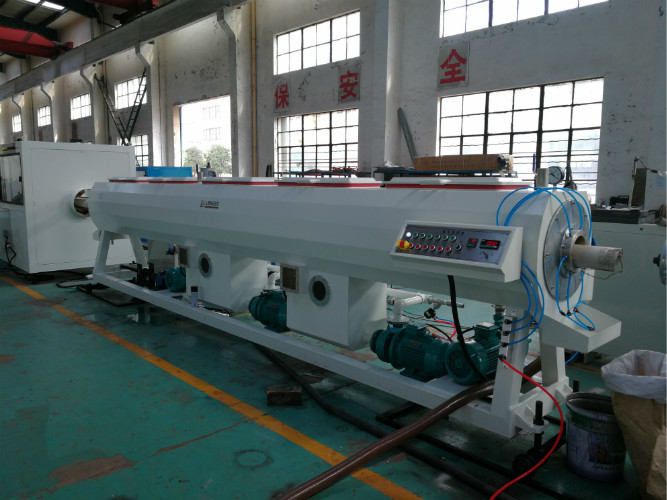

4. Vacuum calibration trough
Length of trough: 4M
Main body of the trough: 304# stainless steel, treated with bended and welded.
Material of the trough Cover: high strength and transparent steel glass
Vacuum chamber: consists of 1.5kw vacuum pump, stainless steel chamber.
Tri-dimension movable water tank stand

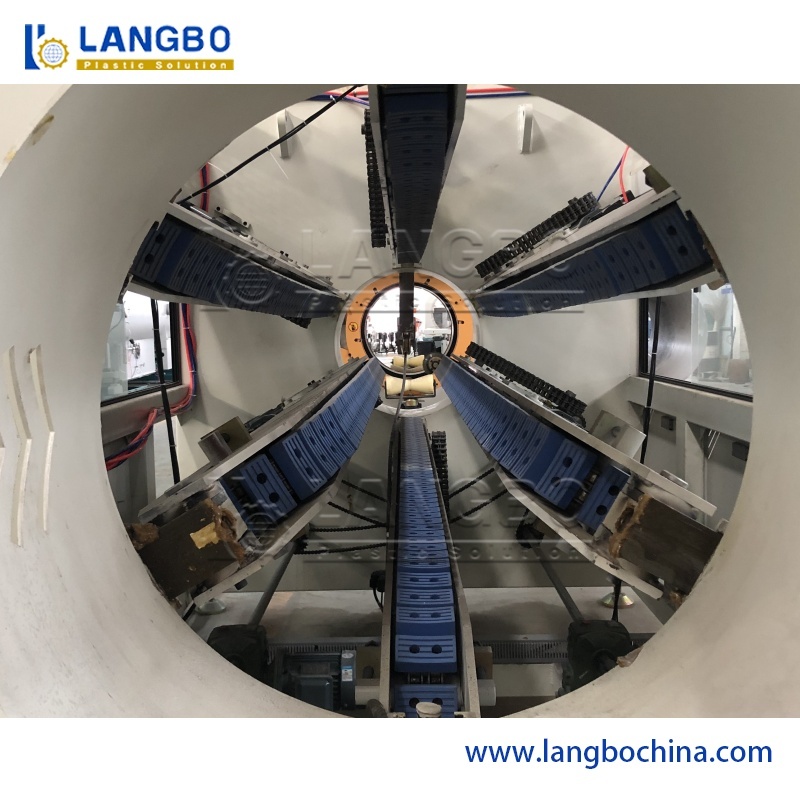

5. Haul off machine
High effective and stable hauling off with the wedge-shaped strap, the surface coving the foam PU
High effective and stable reducer transmission
Mitsubishi high-precision servo motor drive (SERVO MOTOR)
Mitsubishi high-precision servo controller (SERVO MOTOR CONTROLLER)
Japan NEMICON rotary encoder feedback control (ROTARY ENCODER)
6. Cutter
Aluminum alloy with low inertia rotary knife arm
Mitsubishi high-speed high-precision low inertia servo motor-driven response (SERVO MOTOR)
Mitsubishi Servo Controller (SERVO MOTOR CONTROLLER)
Japan's Mitsubishi PLC controller to cut off the length of products
Product length tolerance: ± 1mm-1.5mm
Our Service:
1. Formula support:
We provide a basic formula to our customers for each project.
And our engineers will help customers to do formula adjustments according to requirements.
2. Installation support:
Our engineer will help customers to install the machines in the Customer’s factory.
3. Operation support:
We provide machine operation and maintenance training for our customers.
4. Fast response:
We provide our after-sales service 7x24h
Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
Max. Rotating speed(rpm) | 40 | 38 | 38 | 37 | 36 |
Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
Capacity(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
