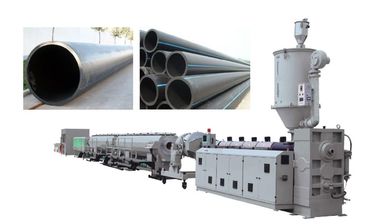

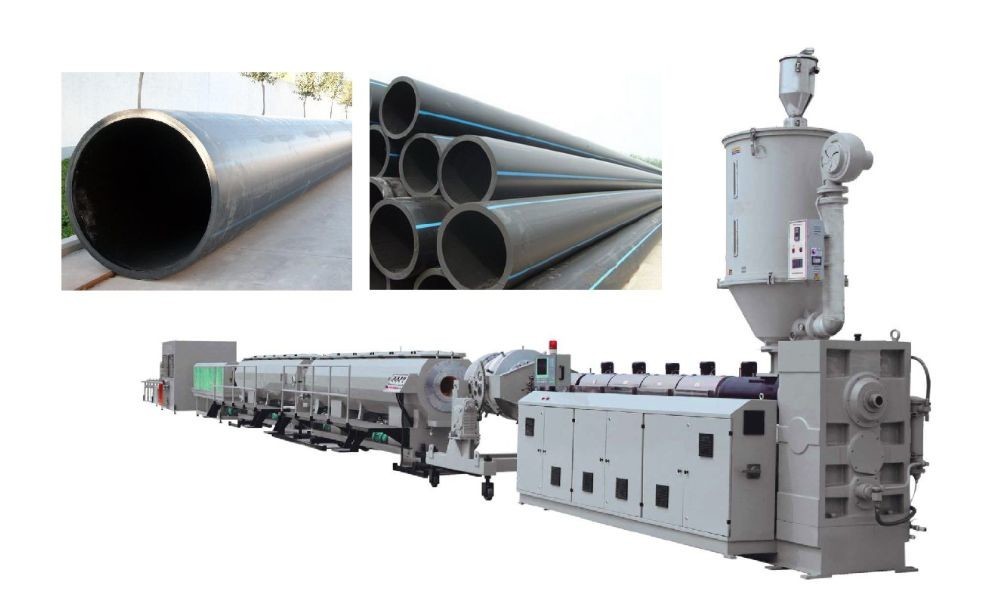

High Speed HDPE Pipe Making Machine , Capacity 350KG/H HDPE Extruder Machine
Product Details
| Voltage: | 380V/220V | Condition: | New |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | Outlet: | Single Outlet |
| Pipe Range: | 16-110mm PE Pipe | Capacity: | MAX. 350KG |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | ||
| Highlight |
hdpe pipe production line,pe pipe production line |
||
Product Description
- High-speed extrusion capability up to 30m/min for PE, PPH, PPR, PPB, PERT, and PB materials
- L/D=38 double mixer and barrier screw design ensures 100% plasticization
- Spiral groove feeding system increases productivity by 30%
- Spiral mandrel die design eliminates flow channel delays and improves pipe quality
- Special disc design on calibration sleeves supports high-speed extrusion

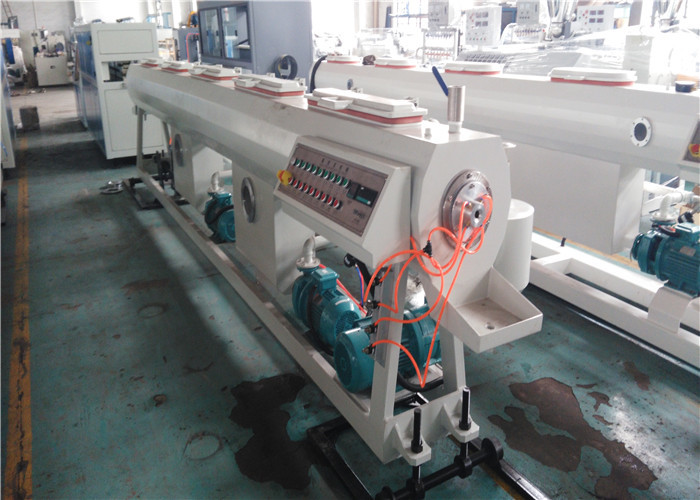

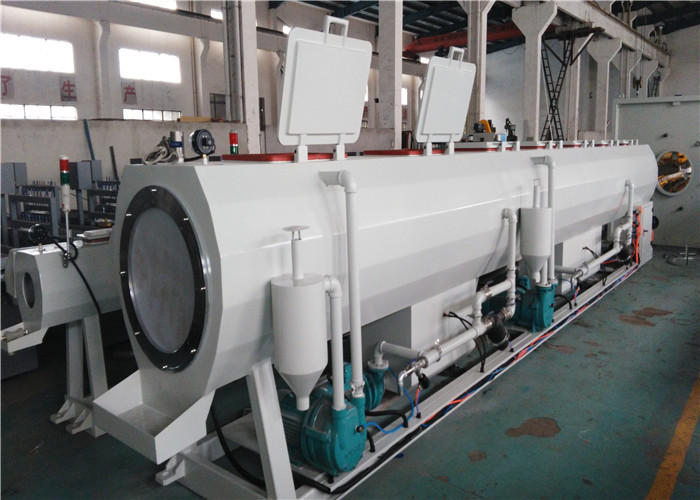

- Dual-strand vacuum tank with individual control for operational flexibility
- Double haul-off system with individual control and upper crawler track belt stop device
- Chipless cutter design with motor drive and synchronous belts for reliable high-speed cutting
| Model | Pipe Spec (mm) | Extruder | Max Output (kg/h) | Total Power (kw) |
|---|---|---|---|---|
| LB63-PE | Φ 20-Φ63 | SJ65/38 | 250-300 | 75 |
| LB110-PE | Φ 63-Φ110 | SJ65/38 | 250-350 | 90 |
| LB250-PE | Φ 75-Φ250 | SJ75/38 | 500-550 | 185 |
| LB450-PE | Φ 160-Φ450 | SJ90/38 | 700-750 | 250 |
| LB630-PE | Φ 315-Φ630 | SJ120/38 | 900-1100 | 280 |
| LB800-PE | Φ 400-Φ800 | SJ150/35 | 1000-1200 | 315 |
| LB1000-PE | Φ 630-Φ1000 | SJ150/38 | 1000-1200 | 315 |
| LB1200-PE | Φ 800-Φ1200 | SJ120/33 & SJ90/38 | 1500-1700 | 280/220 |
