380V 50HZ Hdpe Pipe Extruder Machine , 800 - 1200mm OD Pipe Making Machine
Product Details
| Voltage: | 380V/220V | Condition: | New |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | Outlet: | Single Outlet |
| Pipe Range: | 800-1200mm PE Pipe | Capacity: | MAX. 350KG |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | ||
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description
380V 50HZ Pvc Pipe Manufacturing Plant OD (800mm-1200mm ) PE Pipe Extrusion Line
OD 1200mm Plastic PE Pipe Production Line with CE ISO certificate Main features for PE pipe Production line:
1, High output and low consumption.
2, All hard teeth surface gears experienced heat
Characteristics:
1. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion
2. HDPE pipe extrusion production line(OD: 800-1200mm) with various diameter and wall thickness, from 16-800mm.

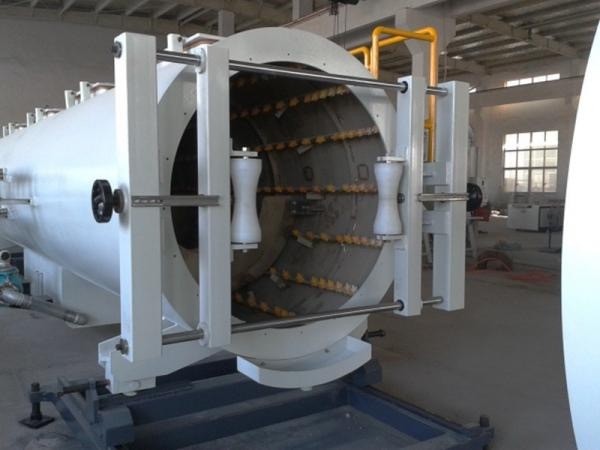

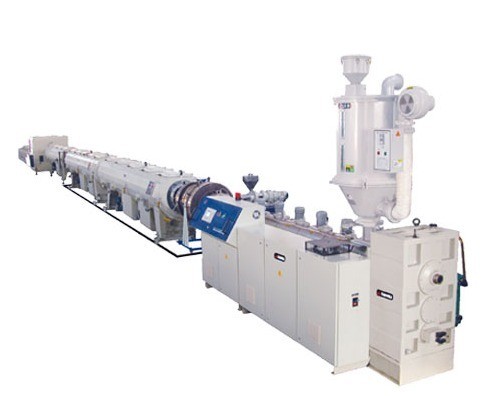

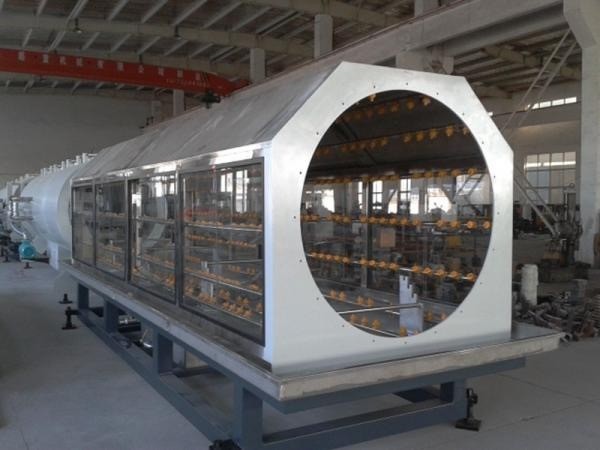

3. the plastic pipe production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing variours pipe.
4. adoped the Simens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel
5. Supply technical service, formula guide and staple raw material purchase
Specification of the HDPE pipe extrusion production line(OD: 800-1200mm)
| Parematers of HDPE pipe extrusion production line(OD: 800-1200mm) | |||||
| Pipe range | 20-63mm single | 20-63mm dual | 75-160mm | 110-315mm | 315-630mm |
| Extruder | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extruder power | 18.5kw | 37kw | 37kw | 55kw | 110kw |
| Extrusion capacity | 120kg/h | 250kg/h | 250kg/h | 360kg/h | 800kg/h |
| Max. Production speed | 12m/min | 10m/min | 6 m/min | 3 m/min |
1.2m/min |
LANGBO MACHINERY professionally manufactures plastic machinery with more than 10 years , Our main products are plastic Extruder, Pipe Extrusion Line, Profile Extrusion Line, Sheet/Plate Extrusion Line(PVC, PP, PE) Wood-Plastic Extrusion Forming Line, Waste Plastic Recycling and Pelletizing Line , Plastic Crusher, Plastic Shredder and various auxiliary machines .
LANGBO plastic pipe production line offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
