UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input
Product Details
| EXTRUDER MODEL: | Double-screw | Power(W): | 70kw |
|---|---|---|---|
| Voltage: | 220V/380V | RAW MATERIAL: | PVC |
| Product Type: | Wpc And Plastic Profile | Weight: | 5500kg |
| Application: | Profile,Sheet,Wood PVC Profile Extrusion Line | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
| Automatic Grade: | Automatic | Warranty: | 12 Months After Installation In Local Place |
| Highlight |
pvc marble sheet production line,pvc sheet making machine |
||
Product Description
UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input
Features Specifications:

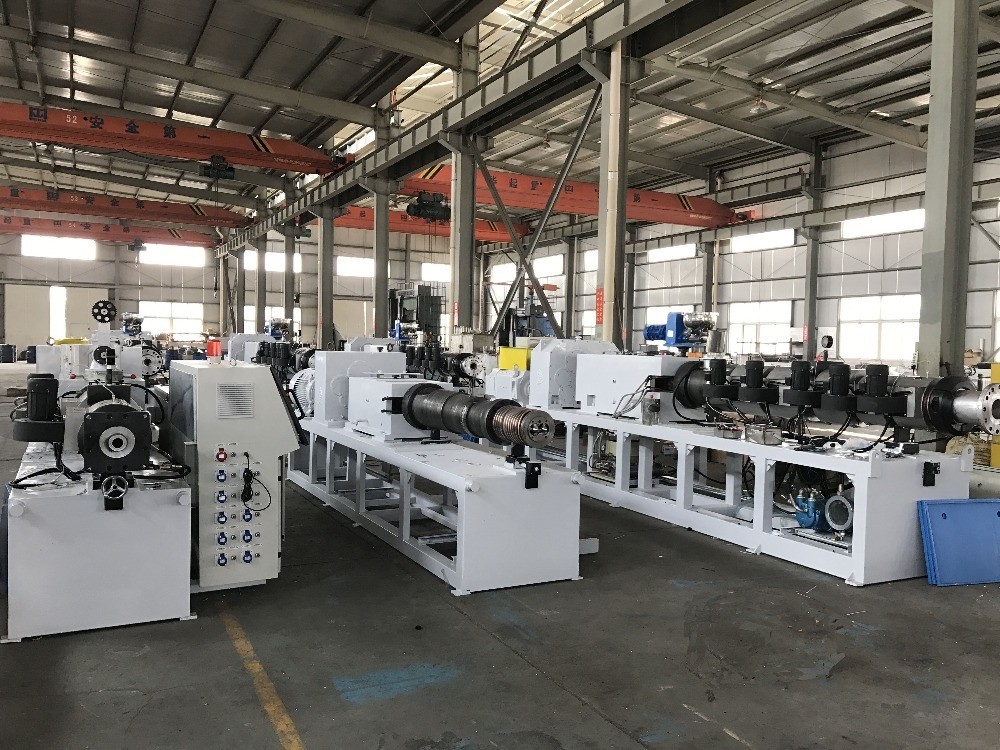

1. Model SJSZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
Drawing:
Features:

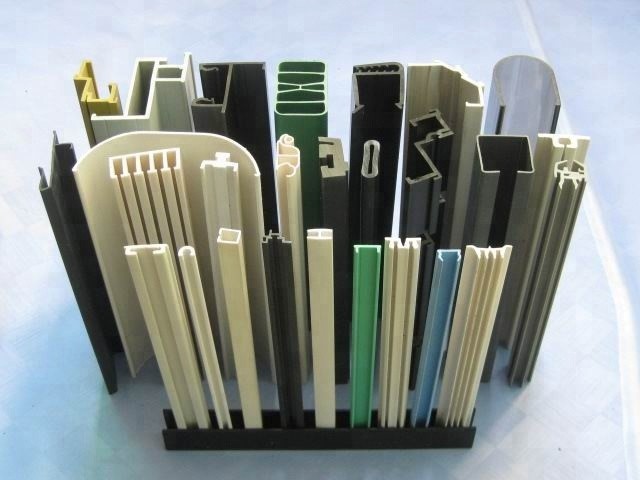

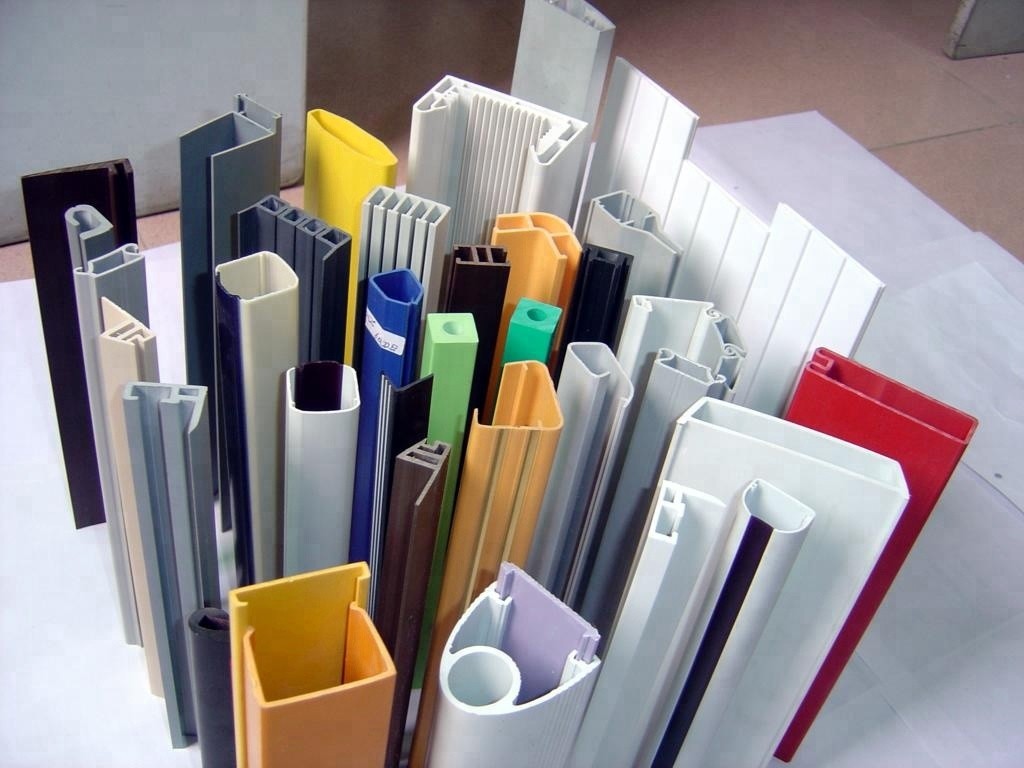

This series production line is designed for extrusion of PVC plastic fence’s profile and crosssection
cable pipes,aluminum-plastic composite profiles and etc.PVC profiles are widely used in the building industry,home and office
decoration.
Properties and Advantages: This line features stable plastIcization, high output,low sheering force,long life service and other
advantages. The calibration unit’s pump and haul off unit’s reducer are famous brand products. After simple changing of the die
and screw, it also can produce the foam profiles.
All SJSZ Series Conical Twin-Screw Extruder Technical Parameter:
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Rotating speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Capacity(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |

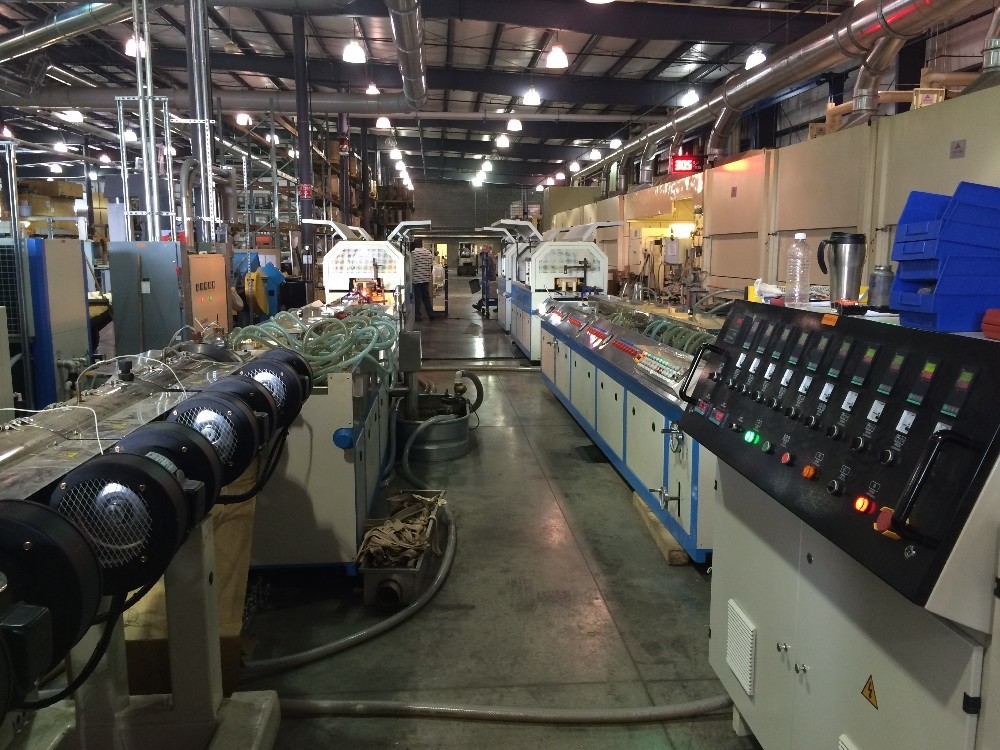

PVC profile extrusion line List:
| Name | Quantity |
| Automatic loader | 1 set |
| SJZ51, SJZ65,SJSZ80, SJSZ92 conical twin screw extruder | 1 set |
| Mould and calibrating | 1 set |
| Vacuum calibrating table | 1 set |
| Haul off machine | 1 set |
| Cutting machine | 1 set |
| stacker | 1 set |
| Heating Transferring Machine | 1 set |
