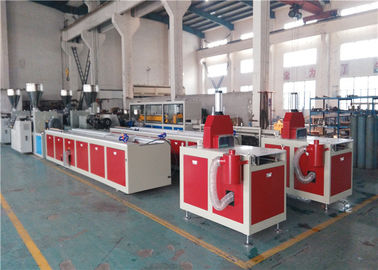

ISO PVC Wall Panel Extrusion Line Saw Cutter 200 - 250kg/H Product Capacity
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | MAX. 300MM |
|---|---|---|---|
| MOTOR POWER: | 37KW | RAW MATERIAL: | PVC & ADDITIVES |
| CUTTER: | SAW CUTTER | CAPACITY: | 200-250KG/H |
| Voltage: | 380V 50HZ 3Phase(Customized) | Application: | Profile |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service | Automatic Grade: | Automatic |
| Warranty: | 12 Months After Installation In Local Place | Inverter: | ABB |
| Color: | Depand On Customers' Demand | ||
| Highlight |
pvc marble sheet production line,pvc ceiling panel extrusion machine |
||
Product Description
Complete set PVC Wall Panel Extrusion Line Manufacturer
Specification of pvc wall panel making machine :
The pvc wall panel making machine is used to produce the pvc ceiling ,pvc wall panel.the width of the panels can be:160mm,200mm,250mm,300mm,400mm,500mm,600mm.By different capacity,you can choose the suitable machine.
We can provide the machine with turnkey solutions for you,including raw material,testing and installation,training staff,etc.
Advantages of pvc ceiling panel extrusion line:
1,speed controlled by inverter, saving power and easy to adjust speed
2,temperature controlled by Omron intelligent control, fluctuation self adjusting
3,lower power consumption: lowest total production line consumption 25kw/h
4,Economical price, suitable for large scale investment.
The Full Laminating Line includes the following machines:
1. Automatic Board Loading machine
2. PVC film coating and laminating machine
3. Automatic board over turner
4. Aluminum foil coating laminating machine
5. Cutting machine
6. Edge wrapping machine
7. Packing machine
8. Finished board stacking
Flowchart of full line (some of the parts are optional)
Automatic board feeding--predusting--coating--drying and conveying--aluminium foil unwinding--pneumatic lamination for film and gypsum board--cutting(manual, automatic)-conveying --automatic overturn--coating--drying and conveying--PVC film unwinding--pneumatic lamination for film and gypsum board--cutting(manual, automatic)--drying and conveying--lengthwise cutting(dedusting)--horizontal cutting(dedusting)--belt conveyor ouput--autolift stacking conveying--edge wrapping--stretch packing--conveying--lift(finished products stacking)
SPECIFICATIONS:
| MODEL | PROFILE SIZE (mm) | EXTRUDER MODEL | MOTOR POWER(kw) |
| LB-108 | 108 | SJZ51/105 | 18.5AC |
| LB-180 | 180 | SJZ55/110 | 22 AC |
| LB-300 | 300 | SJZ65/132 | 37 AC |
| LB-600 | 600 | SJZ80/156 | 55 AC |
| LB-800 | 800 | SJZ80/156 | 55 AC |
| LB-1240 | 1240 | SJZ92/188 |
110 D
|
