Sound Insulated PVC Board Machine , 450kg/H Output PVC Sheet Making Machine
Product Details
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Screw Design:: | Double-screw | Voltage: | 380V 92/188 PVC Skinning Foam Board Extrusion Line |
| Type: | Foaming Machine | Output: | 450kg/h |
| Highlight |
pvc foam board machine,pvc foam board making machine |
||
Product Description

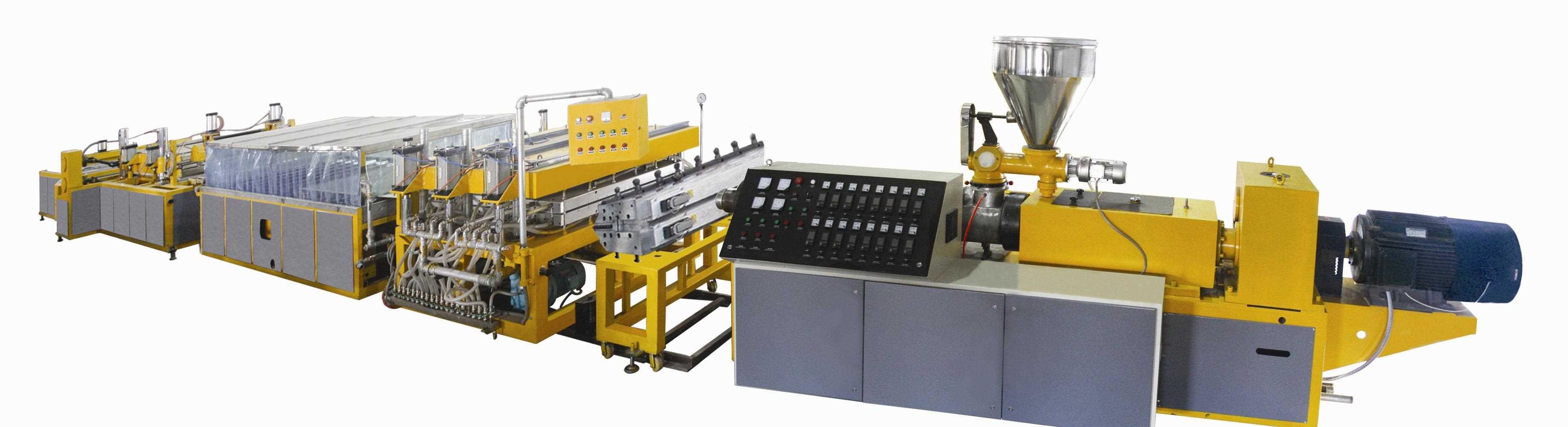

PVC foam board machine/PVC board extrusion line/pvc board machine
Produce processing :
mixing--feeding---extrusion----forming and cooling----cooling---hauling--cutting
Machinery part
SRL-Z500/1000 hot-cooling mixer,SJZ80/156 conical double screw extruder,SJZ65/132 conical double screw co-extruder,extrusion and forming mould,cooling part,hauling,cutting,stacker.

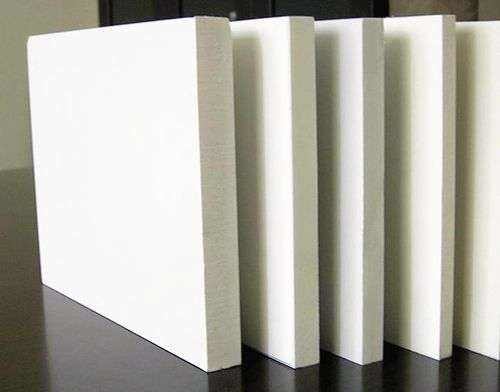

PVC Foam Board Features:
1. Waterproofing.
2. Fire retardant and self-extinguishing.
3. Heat preservation.
4. Sound-insulated.
5. Insulation.
6. Non-corrosion.
7. Non-toxic.
8. Tough, rigid with the high impact strength.
9. Stable color retention.
10. Dampproof.
11. Anti - deformed
Applications:
1. Building outdoor wall board, indoor decoration board, partition board in office and house.
2. Screen printing, flat solvent printing, engraving, billboard and exhibition display.
3. Chemical anti corrosion project, special cold project, environmental protection.
4. Sanitarywares, kitchen cabinet, washroom cabinet.
PVC/WPC board making machine technical parameters PVC foam board machine/PVC board extrusion line/pvc board machine :
| Main extruder and motr | SJZ80/156 conical double screw extruder 75kw |
| Co-extruder and motor | SJZ65/132 conical doule screw extruder 37kw |
| cooling roller | stainless steel |
| haul-off | 8 roller haul-off 5.5kw |
| cutter | 2.2kw feeding motor 1.5kw |
| output | 450kg/h |
| wood powder making machinery | 150-300kg/h |
| SRL-Z500/1000 mixer | 500-700kg/h |
| PC500 crusher | 300kg/h |
| SMF-600 miller | 2250-300kg/h |
Product Highlights
PVC foam board machine/PVC board extrusion line/pvc board machine Produce processing : mixing--feeding---extrusion----forming and cooling----cooling---hauling--cutting Machinery part SRL-Z500/1000 hot-cooling mixer,SJZ80/156 conical double screw extruder,SJZ65/132 conical double screw co-extruder...
