3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine
Product Details
| Condition: | New | Usual Sheet Width: | 915mm, 1220mm |
|---|---|---|---|
| Screw Design:: | Double-screw | Max.capacity: | 400kg/h |
| Weight: | 4-5ton | Power(W): | 110kw |
| Highlight |
pvc foam board machine,pvc foam board making machine |
||
Product Description

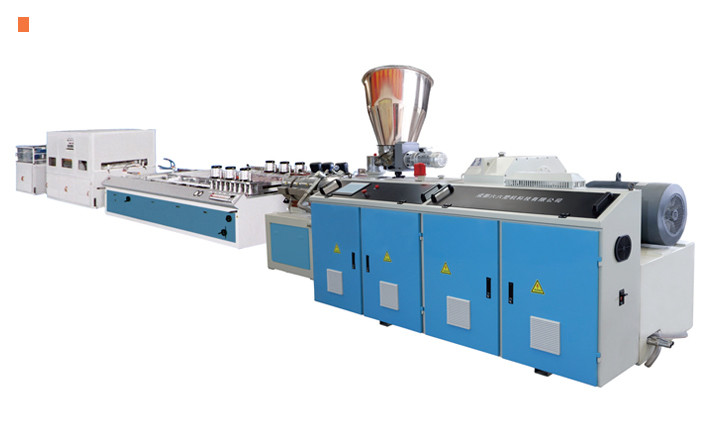

PVC Foam Board, Decorative Board Production Line
PVC Decorative Sheet Production Line
PVC decorative board machine
Product Usage
1. Vinyl flooring
2. ceiling
3. wall board
4. advertisement panel
5. carving
6. furniture
Pattern: marble, carpet, stones, natural scenery, stereo design, etc, customized pattern.
Function and features: sound insulation, soft, easy to clean, comfortable feet feeling, personalized color and design.
Thickness: 3mm-25mm
Co-extrusion layer: 0.5-1.0mm
Equipment list :
| 1 | Automatic weigh and loading system | ||
| 2 | Hot/cooling mixer | SRL500/1000 | |
| 3 | Mixing material storehouse | 4tons | |
| 4 | Spring type of loader | 700Kg/hr | |
| 5 | Twin screw extruder | SJZ80/156 | |
| 6 | Twin screw extruder | SJZ51/105 | |

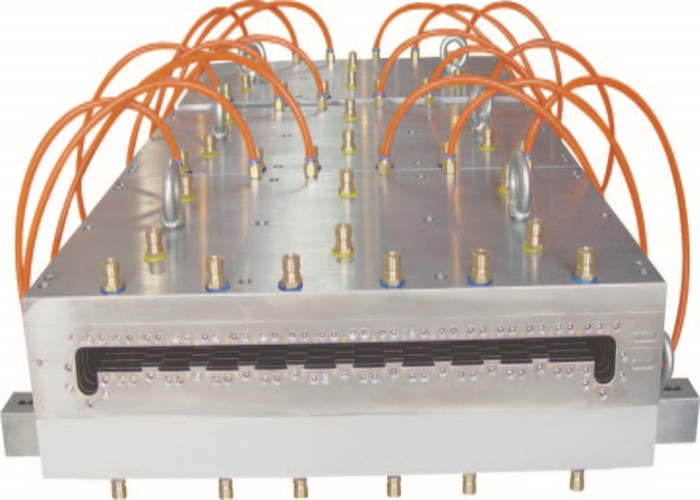

| 7 | T-die and calibrating system | 1220mm, 915mm | |
| 8 | PUR glue coating system | optional | |
| 9 | 16 roller haul off unit | ||
| 10 | Automatic cutting with dust suciton | ||
| 11 | Tipping stacker |
Usual Products Sizes:
1. Usual sheet width: 915mm, 1220mm
2. Usual sheet thickness: 3mm-25mm
3. length will be common 2440mm, exporting 2200mm for container loading
1. Well designed well made high quality extruder with special use helical gear reducer and high efficiency converter motors, make high speed extrusion, conical double screw for PVC material;
2. Special screw structure, high shear stress and low temperature, ensure high quality plasticization;
3. High precise T-type die head, indepedent oil temperature control chromed 3-roller calender, uniform speed and high traction force NBR roller haul-off machine help making uniform thickness PVC;
4. Whole line with high degree of automation, easy to operate;
5. High quality steel materials, strict producing process make high quality line;
6. New advanced energy saving technology, lowered energy consumption;
7. It can make different design with on line PUR coating and lamination system, it is our advantage.
Specification of PVC foam board
| Main Dimension | L: 2200 W: 1220mm T: 6-12mm | |
| L: 2440 W: 600mm T: 6-12mm | ||
| L:1200 W: 1200mm T: 6-12mm | ||
| L: 600 W: 600mm T: 6-12mm | ||
| Specification | 1) surface color | Wood, cloth, marble |
| 2) Top layer | PVC film | |
| 3) Material | PVC foam | |
| 4) Acc | Lightgage steel joist or glue | |
| 5) Lacquer | UV | |
| 6) Surface Effect | Smooth,embossed, shinning or matt etc. | |
| 7) Gloss | Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5% | |
| 8) Production Line | PUR hot lamination | |
| 9) Joint | 4-side T&G with micro bevel or square edge | |
|
Distinctive Feature |
♦ Damp-proof and water-proof ♦ Good heat insulation and noise insualation ♦ More stable, energy-saving and healthy ♦ Rot-proof and long life ♦ Natural and environment friendly ♦ small heavy |
|
|
Consumer Benefits |
♦ good health for family ♦ long life and easy to exchange ♦ wonderful color |
|
| Installation |
♦ Installation: glue or lightgage steel joist ♦ Precision cutting without edge broken |
|
Specifications
1. High Strength and long life
2. light and good insulation for heat and noise
3. Various designs
4. Easy for installation
Advantage
1. Good heat insulation and noise insulation, energy save
2. Fireproof, waterproof, environmental friendly
3. Easy setting and cleaning
4. Environmentally friendly and stable longevity
5. High strength and small density, very suitable for ceiling and wall decoration.
6. Easy installation, attractive design. Low cost, competitive price
