380v WPC Profile Extrusion Line Heat / Shock Resistance High Product
Product Details
| Condition: | New | Model Number: | SJSZ-65/132 |
|---|---|---|---|
| MOTOR POWER: | 220KW | RAW MATERIAL: | WPC |
| Screw Design: | Double-screw | Voltage: | 380V |
| Highlight |
wpc board production line,wpc profile machine |
||
Product Description

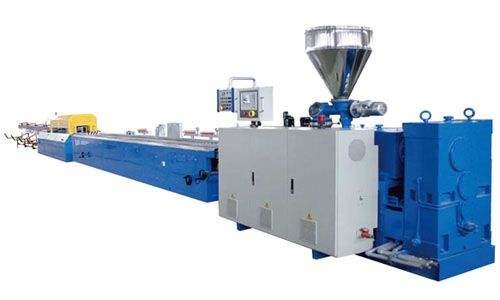

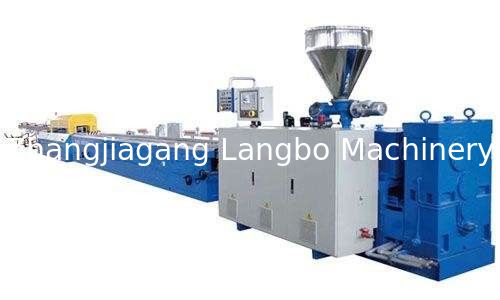

WPC outside decoration floor profile extrusion line / WPC extrusion line
Description
The extrusion line adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity, stable extruding presser; the pre-heating loader is installed on top of the extruder, it can exhaust the moist remains in the wood power to make sure the extruding section of extruder is full, and guarantee a better plasticization result.
Consist of KFYwood plastic composite extruder extrusion making production manufacturing machine line
1) Extruder
2) Die mould
3) Vacuum calibration table
4) Haul-off machine
5) Cut-off machine
6) Stacker
7) Granulating line
8) Crusher
9) Miller
10) Sanding Machine
11) Embossing machine
Advantages:
1.Using special designed screw and barrel for extruder.
2.Extruder stand-alone or two mixed directly extrusion,second extrusion after granules, save power and space.
3.With high yield,stable extrusion pressure.
4.Screw design shear force is small,easy to cut teh wood fiber material.
5.Screw and barrel using inlay and spray corrosion alloy, greatly extend the service life.
The optimal designed screw is extruder
| Item | SJSZ-55/110 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
| Screw Diameters(mm) | 55mm/110mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| L/D Ratio | 22:1 | 22:1/25:1 | 22:1/25:1 | 22:1/25:1 |
| Output(Kg/h) | 80-120mm | 160-200 | 250-350 | 400-500 |
| Main Driving Power(kw) | 22 | 37 | 55 | 110 |
| Heating Powder(Kw) | 4 zones,20Kw | 4 zones, 24Kw | 5 zones, 38Kw | 6 zones, 54Kw |
