WPC Profile Plastic Extrusion Line , Automatic UPVC Windows Production Line
Product Details
| Color: | Optional | Feature: | Long Life Use |
|---|---|---|---|
| RAW MATERIAL: | PVC And Wood Powder | Screw Design: | Double-screw |
| Automatic Grade: | Automatic | ||
| Highlight |
wpc board production line,plastic profile extrusion machine |
||
Product Description

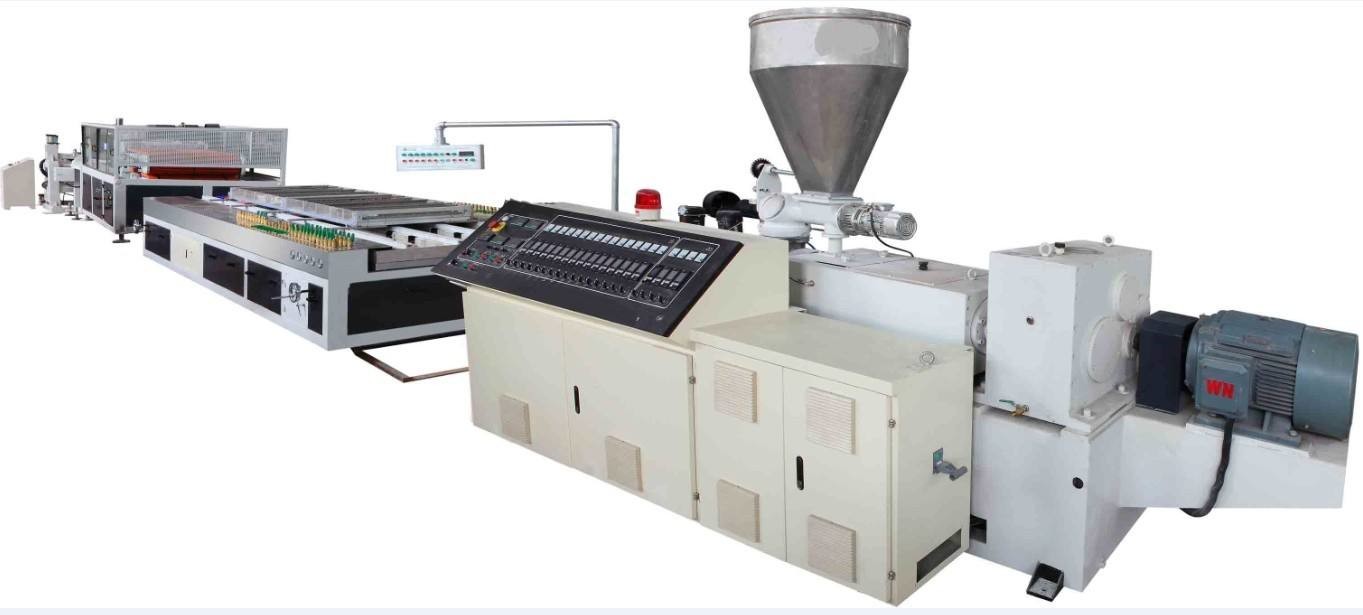

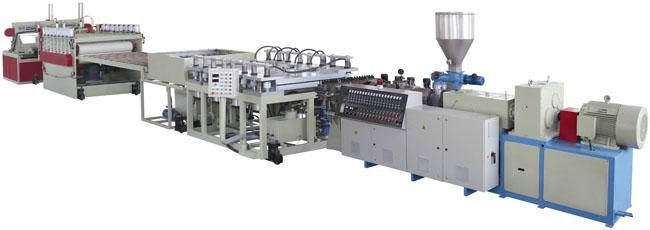

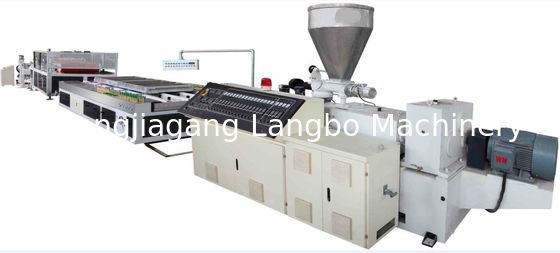

Professional PVC WPC Profile Extrusion Line/PVC Door Frame/Window Profile Machine
Specifications of WPC/PVC profile extrusion line:
1. High capacity
2. Easy control
3. Good quality of machine
4. long life used

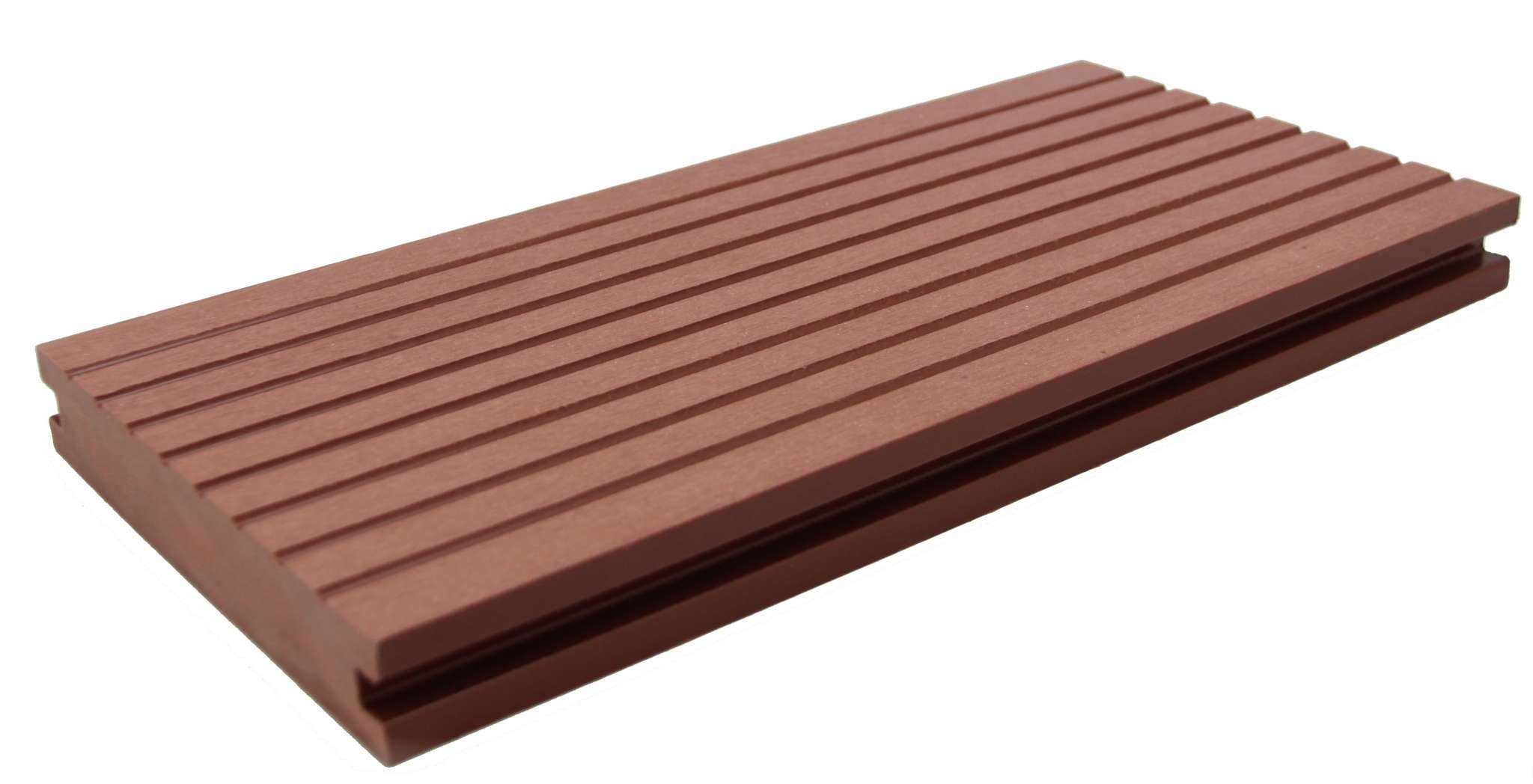

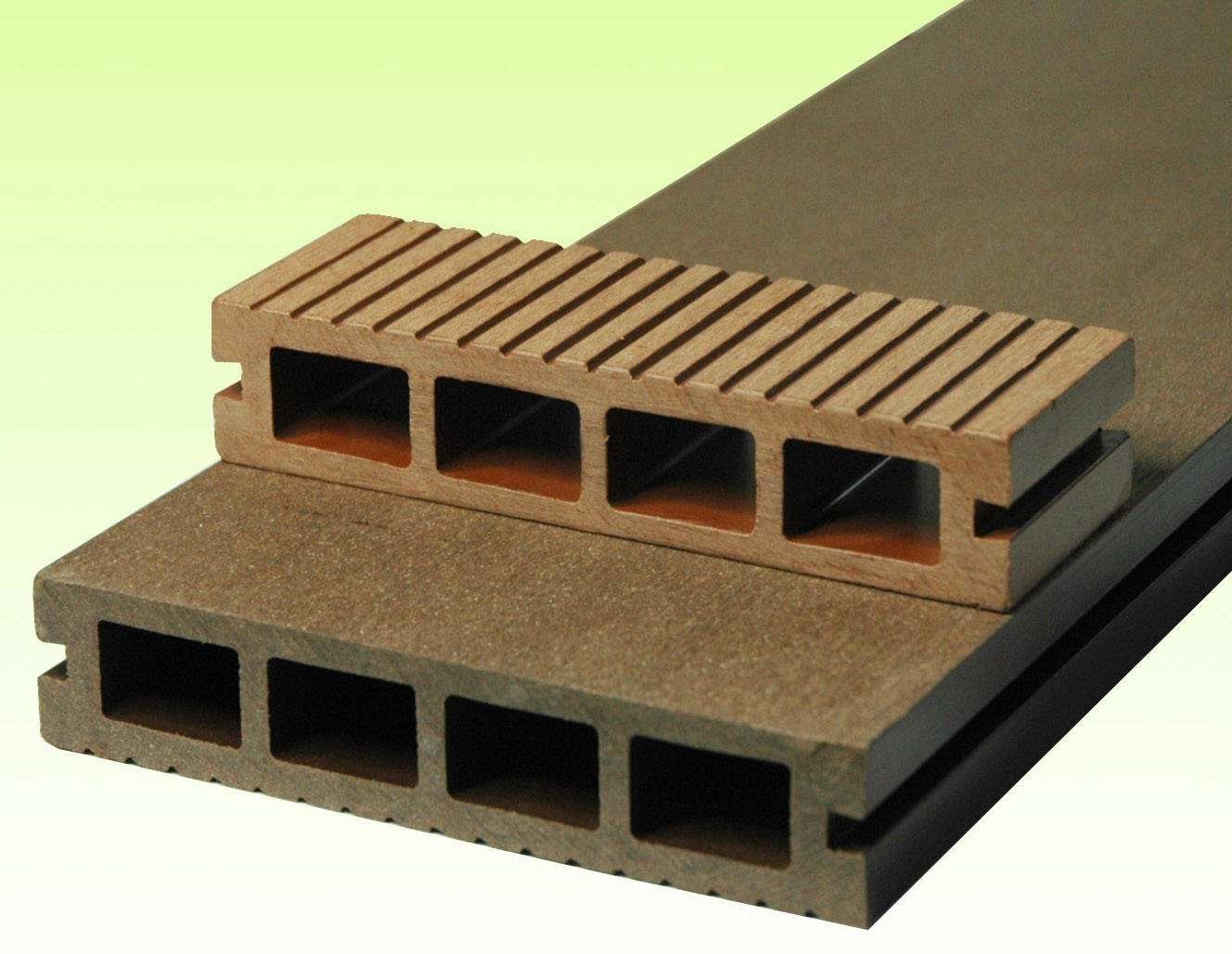

WPC/PVC profile extrusion line is mainly used for producing PVC+wood
flour,shirting board,door border line,door pocket line ,louvre blade,picture frame,
edge sheet of furniture,doorcase,door pocket,upright post,stair railing,etc. WPC/PVC profile extrusion line adopting the special wood-plastic technology and formula from our company,can design different product
according to different board section and purpose.With different mould and double
screw extruder and Single Screw Extruders special for wood-plastic ,can produce different wood-plastic board by vacuum forming machine,tractor,cutting machine,and upengder,etc.
Special technology has been adopted for tractor,so WPC/PVC profile extrusion line has many advantages,such as
run steadily,high reliability,stronger traction,.vacuum forming device adopts special
oversize vortex cooling system in order to satisfy the actual demand of producing
wide board with convenience for forming,cutting device keeps pace with the board
pulling speed with rational design,stable operation,automatic scale cutting,and
equipped with dust reclaimer.
Specification:
1. The material is PVC+powder
2. With the special woo-plastic technology and formula of our company.
3. Different mould can produce different proudcts
4.Stable working and reliable.
Main technology parameter of extruder
| Model | SJSZ45/100 | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
|
Power of drive motor (kw) |
15 | 18.5 | 22 | 37 | 55 | 110 |
|
Screw diameter (mm) |
Ø45/Ø100 | Ø51/Ø105 | Ø55/120 | Ø65/Ø132 | Ø80/Ø156 | Ø92/188 |
| No.of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotational speed | 36 | 36 | 36 | 36 | 36 | 36 |
| Nm torsional moment of screw | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
|
Capacity PVC powder (kg/h) |
70 | 100 | 150 | 250 | 400 | 750 |
| Central height(mm) | 1000 | 1000 | 1000 | 100 | 1000 |
1100 |
