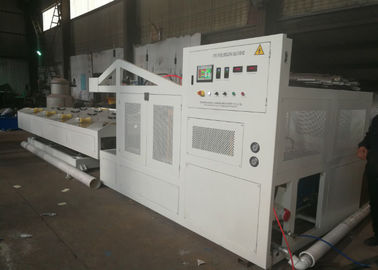

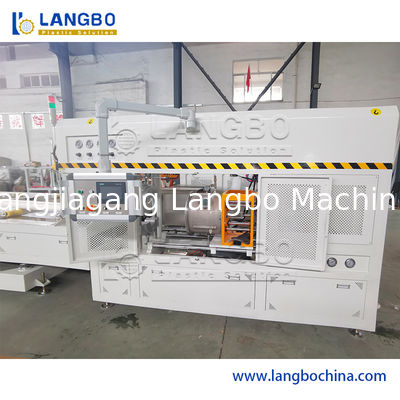

Automatic Pipe Belling Machine For R Type / U Type Plastic Pipe Belling
Product Details
| PIPE DIAMETER: | 16-63 | APPLICATION: | SEWAGE PVC PIPE |
|---|---|---|---|
| Voltage: | 380V 440V 400V 220V | Type: | Pipe Belling Machine |
| PIPE COLOUR: | WHITE, ORANGE, BLANK | PLC: | FULL AUTOMATIC |
| Highlight |
automatic socketing machine,pvc pipe socketing machine |
||

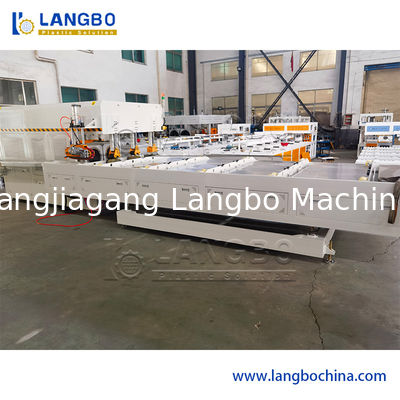

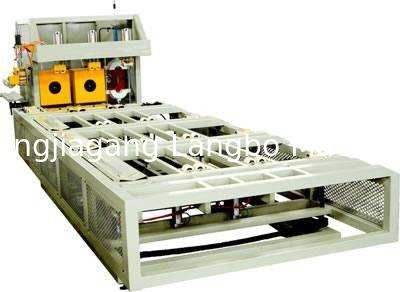

Product Description

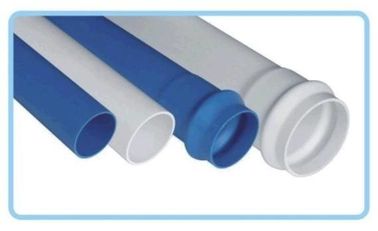

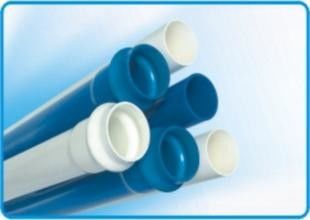

- Suitable for R type and U type belling of plastic pipes
- Can be integrated with pipe production lines or used as standalone equipment
- Fully automatic operation with stable and reliable performance
- Easy to operate with user-friendly controls

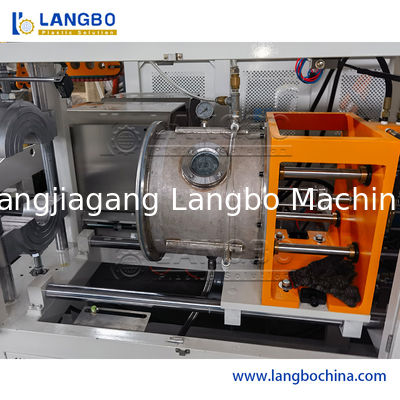

- Vacuum calibration inside the mold for precision belling
- High production capacity capable of producing 150cm pipes
- Special manual belling machines available upon customer request
- Capable of belling PE, PP, and PVC pipes to international standards
- Adjustable pipe heating degree and blowing pressure
LB-32: Diameter range 16-32mm, produces 4 sockets per cycle
LB-63: Diameter range 16-63mm, produces 2 sockets per cycle
| Model | Pipe Diameter | Heating Method | Belling Method | Heating Power | Dimension |
|---|---|---|---|---|---|
| SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
| SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
| SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
| SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
| SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
| SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
| Outer pipe diameter 160-400mm |
Electrical system Program controller (PCL) FXIN-40MR-001 + FXON-40ER |
| Fixed length as running 4-6m |
Compressed air pressure 0.4-0.6Mpa |
| Hydraulic system Oil pump engine type Y100L1-4, Power 3KW Rotating speed 1430r/min |
Water supply pressure 0.2-0.3Mpa |
| Variable column piston pump Type V22-A1-R-A Rated pressure 6.3Mpa |
Total power 28KVA |
| Exhausting capacity 0-22L/min |
Running voltage AC380V 50HZ |
| Running pressure 4-6.3Mpa |
Unit outer size 7500×3150×2100MM |
| Hydraulic pressure oil 46# anti-abrasive hydraulic oil |
Unit total weight 4500KG |

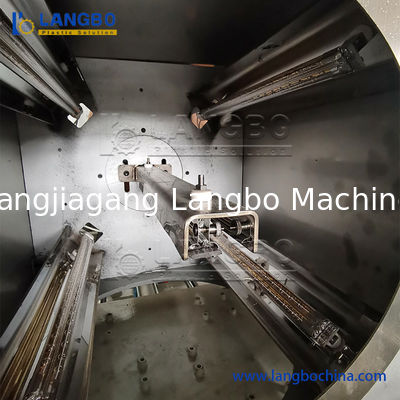

| Heating system Heating pipe power of 1 heating furnace: 1KW ×12 + 0.7KW× 2 =13.4KW |
Central height 1000 ±10MM |
| Heating system (2nd furnace) Heating pipe power of 2 heating furnace: 1KW ×12 + 0.7KW× 2 =13.4KW |
Production speed 2-40 pcs/hour |
| Max air temperature 380°C |
Machine system Electric system, hydraulic pressure system, mechanical system |

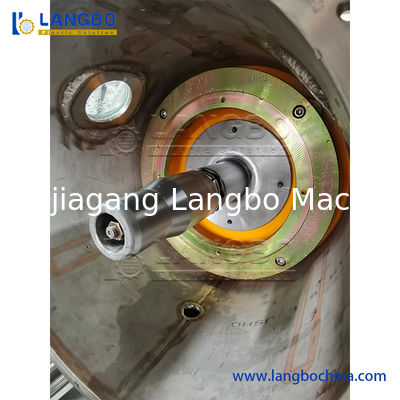

| Adopting SKT series pipe expanding moulds | |
