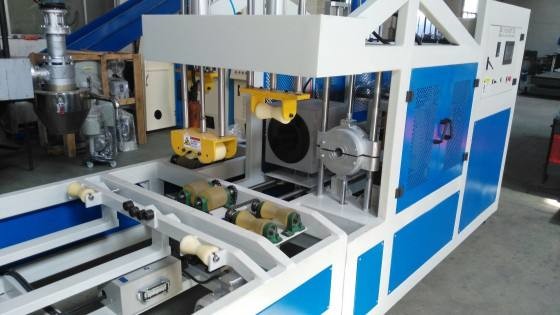

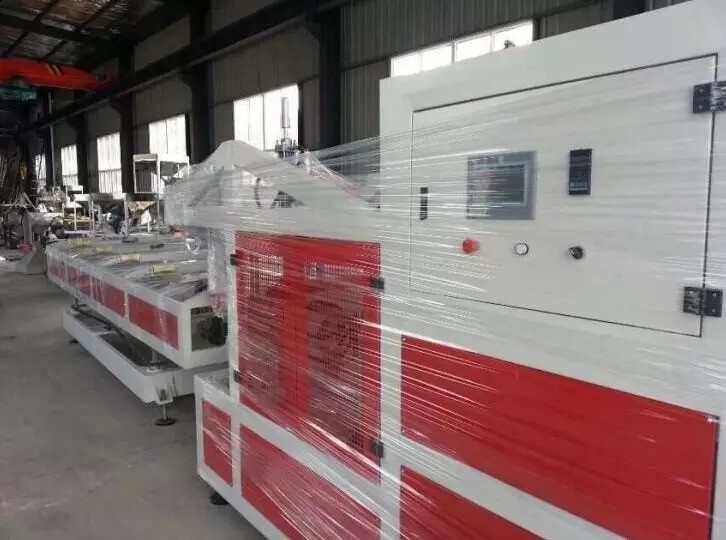

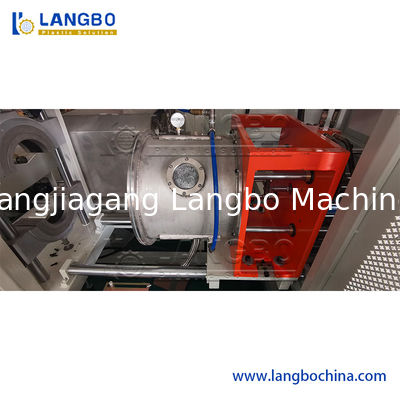

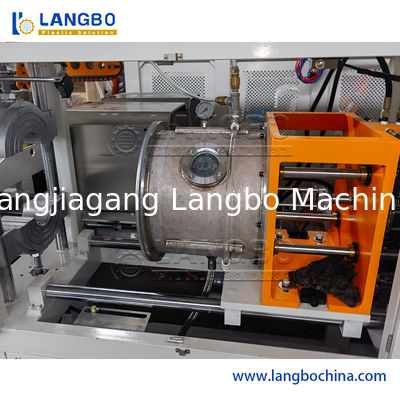

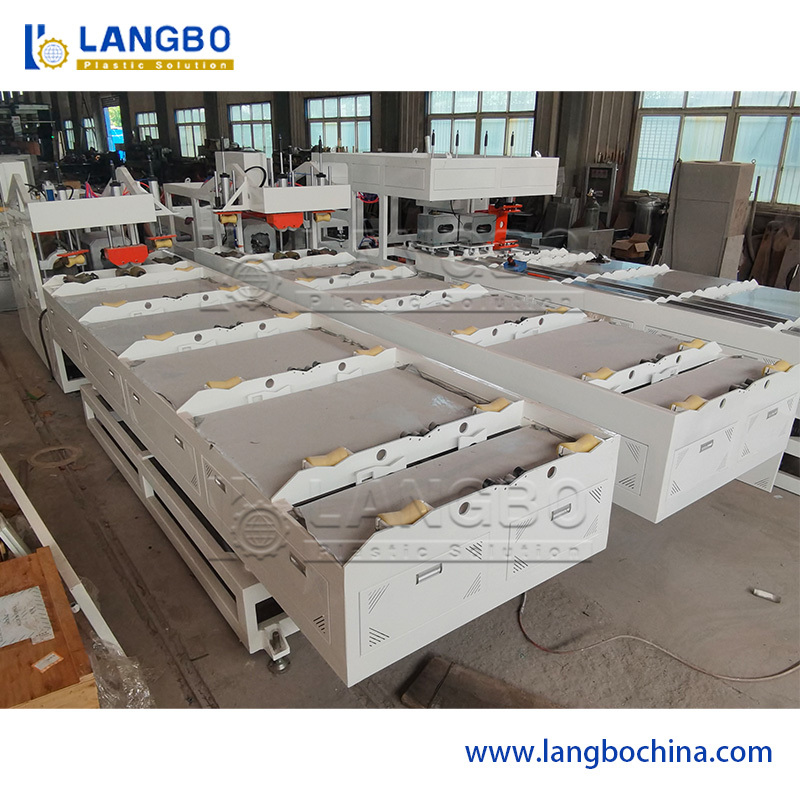

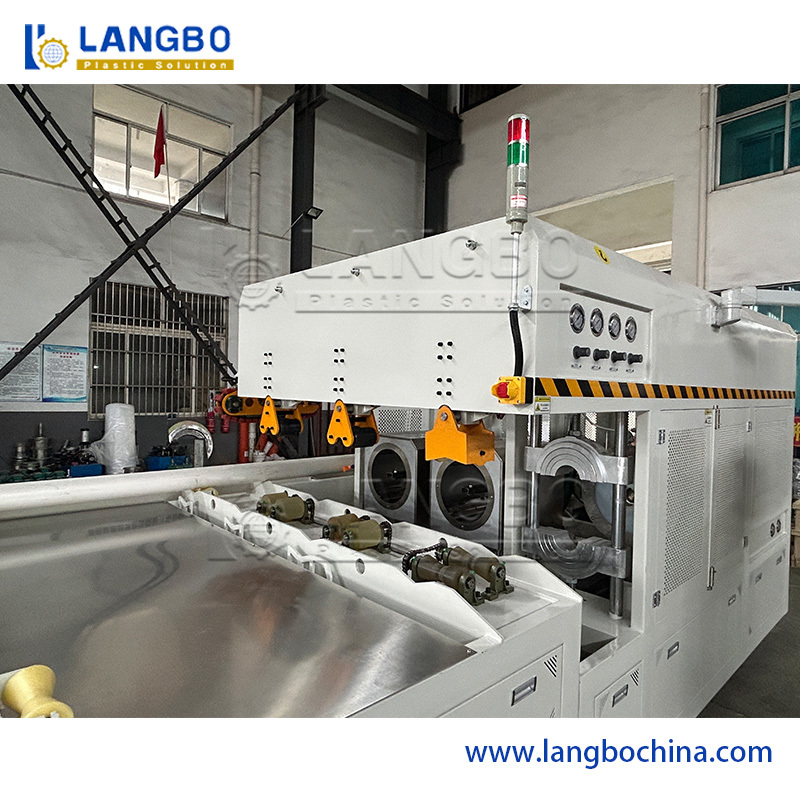

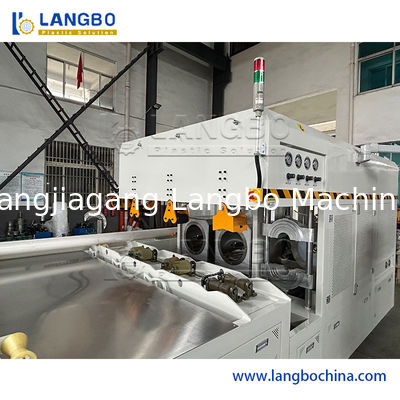

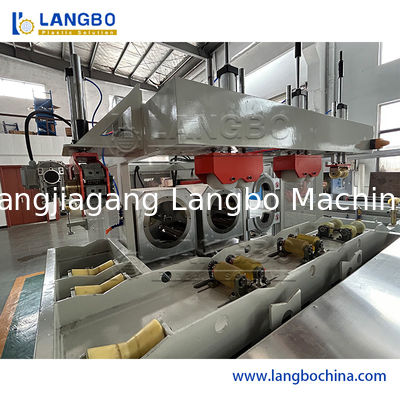

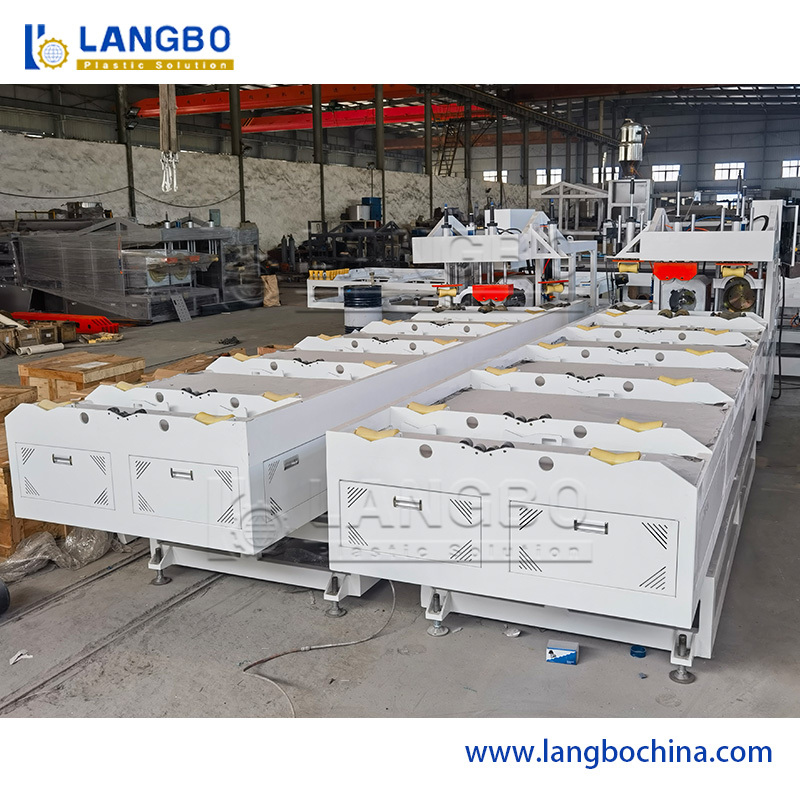

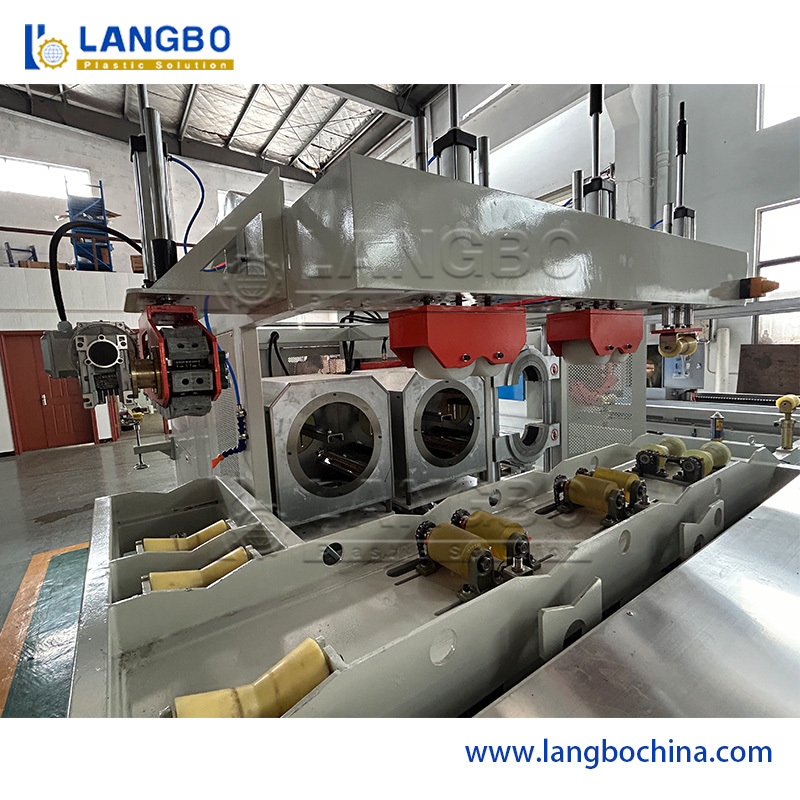

Drain Pipe Belling Machine Easy Operated Reliable System Performance
Product Details
| Application: | Drain Pipe | Warranty: | 12 Months |
|---|---|---|---|
| Voltage: | 380V 440V 400V 220V | Type: | Pipe Belling Machine |
| PIPE COLOUR: | WHITE, ORANGE, BLANK | PLC: | FULL AUTOMATIC |
| Highlight |
automatic socketing machine,pipe expander machine |
||
Product Description

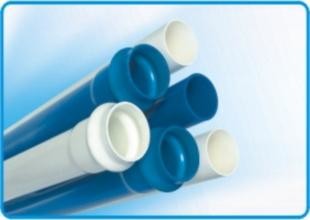

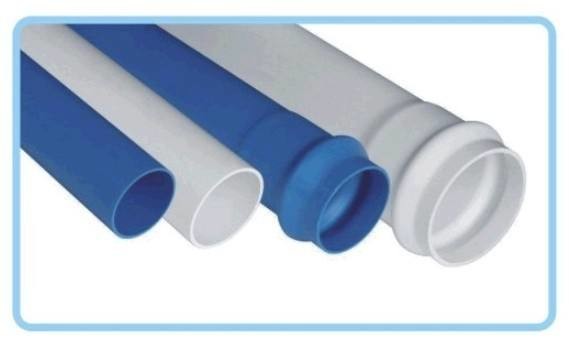

- Suitable for R type and U type belling of plastic pipes
- Can be integrated with pipe production lines or used as a standalone machine
- Full automatic operation with stable and reliable performance
- Easy to operate with user-friendly controls

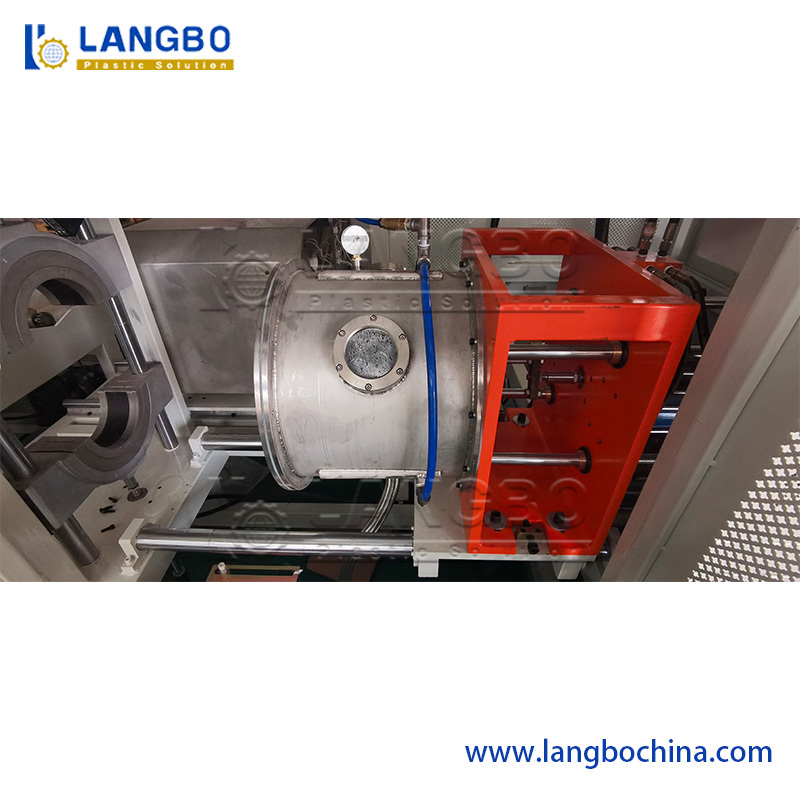

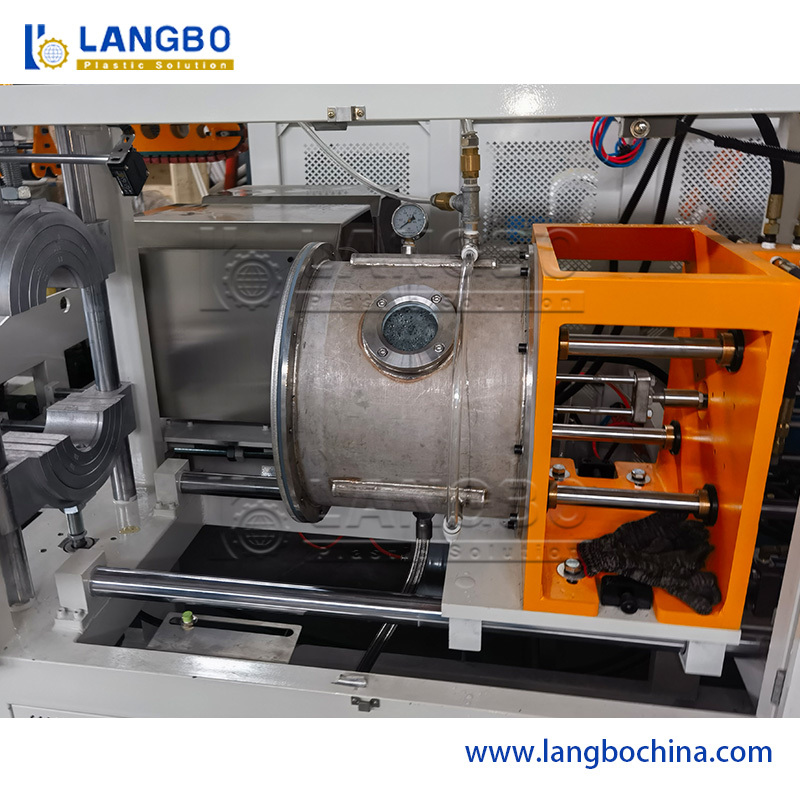

- Vacuum calibration inside the mould for precise forming
- Compatible with material traction devices and main machine interfaces
- Smooth pipe translation without damage to pipes
- Cycle hot fan heating system for efficient operation
- Head type fixed forming method for accurate pipe head positioning
- Convenient expansion method selection with process adaptability
- Main electrical control devices use imported components for reliability
| Model | Pipe Diameter | Heating Method | Belling Method | Heating Power | Dimension |
|---|---|---|---|---|---|
| SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
| SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
| SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
| SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
| SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
| SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
