Drain PVC Pipe Socketing Machine 16mm - 630mm Diameter Pipe 380V Input
Product Details
| Application: | Drain Pipe | Warranty: | 12 Months |
|---|---|---|---|
| Voltage: | 380V | Type: | Pvc Pipe Automatic Plastic Belling Machine |
| PIPE COLOUR: | WHITE, ORANGE, BLANK | PLC: | FULL AUTOMATIC |
| Highlight |
pipe expander machine,pvc pipe socketing machine |
||
Product Description

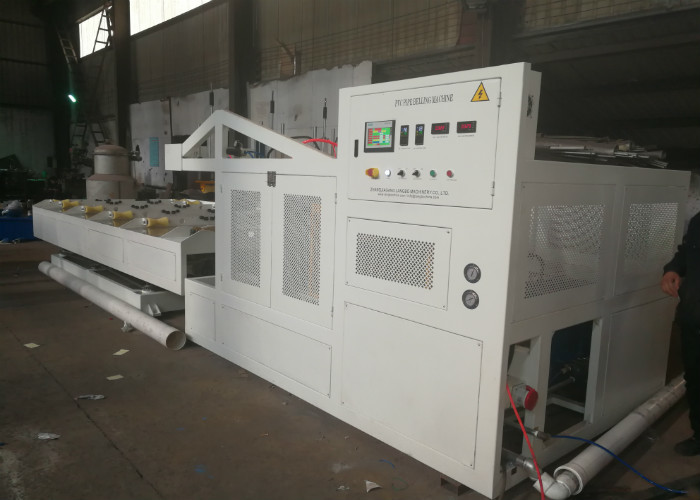

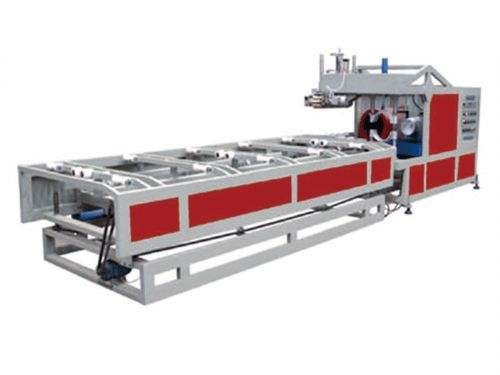

16mm-630mm Automatic plastic pipe socketing machine/PVC pipe Belling machine
Application:
LANGBO MACHINERY is a company that makes belling machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.
With young. dynamic powerful engineers, we produce standard, customer design and fully automated plastic machine. Our R & D department is improving the machine quality, making low cast and increasing the durability of the machine.
Feature:
1. Used for plastic pipe belling, such as PVC, PE, PP-R pipe and UHMW PE tubes .
2. Important auxiliary machine for pipe extrusion line, it can not only be operated separately, but also be a part of extrusion line.

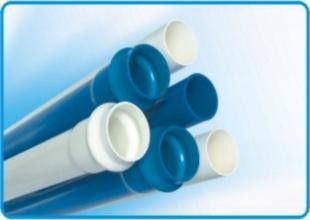

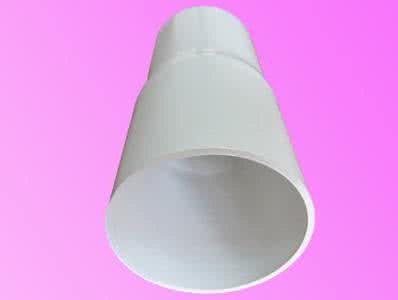

3. Enlarging solvent type socket (straight type) and enlarging stretch seal type socket (R type and rectangle type
4.It is very convenient to choose the way of tube expansion, with strong craft adaptability. It has many excellences like reasonably structured, attractive appearance, advanced technology, easy to operate and all the progress is automatic.
Main Technical Parameter:
| Model | SGK160 | SGK250 | SGK400 | SGK630 | SGK1000 |
| Pipe OD(mm) | 40-160 | 50-250 | 160-400 | 315-630 | 500-1000 |
| Pipe Length(m) | 3-8 | 3-8 | 4-8 | 4-8 | 6-8 |
| Hydraulic working pressure(mpa) | 5 | 6.3 | 6.3 | 8 | 8 |
| Compressed air pressure(mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Total power(kw) | 18 | 18 | 25 | 32 | 50 |
| Total weight (kg) | 2300 | 2500 | 3000 | 3500 | 8000 |
| Overall size(L*W*H)mm | 7000*1530*1963 | 7300*1730*1950 | 7900*2140*2125 | 8423*2970*2650 | 10000*4600*2570 |
| Production speed(s) | 45-500 | 50-600 | 60-900 | 150-1200 | 500-2500 |
| Forming mode: With pressurized cylinder (or vacuum pump)and expandable belling moulds |
| Cooling mode: Water-cooled |
| R-type belling moulds: 3Cr13 for collapsible core,40Cr for die block,and other mater are 45#steel,electro- plating for surface treatment |
