Product Details:
|
| Application: | Energy Supply Pipe | Dimension(L*W*H): | 1700*1300*6800MM |
|---|---|---|---|
| Voltage: | 380V | Type: | Pvc Pipe Automatic Plastic Belling Machine |
| PIPE COLOUR: | WHITE, ORANGE, BLANK | PLC: | FULL AUTOMATIC |
| Highlight: | pipe expander machine,pvc pipe socketing machine |
||

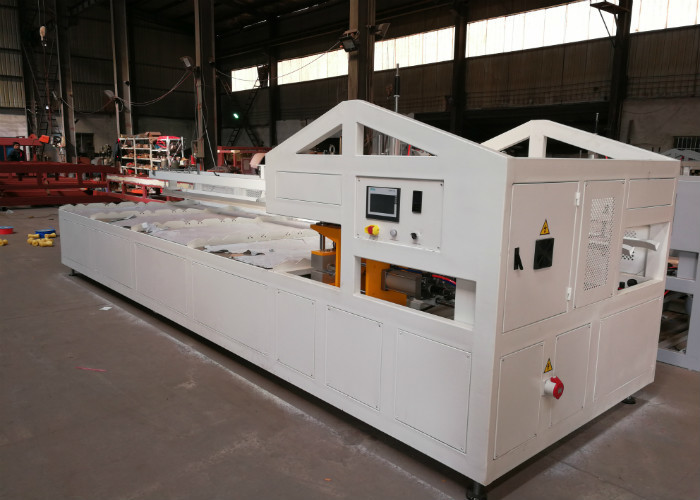

High performance automatic PVC pipe belling making machine
MAIN PARAMETER OF SOCKET BELLING MACHINE FOR PLASTIC PIPE
Model: SGK series of automatic plastic pipe belling machine
Function and characteristic
1, this series can be processed Φ16-1000mm any pipe flaring
2, with automatic delivery tube, flip tube, flaring function
3, with heating, cooling, timing, automatic, manual function
4, the modular design of the components
5, small size, low noise
6, the use of vacuum adsorption, flaring a clear profile, size assurance
7, power (compared with similar products, power-saving 50%)
8, can be customized according to user requirements special specifications
The feature and application of PVC belling machine :

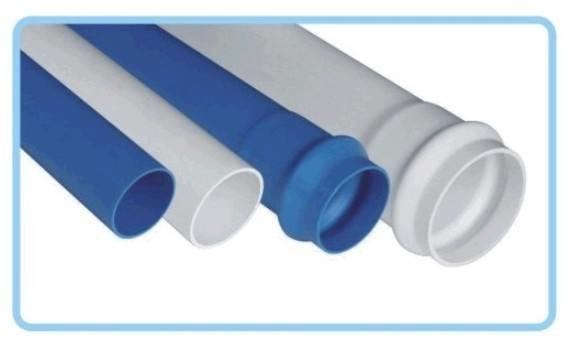

It is suitable for the R type and U type plastic pipes.
It can not only used in line with the pipe production line but also can be used alone.
The characteristics of this machine is full automatic, stable and reliable, easy to operate.
It adopts vacuum calibration inside the mould and force air/water cooling outside.
Shaping way adopts rising in the mould and rises and increasing the barometric pressure out of the mould to make it stereotypic.
Many years experience and exported to many countries of all the world

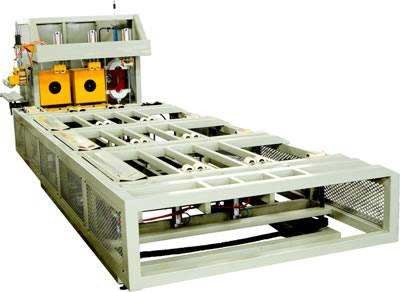

SGK Belling Machine :
| Model | Belling Scope | Total Power | G.W. | Overall dimensions (mm) | Belling-type |
| SGK75S | Φ16mm- Φ75mm | 7kw | 1500kg | 7460×1950×1900 | Smooth-type |
| SGK110 | Φ20mm- Φ110mm | 7kw | 1300kg | 7460×1550×1900 | Smooth-type |
| SGK160 | Φ40mm- Φ160mm | 18kw | 2300kg | 7000×1530×1963 | R-type Smooth-type |
| SGK250 | Φ50mm- Φ250mm | 18kw | 2500kg | 7300×1730×1950 | R-type Smooth-type |
| SGK315 | Φ110mm- Φ315mm | 25kw | 2800kg | 7500×1930×2100 | R-type Smooth-type |
| SGK400 | Φ160mm- Φ400mm | 25kw | 3000kg | 7900×2140×2125 | R-type Smooth-type |
| SGK630 | Φ315mm- Φ630mm | 32kw | 3500kg | 8423×2970×2650 | R-type Smooth-type |
| SGK1000 | Φ500mm- Φ1000mm | 50kw | 8000kg | 10000×4600×2570 | R-type Smooth-type |
| SGK250B | Φ50mm- Φ250mm | 15kw | 1600kg | 3100×1250×2100 | R-type Smooth-type |
| SGK160J | Φ40mm- Φ160mm | 15kw | 2000kg | 6900×1420×2000 | Blow type |
| SGK250J | Φ50mm- Φ250mm | 18kw | 2300kg | 7300×1660×1920 | Blow type |
| SGK315J | Φ110mm- Φ315mm | 20kw | 3500kg | 8200×1750×1850 | Blow type |
| SGK250P | Φ110mm- Φ250mm | 18kw | 2000kg | 7200×1730×1950 | Corrugated type |
| SGK400P | Φ200mm- Φ400mm | 25kw | 3000kg | 7560×1960×2250 | Corrugated type |
| SGK600P | Φ200mm- Φ600mm | 32kw | 4500kg | 8080×2250×2950 | Corrugated type |
| PGK600 | Φ300mm- Φ600mm | 60kw | 5000kg | 8080×2250×2950 | Pipe joint type |
