Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-63D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Reliable Pipe Belling Machine Infrared Ray Heating 12 Months Guarantee

Description

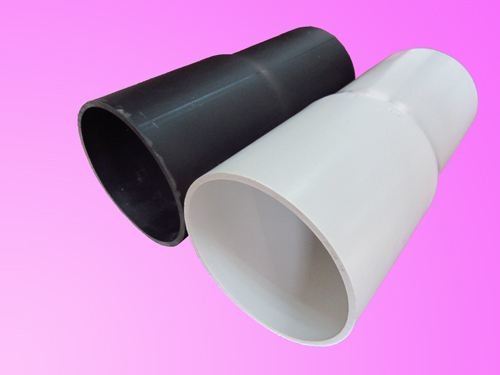

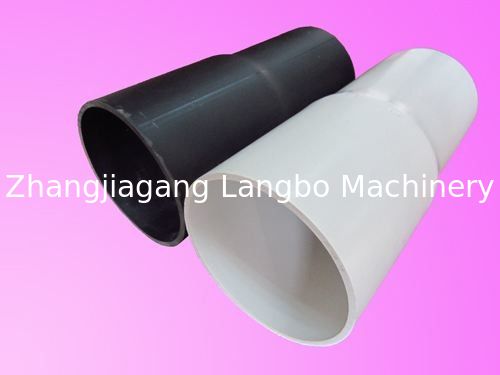

Application: Drain Pipe Usage: Plastic Pipe Belling
Belling Range: 16~630mm Type: Pvc Pipe Automatic Plastic Belling Machine
PIPE COLOUR: WHITE, ORANGE, BLANK Guarantee: 12 Months
High Light:

automatic socketing machine

,

pvc pipe socketing machine

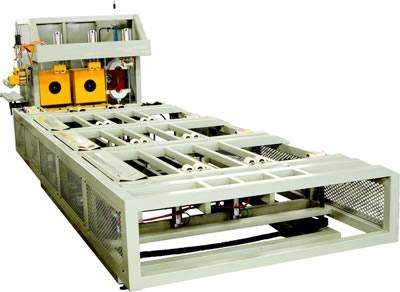

Plastic Pipe belling Machine / Plastic Tube Automatic Expander



Production Description

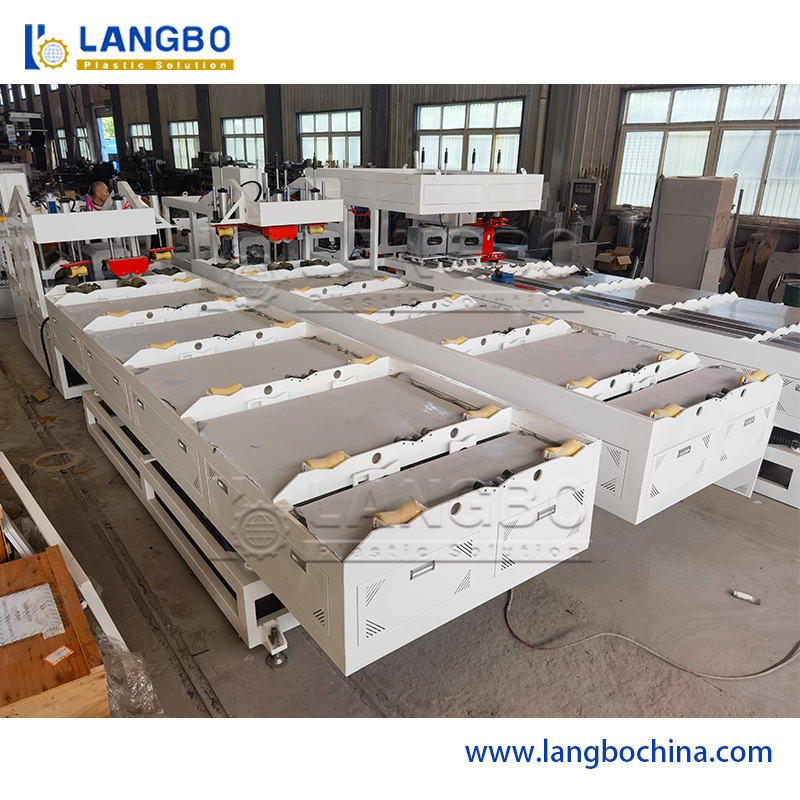

SGK seires plastic pipe belling machine with drawing device and program interface concerned is used with extruding machine.It is also could separating operation. While expanding pipes,the machine adopts translation. The action is steady and correct.It does not damage pipe materials. The machine adopts double-infrared heating oven type. Each oven is equipped with heating core. The shaping method adopts expanding-end shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch of expanding solvent type pipe socket sovent,rubber-ring expansion and rubber-ring lip type sockets. The choice of expanding pipe types is very convenient. The technological adaptability is strong. Its main electric control elements are all exportec. The system characteristics are steady and reliable.



Features

1) Collocated with material-receiving pulling device as well as related process interfaces that are matched with the main machine.
2) Can not only work together with the main machine, but can also work alone at the same time.
3) Horizontally moves pipes, stable and accurate actions, and does not easily to damage pipes.

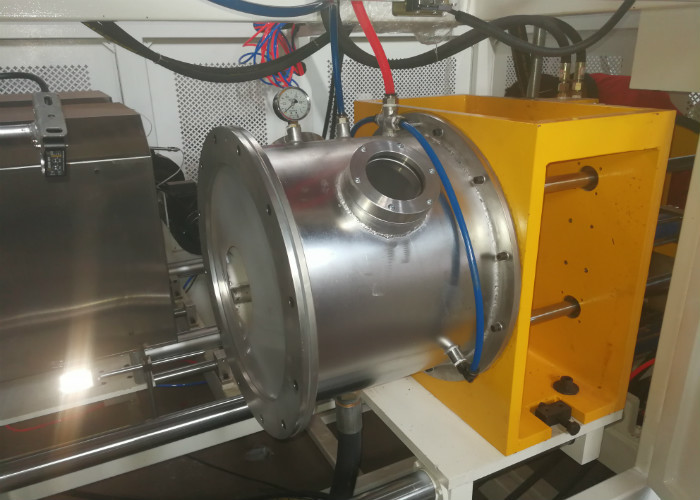

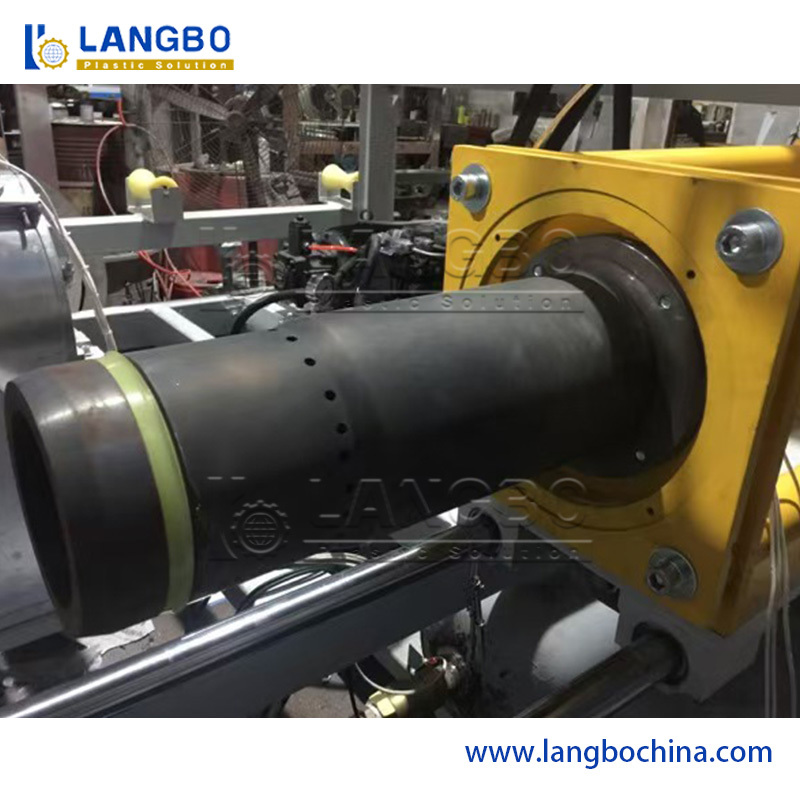

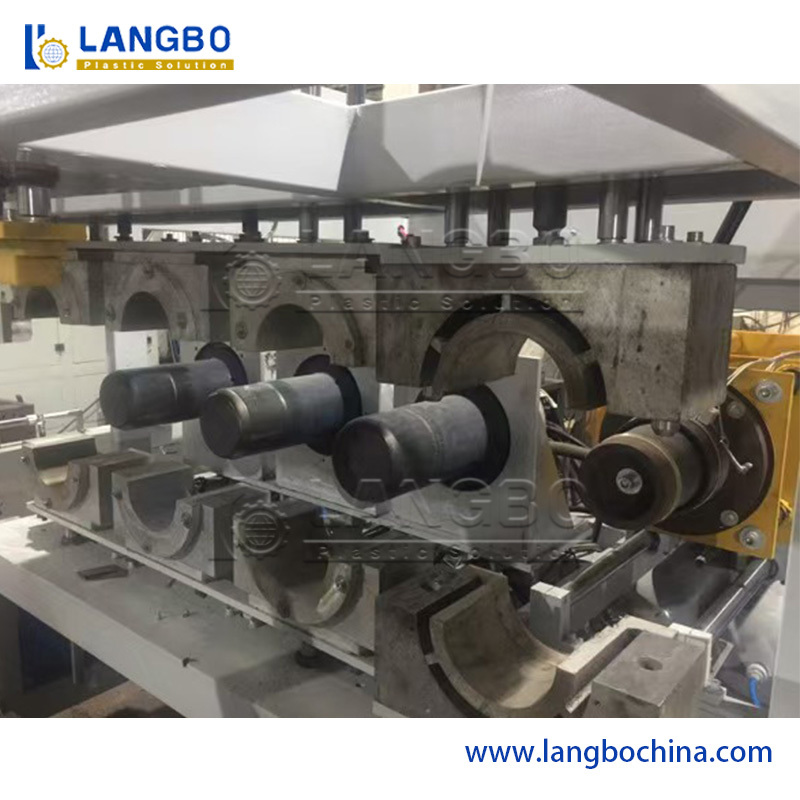

4) Adopts infrared ray heating way and double-heating furnace, and each heating furnace is located within the central heating furnace core.5) Adopts expansion tube head shaping method, and has conversion switches of expansion solvent plug and expansion.
6) Main electric control components adopt imported ones, with stable and reliable system performance.



Techinical Parameter

model Diameter(mm) Capacity(pieces/h)

Total power

KW

weight

(T)

outer dimension

mm

SGK-63 16-63 120-550 9.5 2.6 4800*2250*1650
SGK-160 50-160 30-80 9.5 3.5 7500*1550*1700
SGK-250 50-250 20-60 12.5 3.6 7500*1750*1700
SGK-315 160-315 14-30 14.5 4.5 7500*1850*2100
SGK-400 200-400 5-25 15.4 5.5 8500*2200*2100
SGK-630 315-630 3-15 36 10 9500*2900*2200
SGK-710 400-710 2-12 45 14 9500*300*2200



Reliable Pipe Belling Machine Infrared Ray Heating 12 Months Guarantee 0Reliable Pipe Belling Machine Infrared Ray Heating 12 Months Guarantee 1
