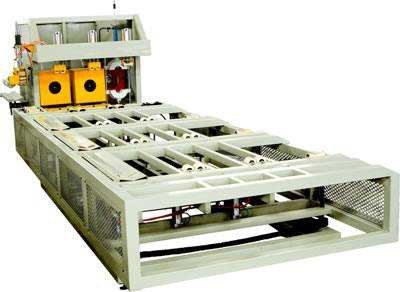

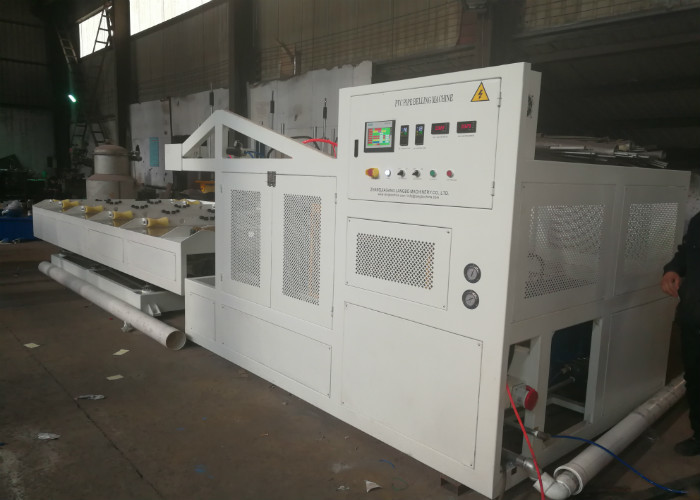

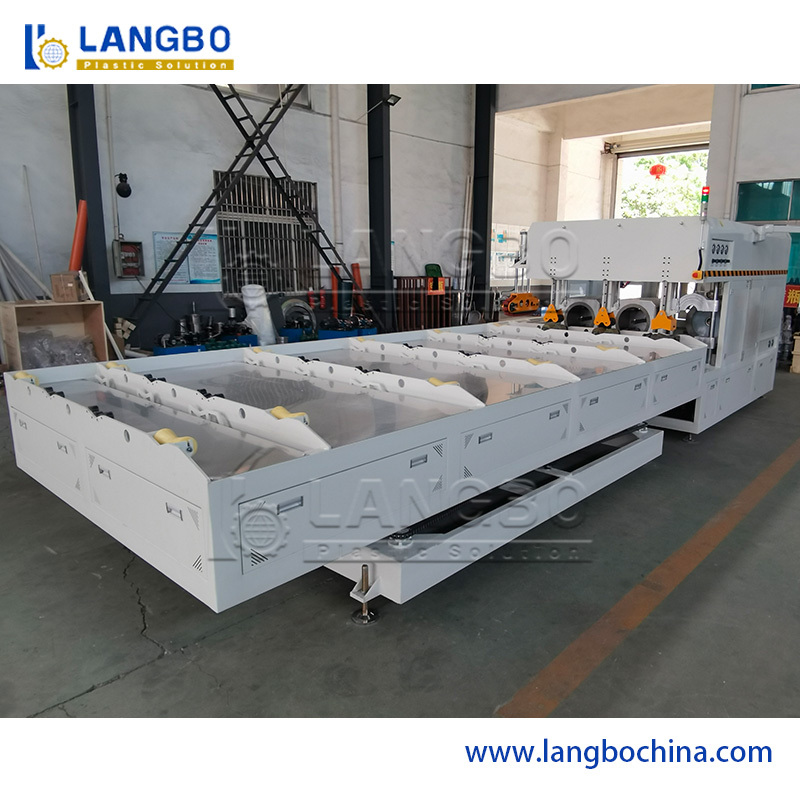

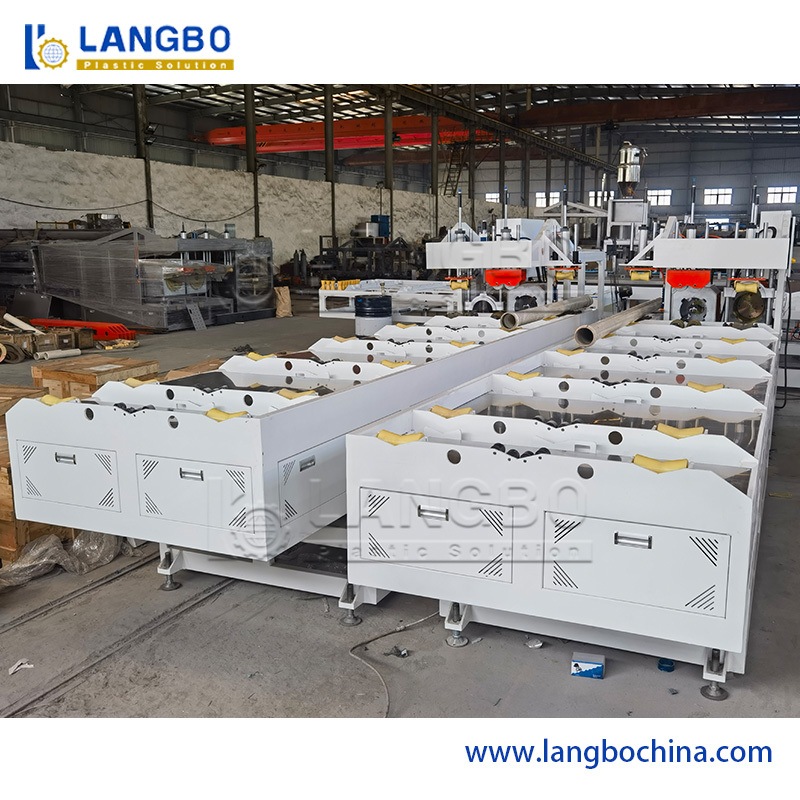

Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption
Product Details
| Model: | SGK | Usage: | Plastic Belling |
|---|---|---|---|
| Belling Range: | 16~630mm | Type: | Pvc Pipe Automatic Plastic Belling Machine |
| PIPE COLOUR: | WHITE, ORANGE, BLANK | Central Height: | According To Customer's Request |
| Highlight |
pipe expander machine,pvc pipe socketing machine |
||
Product Description

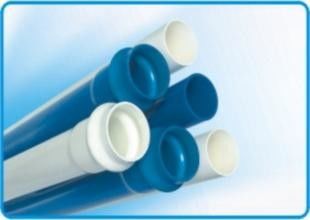

- Designed for plastic pipe belling of PVC, PE, and PP-R pipes
- Essential auxiliary machine for pipe extrusion lines
- Can operate independently or integrate with extrusion lines
- Full-automatic control system
- Low energy consumption operation
- CE approved for quality assurance

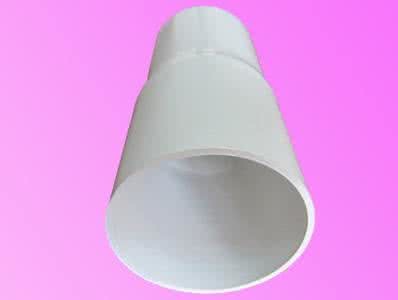

Belling Types: R-type, U-type
Pipe Length: 3m-8m
Voltage: AC 380V; 50Hz (Customizable)
Central Height: Customizable per customer requirements
Cooling Mode: Air-cooled or Water cooled
| Model | Pipe Diameter | Heating Method | Belling Method | Heating Power | Dimension |
|---|---|---|---|---|---|
| SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
| SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
| SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
| SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
| SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
| SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
Product Highlights
Automatic PVC Pipe Belling Machine Full automatic control plastic pipe belling machine with low energy consumption for PVC, PE, and PP-R pipes. Key Features Designed for plastic pipe belling of PVC, PE, and PP-R pipes Essential auxiliary machine for pipe extrusion lines Can operate independently or ...
