SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Highlight |
pvc compounding mixer,plastic mixer machine |
||
Product Description
Heating High Speed Mixer/ PVC Mixer Machine/plastic mixing machine
Introduction of PVC mixer machine:
PVC mixer machine is important for production of PVC product, widely used for PVC board, pipe, profiles, sheet and so on. According to your demand, it can be equipped with inverter driving with features of low starting currency, power saving. Also can be equipped with material pouring pin, vacuum loader, dust collector, silo etc to improve automatic level and reduce dust pollution.

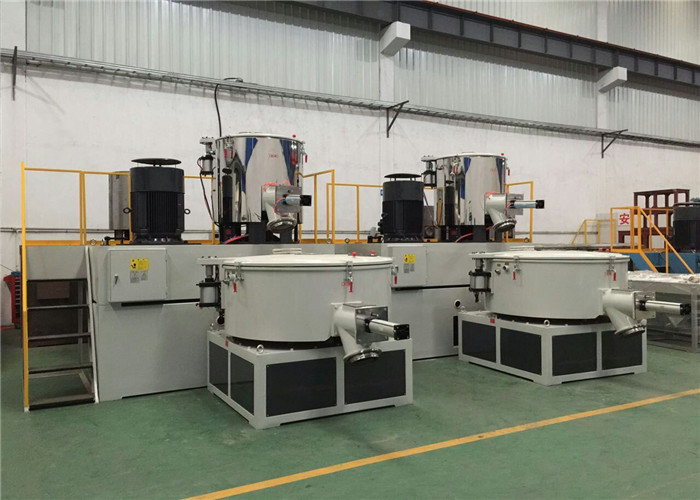

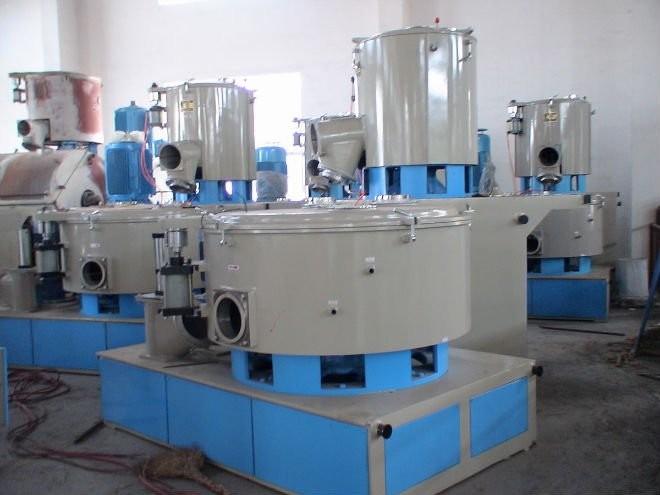

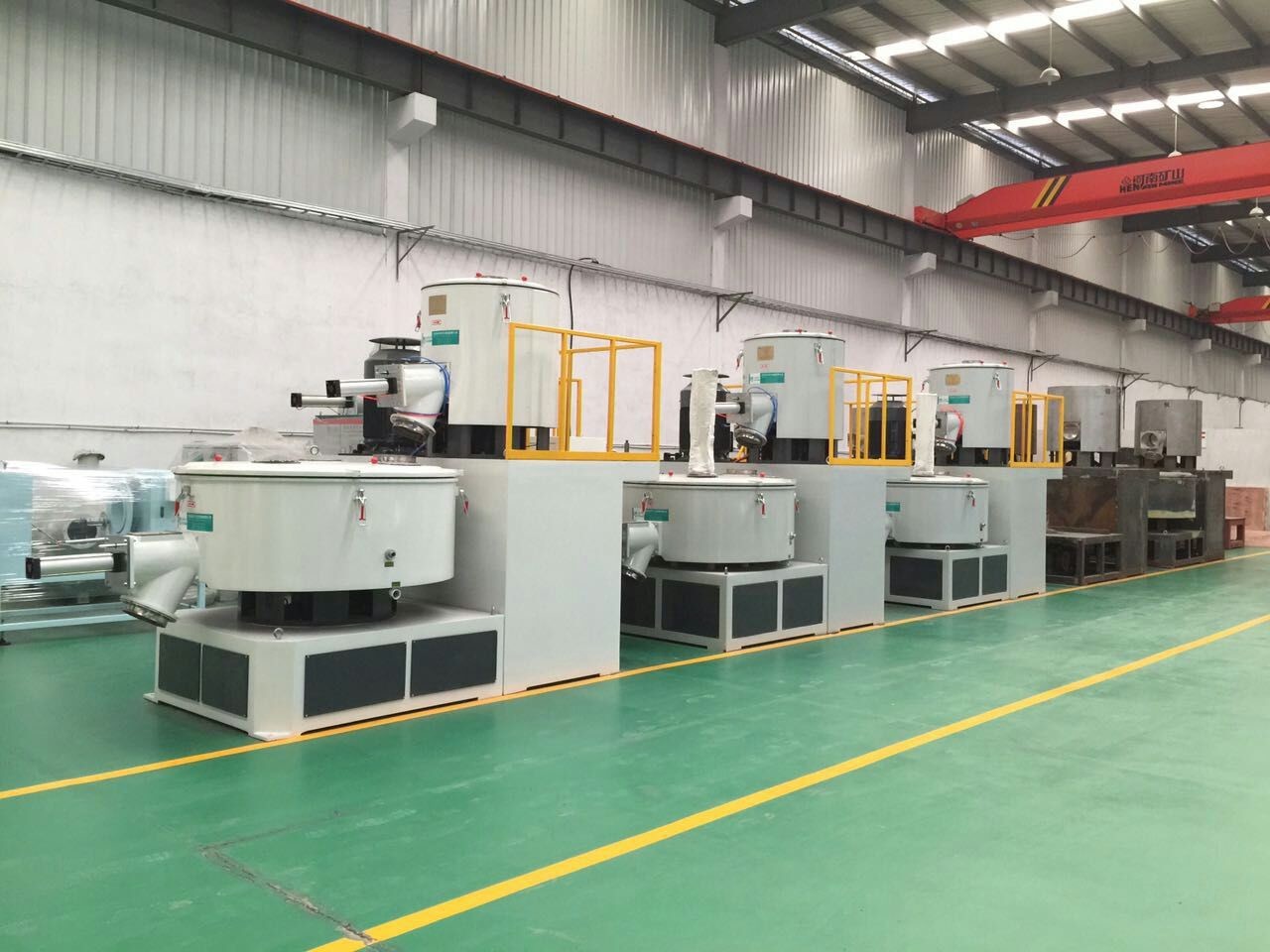

It composed mainly by hot mixer and cooling mixer. the hot mixer will heat the material to 110C, at this temperature, the additives will be mixed fully and re-act each other which is necessary for extrusion stage, the cooling mixer will cool down the mixture to 45C to avoid material decomposition.
Main features of PVC high speed mixer:
* motor adopts Dazhong brand from public listed company with high quality, high efficiency and durable
* Oil seal adopts imported UKS seal from Germany, make sure no oil leakage.
* mixer barrel wall adopts 6mm stainless steel, thicker than others which mostly is 4mm.
* base top adopts 20mm steel plate, stronger and durable.
* adopts hardened gearbox, stronger and durable. Better than cycloidal-pin wheel gearbox.
* flange of mixer barrel adopts stainless steel but not chrome plated iron.
* main shaft, mixing paddle, belt pulley are processed on 3500r/min dynamic balance machine to ensure stable rotating when mixing material without shaking.
Main models of pvc mixer machine:
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 |
| Total capicity(L) | 100/200 | 200/500 | 300/600 | 500/1000 |
| Mixing capicity(kg/h) | 165 | 325 | 500 | 750 |
| MOtor power(kw) | 14/22/7.5 | 30/42/11 | 40/50/15 | 47/67/15 |
| Paddle speed(r/min) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 |
| SRL-Z800/1600 | SRL-Z800/2500 | SRL-Z1000/3000 | SRL-Z1300/4500 |
| 800/1600 | 800/2500 | 1000/3000 | 1300/4500 |
| 1400 | 1400 | 1900 | 2500 |
| 60/90/18.5 | 80/110/30 | 110/160/37 | 132/200/45 |
| 370/740/50 | 370/740/50 | 325/650/50 | 250/500/50 |
