Rubber / Plastic Raw Material Mixer , Elctric Self Friction High Speed Plastic Mixers
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| Voltage: | 380v/50hz/3phase | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SHR-PVC Heating Mixer | Power(W): | 40/50KW |
| Highlight |
pvc compounding mixer,plastic mixer machine |
||
Product Description

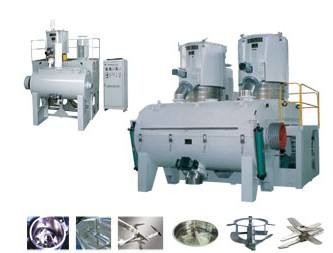

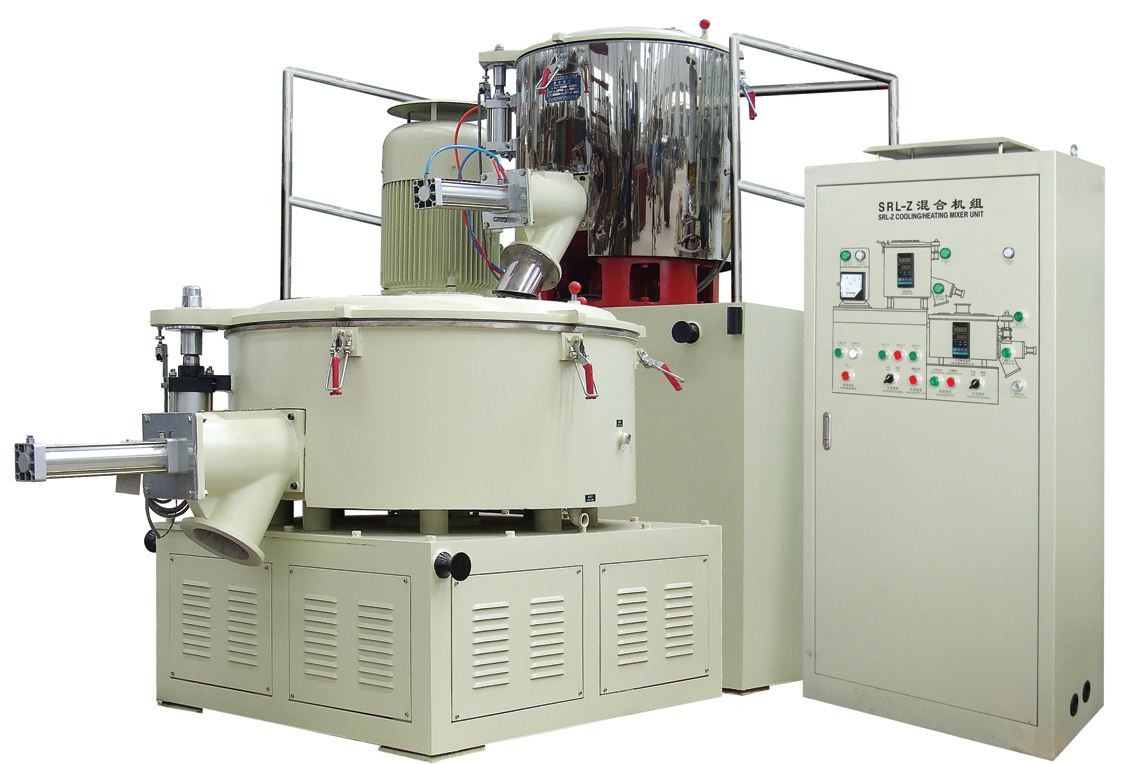

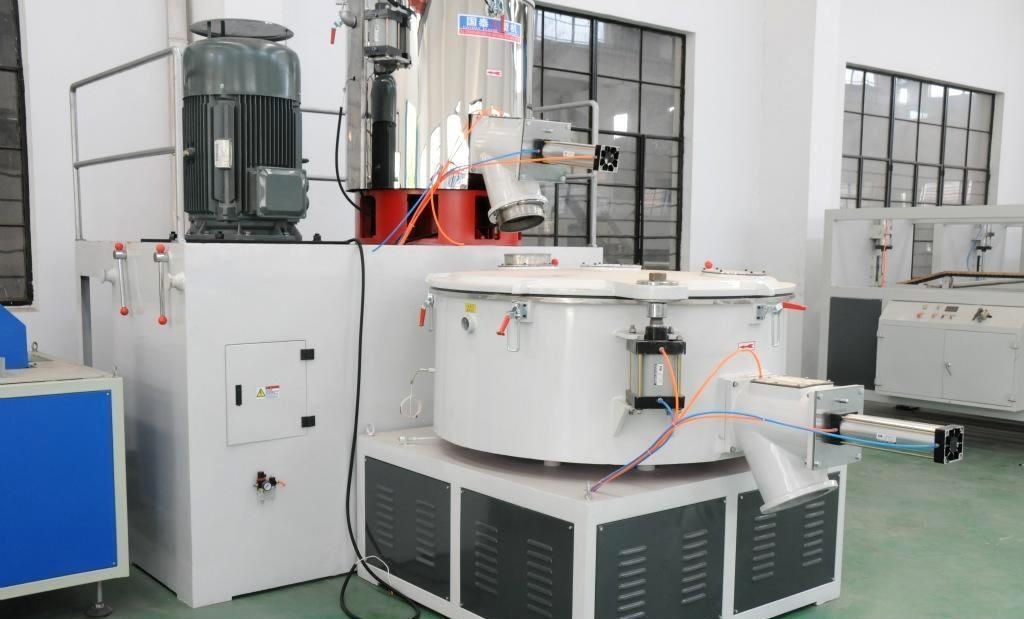

High Speed Mixer/ PVC Mixer Machine/ Plastic Color Mixing Machine
Introduction
Developed on the basis of advanced technique, the SRL-Z series mixer is mainly used for drying, dewatering and mixing before WPC production. The spindle is with good sealing without material leakage. The heating mixer has the heating fuction of self-friction electric heating. The pot cover is adopted double-sealing layer. The cooling mixer is also adopted arched pot cover and specially-designed blade, which had been passed the test of static balance and dynamic balance. Combined with the heating mixing technique and cooling mixing technique, the SRL-Z mixer is the ideal processing equipment in WPC production. The material after being heat-mixed would go into cooling mixer automatically, then the air would be exhausted and the material wouldn't be blocked.
SHRL high-speed hot and cold mixing machine is developed on the basis of digestion and absorption of overseas advanced technology, and it is mainly used for material-prescribing, mixing, coloring and desiccating various kinds of resin and PE, PP, PVC, etc. And it is also capable of desiccating plastic of ABS and polycarbonate and so forth.
Combining technics of hot mixing with cool mixing, this unit ensures that the material automatically goes into the cold mixing stage after being hot mixed, and it can remove residual gas, meanwhile preventing the material from agglomerating.
Our Services
1. We will provice the Feasibility Analysis Report for the wood-plastic project.
2. We will provide the model selection and technical parameter for wood-plastic machinery.
3. We will provide the design for the plant and electric power accounting for the facilities.
4. We will provide the design for wood-plastic formular acording to the product requirements.
5. We will provide the technology of wood-plastic product surface treatment.
6. We will provide technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test the machine for free.
9. We will provideturnkey project to customers.
Service before order
1. Supply the Turnkey Project, including the machine layout and workshop layout.
2. Supply the Free samples for reference and check.
3. We produce the spiral/corrugated pipe mould by factory, we can produce different size of mould as for your drawing.
Service after order
a. Test the machine before delivery freely.
b. Engineers to go to install and test the machine in customers' factory.
Product Highlights
