ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine
Product Details
| Extruder Power (kw): | 90KW | Screw Design: | Double-screw |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | PPRC PIPE |
| MARK LINE: | SINGLE SCREW EXTRUDER | SCREW DIAMETER: | 65/33:1 |
| Highlight |
ppr pipe production line,pp pipe extrusion line |
||
Product Description

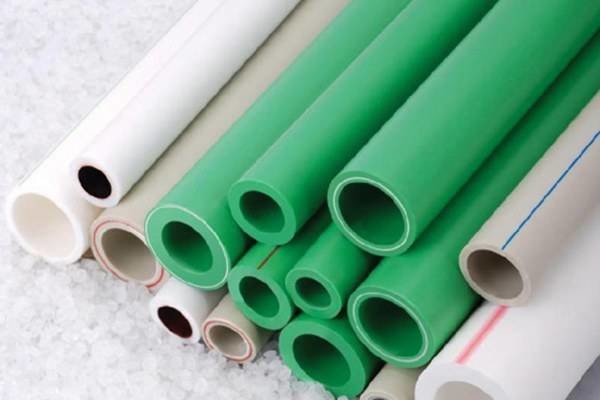

PP-R, PE Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.

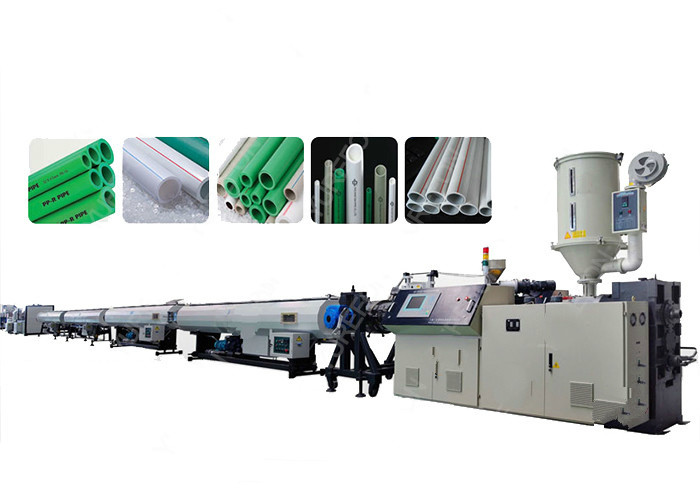

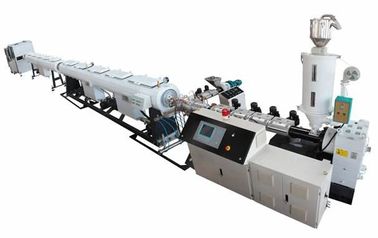

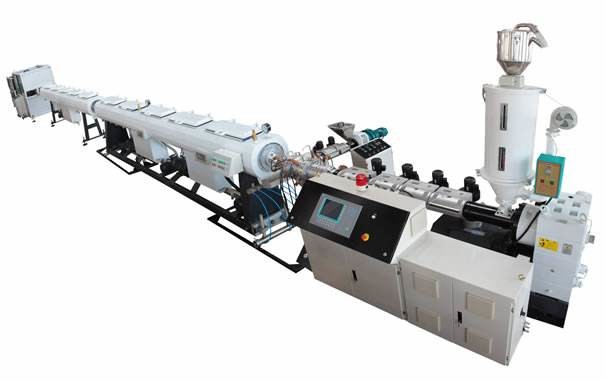

This production line is developed by our company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc. therefore, it is the first-rate equipment in the plastic machinery industry. Meanwhile, this production line is suitable to produce the PP-C, PE-X cross-link pipe and the polyolefin pipes. Our company will offer formula, crafts and turn-key project.
Main technical parameter:
| Model number | 16/63 | 20/110 | 50/160 | 75/250 | 110/315 | 200/450 | 315/630 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min |
| Extruder model | SJSZ-50/105 | SJSZ-50/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 | SJSZ-92/188 |
| Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m |
