Product Details:
|
| Condition: | New | Screw Design: | Single-screw |
|---|---|---|---|

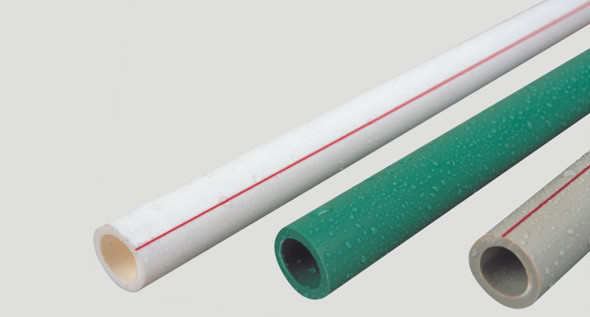

| COLOUR: | BLACK, ORANGE | APPLICATION: | PPRC PIPE |
| Power(W): | 104-150KW | Weight: | 6000-12000Kg |
| High Light: | ppr pipe production line,pp pipe extrusion line |
||

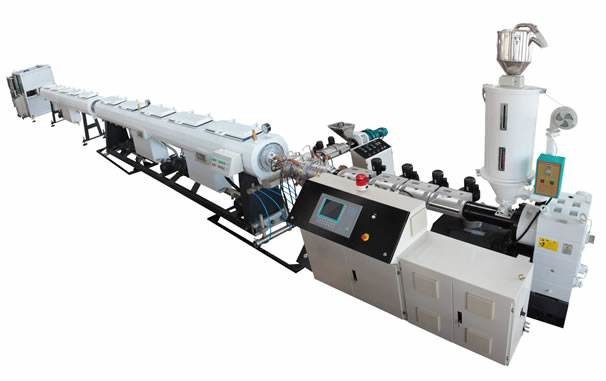

1. Vacuum feeding
2. Hopper dryer
3. Single screw extruder
4. Color string extruder
5. Co-extrusion mould
6. Calibrator
7. Spray vacuum calibration tank
8. Spray cooling water tank
9. Haul-off machine
10. No dust cutter
11. Pipe Stacker for package.
1) High output, can be improved 30-50% at the same main motor power condition.
2) High production line speed, for Φ20mm pipe can be 35m/min.
3) Haul-off machine and cutter can be servo control.
4) Optional equipment automatic weighing measurement and thickness control system.
|

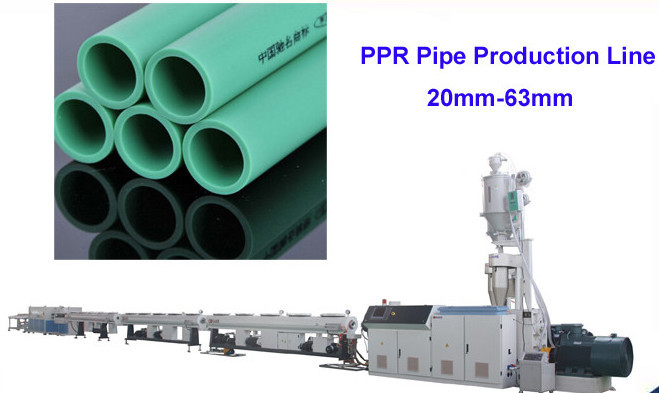

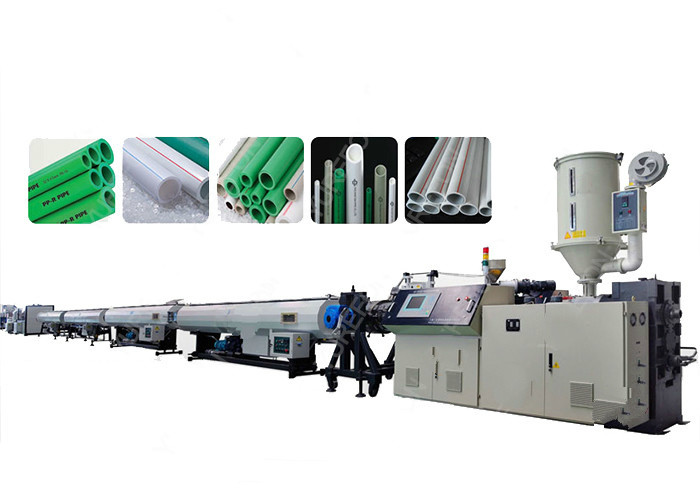

SPECIFICATIONS FOR PP/PPR PIPE EXTRUSION LINE
|
||||
|
Model
|
Pipe spec(mm)
|
Extruder
|
Max.output
(kg/h)
|
Main motor power(KW)
|
|
GW63-PPR
|
Φ16-Φ63
|
GW65/33
|
120-200
|
104
|
|
GW110-PPR
|
Φ50-Φ110
|
GW65/33
|
150-200
|
146
|
|
GWG160-PPR
|
Φ75-Φ160
|
GW65/33
|
200-250
|
176
|
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the diameter of pipe(inch or mm); thickness of pipe wall(mm)
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
