Heat Resistant Plastic Recycling Line Smart PLC Control System Easy Operation
Product Details
| RAW MATERIAL: | PP/PE RIGID & FILM WASTES | Voltage: | WANROOETECH |
|---|---|---|---|
| OPERATION: | AUTOMATIC | Function: | Crushing, Washing, Drying And Granulating |
| Warranty: | 1year | Production Capacity: | 100-3000kg/h |
| Highlight |
plastic waste recycling machine,plastic recycling plant machinery |
||
Product Description

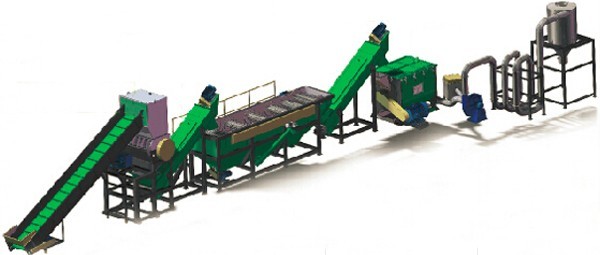

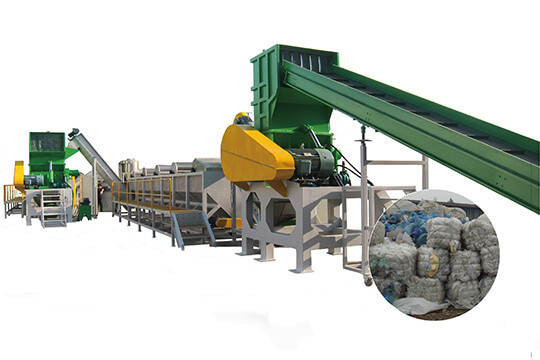

Plastic Recycling Plant/Plastic recycling machine/PP PE Washing Line
Product Description:

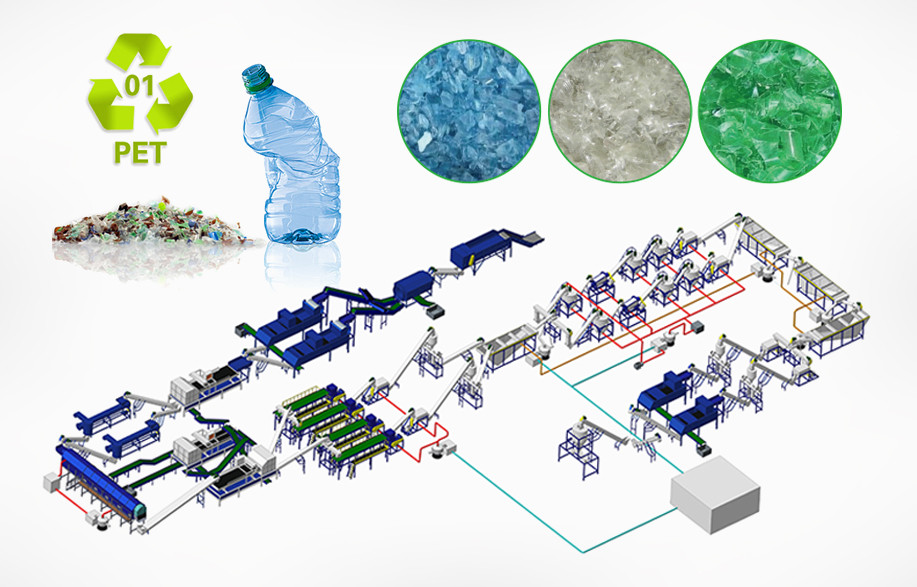

The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. This is an export commodity which can be sold and used for many creative applications. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 100kg to 3000kg per hour.
Features:
1. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.
2. Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 and touch screen panel, easy for operation, monitor and emergency stop.
4. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.

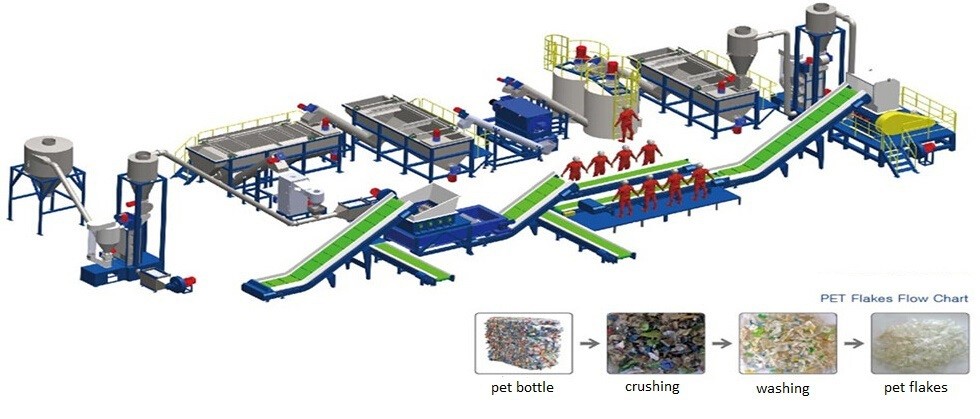

System Configuration:
| No. | Machine Name | Note |
| 1 | Bale breaker | Custom |
| 2 | Belt Conveyor | PVC Belt |
| 3 | Metal detector | Custom |
| 4 | Label Remover | Remove the label from the bottles. |
| 5 | Manual Sorting Belt | Custom,PVC Belt |
| 6 | Belt Conveyor | PVC Belt |
| 7 | Crusher | Blade metal:alloy(9CrSi or SKD-II) |
| 8 | Screw Loader | Made of Stainless steel |
| 9 | Hot Washer | Made of Stainless steel ,can put some soda |
| 10 | High-speed Friction Washer |
Made of Stainless steel |
| 11 | Sink-Float Tank | Single-screw or Two-screw |
| 12 | Dewatering Machine | Vertical or Horizontal |
| 13 | Drying system | Made of Stainless steel |
| 14 | Storage hopper | Normally 1000L |
| 15 | Flakes Pneumatic Separating Machine | New style label remover for flakes |
| 16 | Electrical Control Cabinet |
DELIXI Schneider ABB |
Technical Parameters
| Model | Material | Install Power | Capacity | Water Consumption | End Products Humidity |
| PNQX-PET300 | PET,PS,PC,ABS | 100kw | 300kg/h | 4-6litres/kg | <=3% |
| PNQX-PET500 | PET,PS,PC,ABS | 150kw | 500kg/h | 3-6litres/kg | <=3% |
| PNQX-PET800 | PET,PS,PC,ABS | 200kw | 800kg/h | 3-5litres/kg | <=3% |
| PNQX-PET1000 | PET,PS,PC,ABS | 280kw | 1,000kg/h | 2-3litres/kg | <=3% |
| PNQX-PET1500 | PET,PS,PC,ABS | 350kw | 1.5Tons | 2-3litres/kg | <=3% |
| PNQX-PET2000 | PET,PS,PC,ABS | 400kw | 2Tons | 2-3litres/kg | <=3% |
| PNQX-PET3000 | PET,PS,PC,ABS | 500kw | 3Tons | 2-3litres/kg | <=3% |
