Product Details:
|
| Model Number: | SJ120EVA-A | Condition: | New |
|---|---|---|---|
| Main Motor Power: | 45KW | OPERATION: | FULL AUTOMATIC |
| FEEDING WSAY: | BUILT-IN AGGLOMERATOR | CUTTING WAY: | DIE FACE CUTTING |
| High Light: | waste plastic recycling pelletizing machine,plastic recycling granulator machine |
||

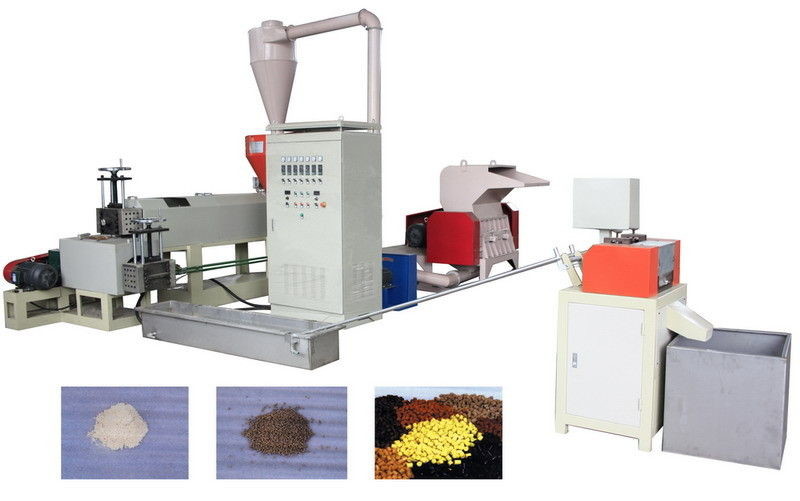

This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.
Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final products.
|
SJΦ120 EVA Air Cooling Granule Line
|
|||
|
No.
|
Item
|
Description
|
Specification
|
|
1
|
Kneader(optional)
|
Model
|
X(S)N-55L
|
|
|
|
Capacity
|
55L
|
|
|
|
Actuating motor power
|
75kw
|
|
2
|
Bucket conveyer for EVA
|
Material
|
Stainless
|
|
|
|
Motor Power
|
1.5kw
|
|
|
|
Bucket dimension
|
700*600*300mm
|
|
3
|
Mixing roller(optional)
|
Model
|
XK-400
|
|
|
|
Diameter of roller
|
400mm
|
|
|
|
Main motor power
|
45kw
|
|
4
|
Main extruder
|
Screw dia
|
Φ120mm
|
|
|
|
Screw Speed
|
0-50r/min
|
|
|
|
Main motor power
|
45kw (all with inverter)
|
|
|
|
Feeder motor power
|
4kw (all with inverter)
|
|
|
|
Cutter motor power
|
2.2kw
|
|
|
|
Heat power
|
10kw
|
|
|
|
Gear box
|
oil bath lubrication,hardened gear reducer
|
|
|
|
Cutting system
|
air cooling
|
|
|
|
Auto thermo control
|
5 zones
|
|
|
|
Screw/barrel material
|
38CrMoAIA
|
|
|
|
Barrel cooling system
|
water cooling
|
|
|
|
Granule diameter
|
3-5mm
|
|
|
|
Overall dimension (L*W*H)
|
4250*1850*1700mm
|
|
|
|
Weight
|
2400kg
|
|
5
|
Whirlwind cooler
|
a. Cooling tank diameter
|
Φ650*1set
|
|
|
|
b. Cooling tank diameter
|
Φ850*2sets
|
|
6
|
Cooling conveyer
|
Length and width
|
4200*610mm
|
|
|
|
Thermal Design Power
|
4.5kw
|
|
|
|
Material
|
Stainless
|
|
7
|
Blender
|
Capacity
|
1000L
|
|
|
|
Spindle speed
|
10r/min
|
|
|
|
Motor power
|
11-4kw
|
|
8
|
Air machine
|
Motor power
|
3.0kw
|
|
|
|
Screw speed
|
2880r/min
|
|
9
|
Air machine
|
Motor power
|
4.0kw
|
|
|
|
Screw speed
|
2880r/min
|
