Product Details:
|
| Final Product: | PVC Productions | Main Electrical Part: | Siemens Schneider |
|---|---|---|---|
| Model Number: | SJSZ51/105 65/1132 80/156 | Condition: | New |
| Screw Design: | Twin Screw | Automatic Grade: | Semi-automatic |
| High Light: | twin screw extruder machine,double screw extruder machine |
||

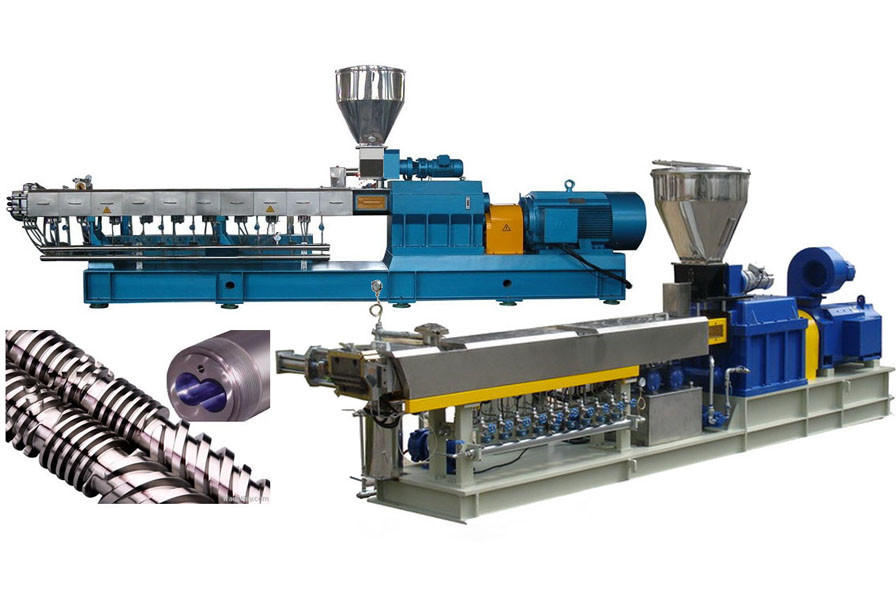

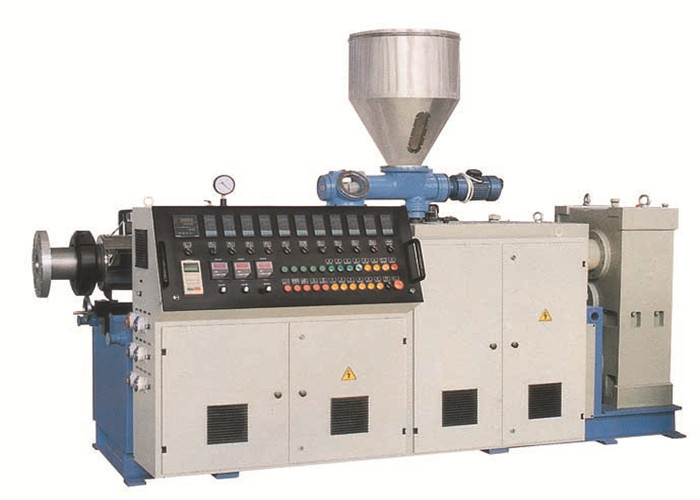

High Capacity Less Energy Comsuption Machine PVC UPVC Plastic Conical Twin Screw extruder
Description of PVC Extruder:
1. This machine With PLC Control system in the production line, reliable and stable performance.
2. The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker.
3. The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.
4. The hall-off unit is caterpillar style. The lower one is fixed and the upper one can be adjusted according to the plate size.
5. The cutting machine is able to set length and provide accurate automatic cutting.
6. The stacker is attached with material cart and rubber protection layer to prevent products from damage, and easy operation.
Process Flow of PVC extrusion line:
Raw material + additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Raw materials for PVC Pipe and Profile:
PVC + calcium + other additives.
PVC high chemical stability,panels can be used for a long time.
Technical info:
| No. | Name | Brand | |

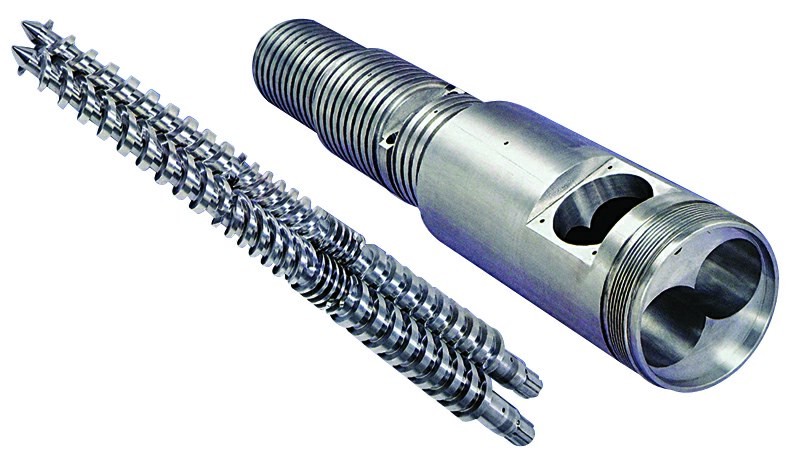

| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. |
||
| For more technical information please contact us by email. | |||
